Front Power Window Motor (Driver Side) Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
    1. Turn igniting switch ON.
    2. Check voltage between power window main switch connector D6 terminals 8,11 and ground.
      CONNECTOR, TERMINALS CONDITION AND VOLTAGE SPECIFICATION

      Connector Terminals (Wire color) Condition Voltage (V) (Approx.)
      (+) (-)
      D6 8 (G/R) Ground Closing Battery voltage
      Opening 0
      11 (G/W) Closing 0
      Opening Battery voltage

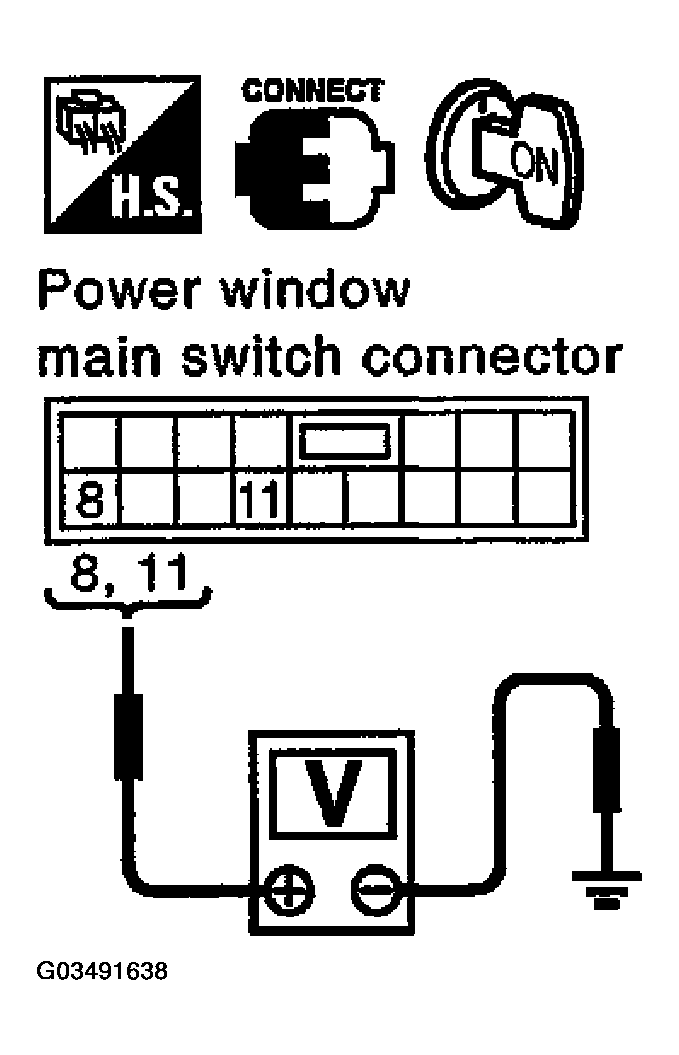

      Fig 1: Checking Voltage Between Power Window Main Switch Connector D6 Terminals 8,11 And Ground
      G03491638Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 2.
    2. NG: Replace power window main switch.
  2. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect power window main switch and front power window motor (driver side) connector.
    3. Check continuity between power window main switch connector D6 terminal 8, 11 and front power window motor (driver side) connector D8 terminals 1, 2.

      8 (G/R) - 2 (G/R) Continuity should exist.

      11 (G/W) - 1 (G/W) Continuity should exist.

      Fig 2: Checking Continuity Between Power Window Main Switch Connector D6 Terminal 8, 11 And Front Power Window Motor (Driver Side) Connector D8 Terminals 1, 2
      G03491639Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: Replace front power window motor (driver side).
    2. NG: Repair or replace harness between power window main switch and front power window motor (driver side).
