Wiring Diagram - WINDOW -

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

For references to "PG-Power" in wiring diagrams, see POWER DISTRIBUTION in SYSTEM WIRING DIAGRAMS.

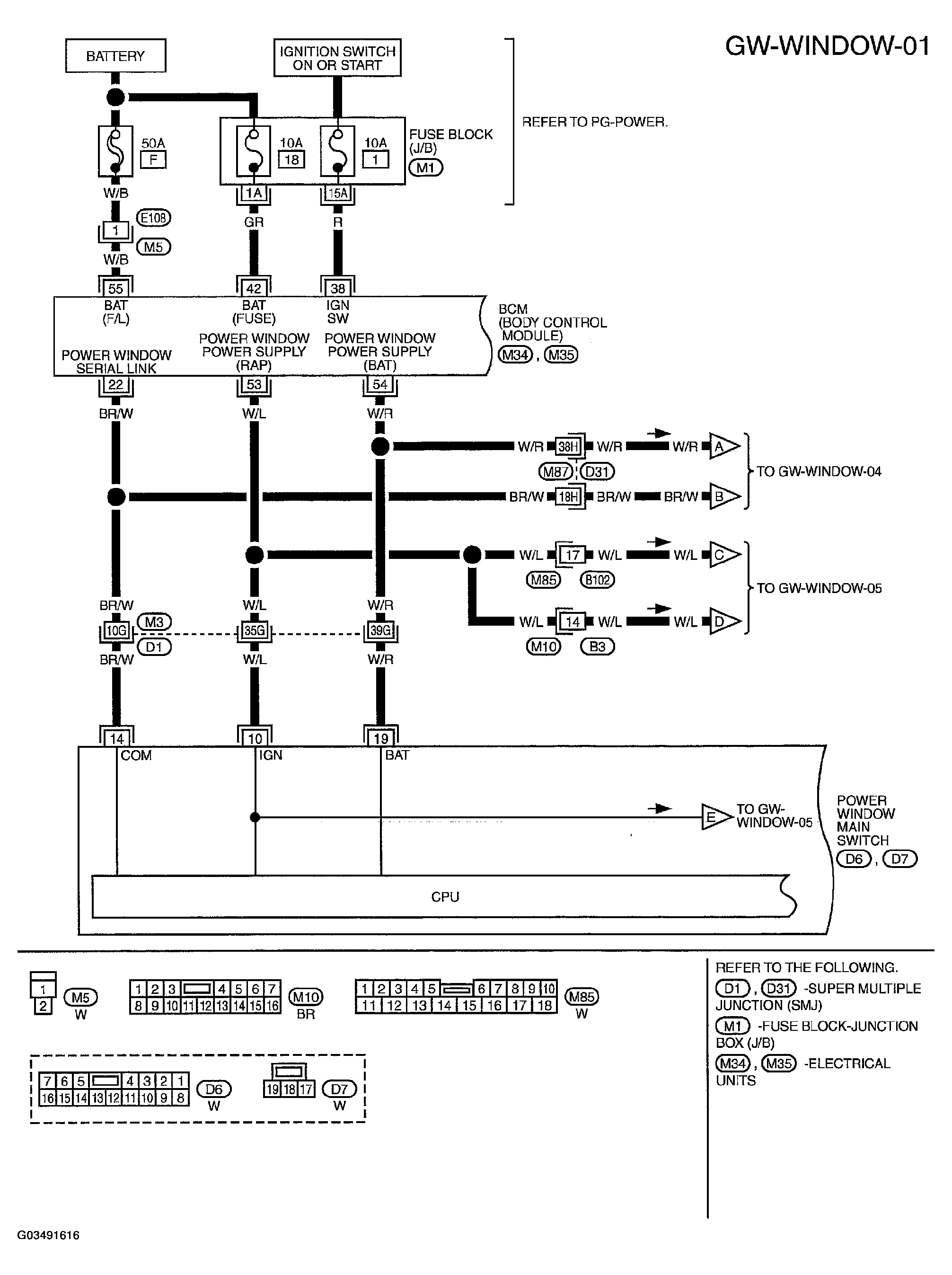

Fig 1: Wiring Diagram - Window - GW-WINDOW-01

G03491616

Courtesy of NISSAN MOTOR CO., U.S.A.

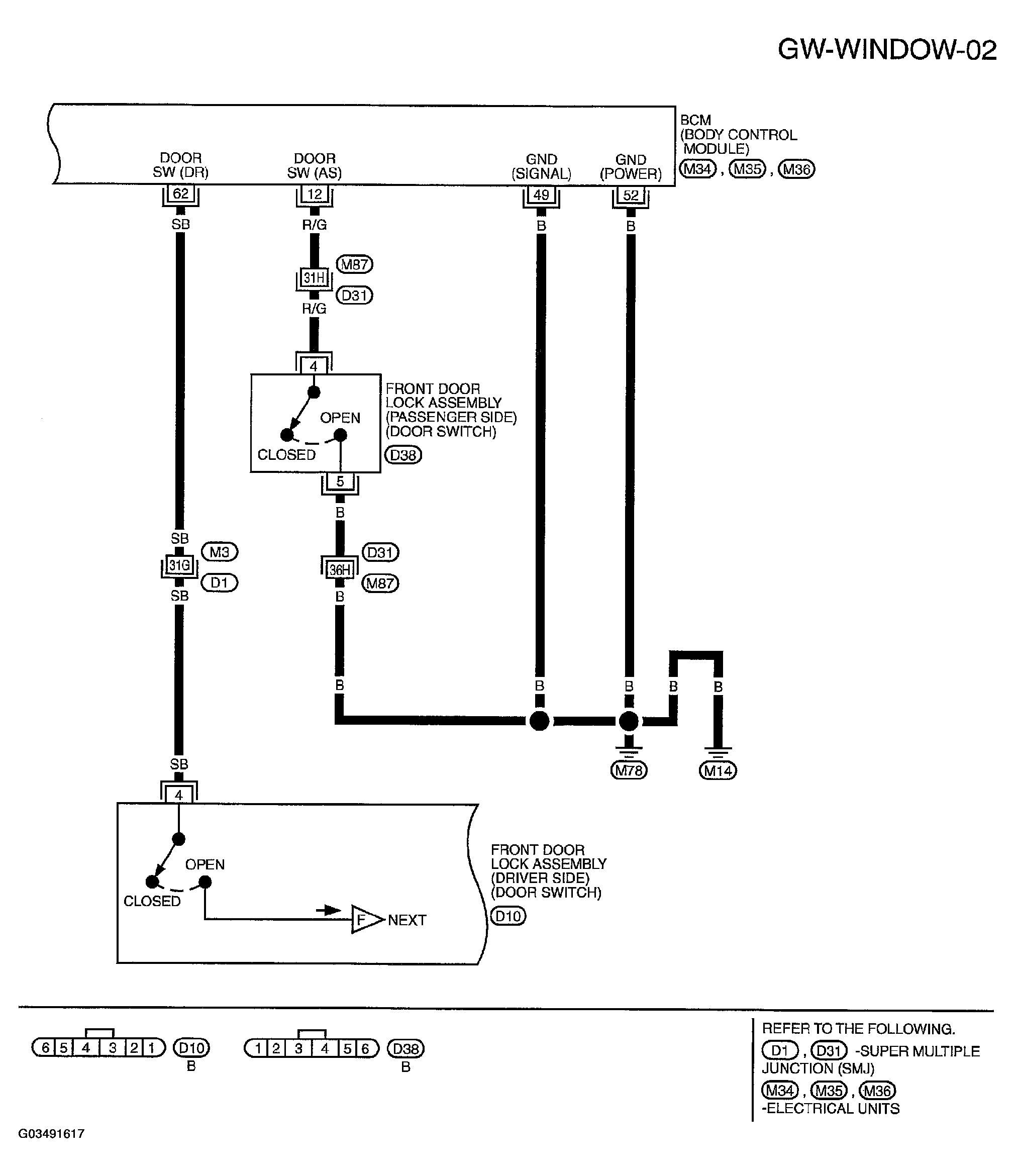

Fig 2: Wiring Diagram - Window - GW-WINDOW-02

G03491617

Courtesy of NISSAN MOTOR CO., U.S.A.

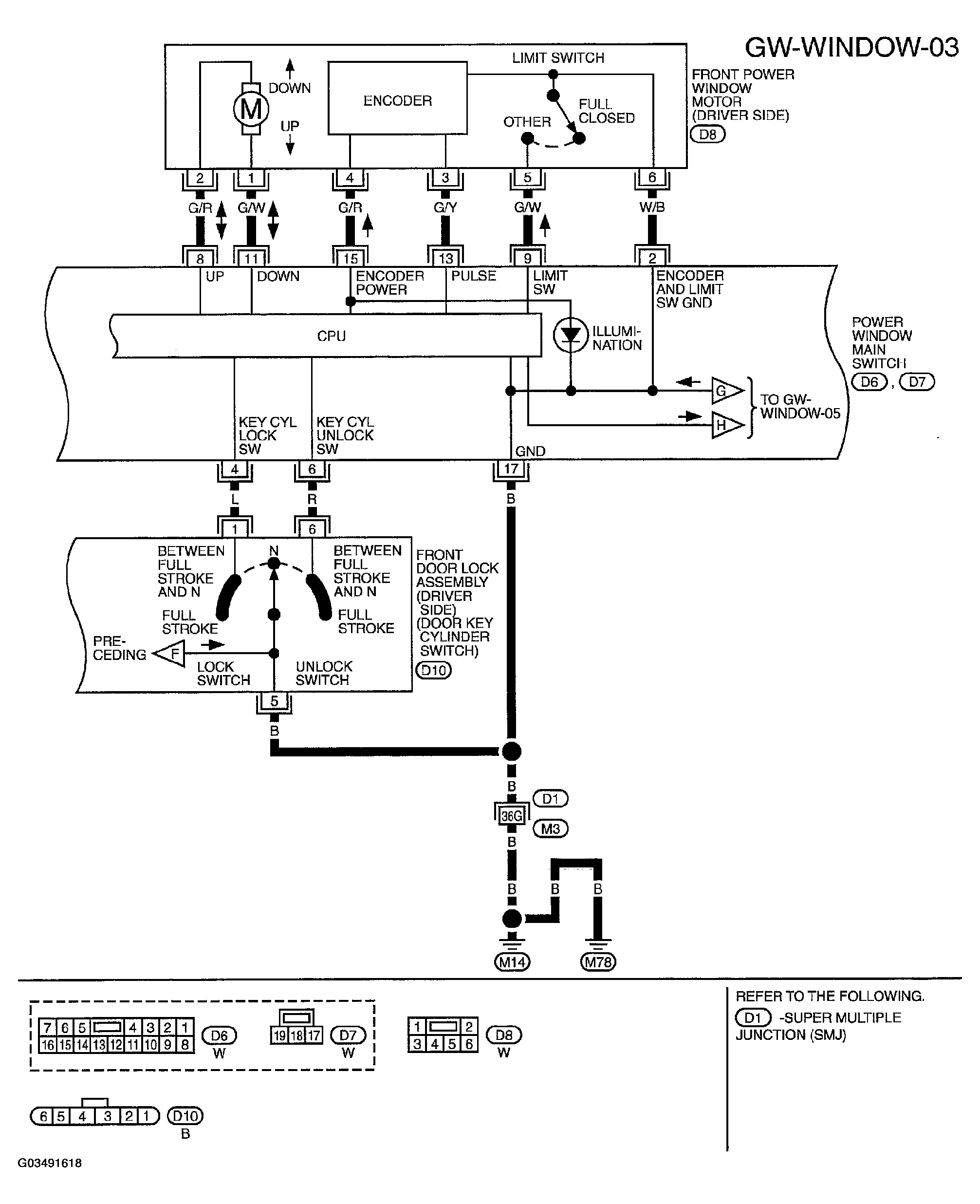

Fig 3: Wiring Diagram - Window - GW-WINDOW-03

G03491618

Courtesy of NISSAN MOTOR CO., U.S.A.

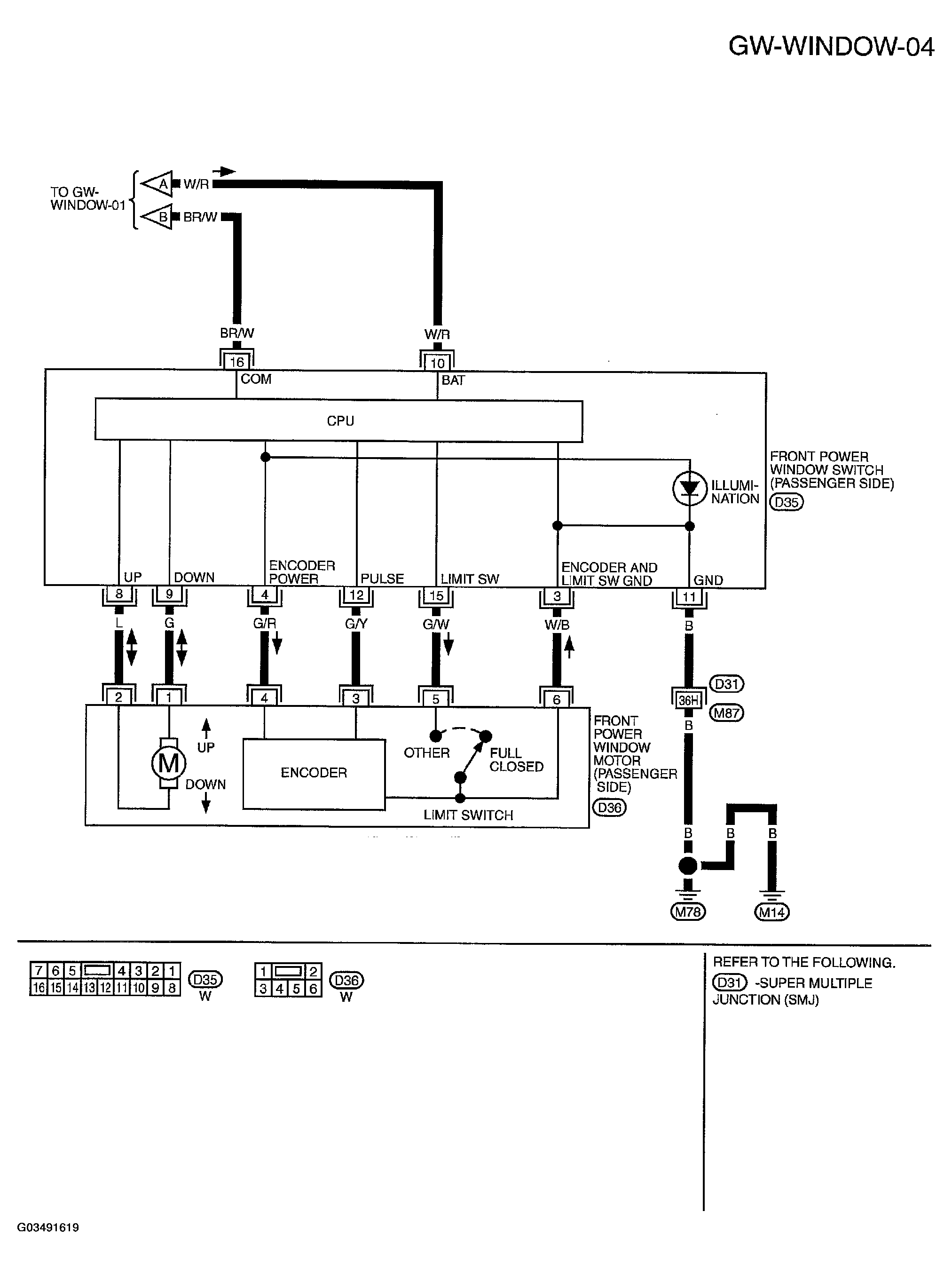

Fig 4: Wiring Diagram - Window - GW-WINDOW-04

G03491619

Courtesy of NISSAN MOTOR CO., U.S.A.

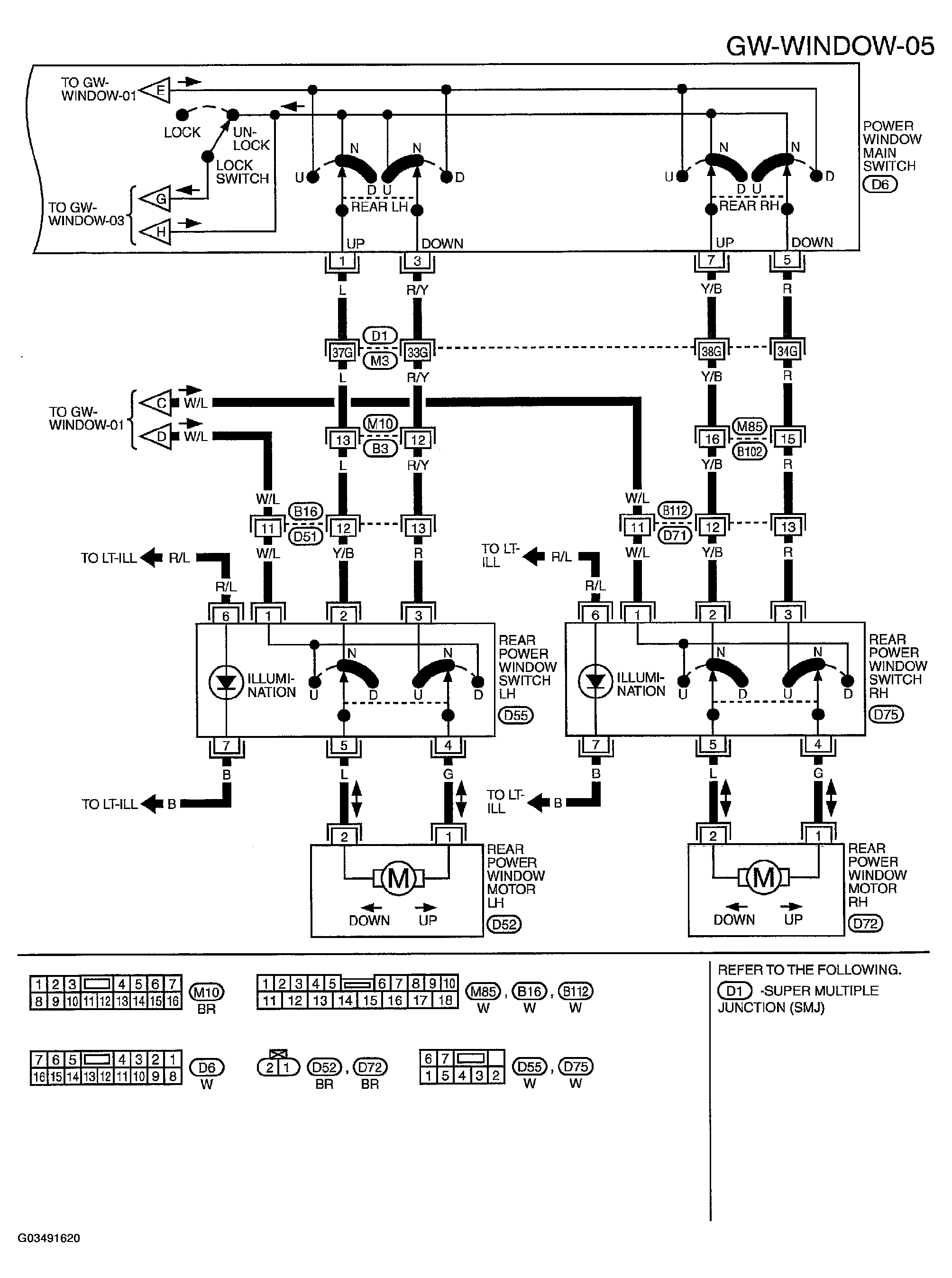

Fig 5: Wiring Diagram - Window - GW-WINDOW-05

G03491620

Courtesy of NISSAN MOTOR CO., U.S.A.
