Refrigerant Lines: Components

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Refer to "PRECAUTIONS FOR REFRIGERANT CONNECTION ".

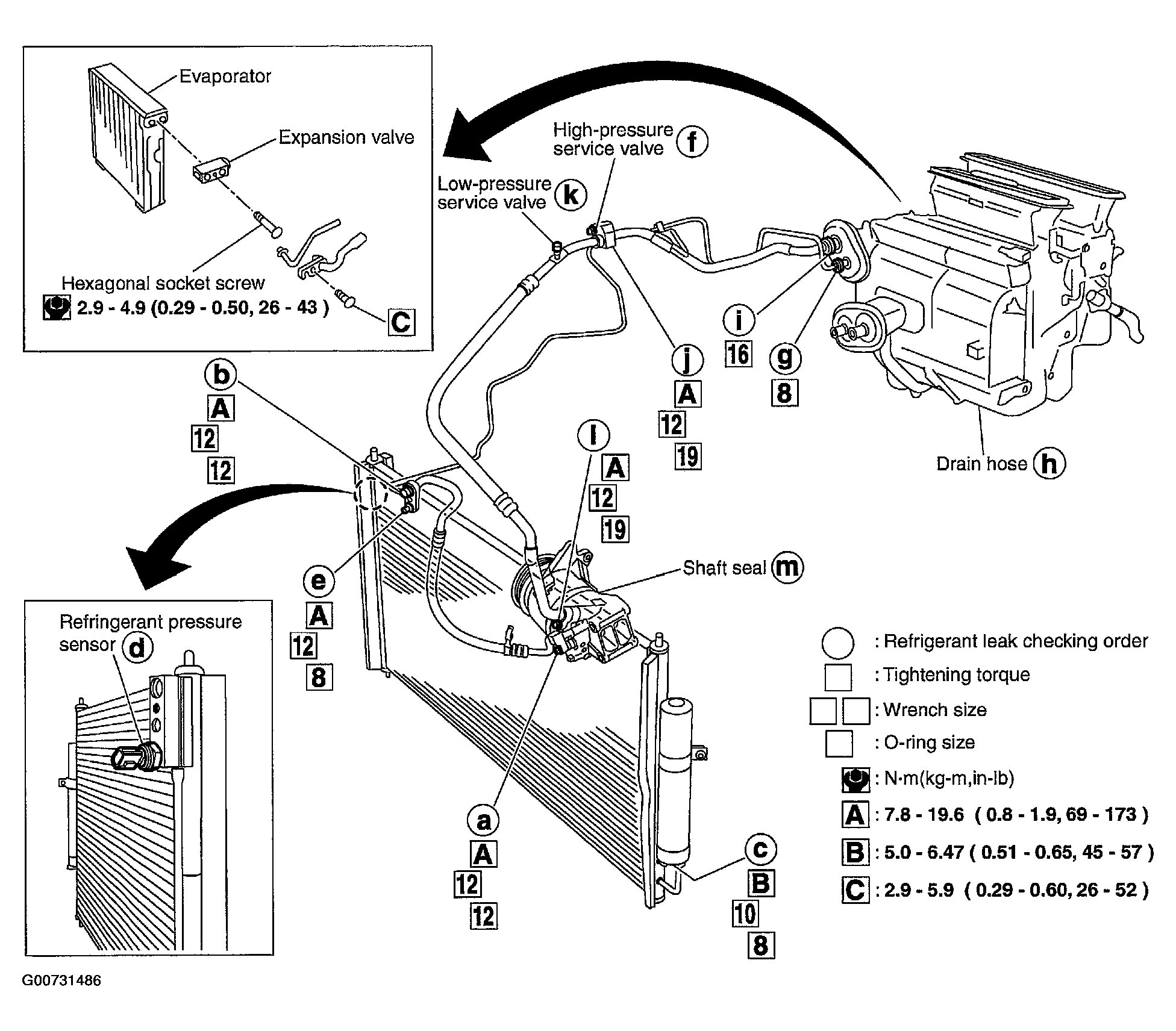

Fig 1: Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
