Connector Identification

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For connector views, see Fig 1.

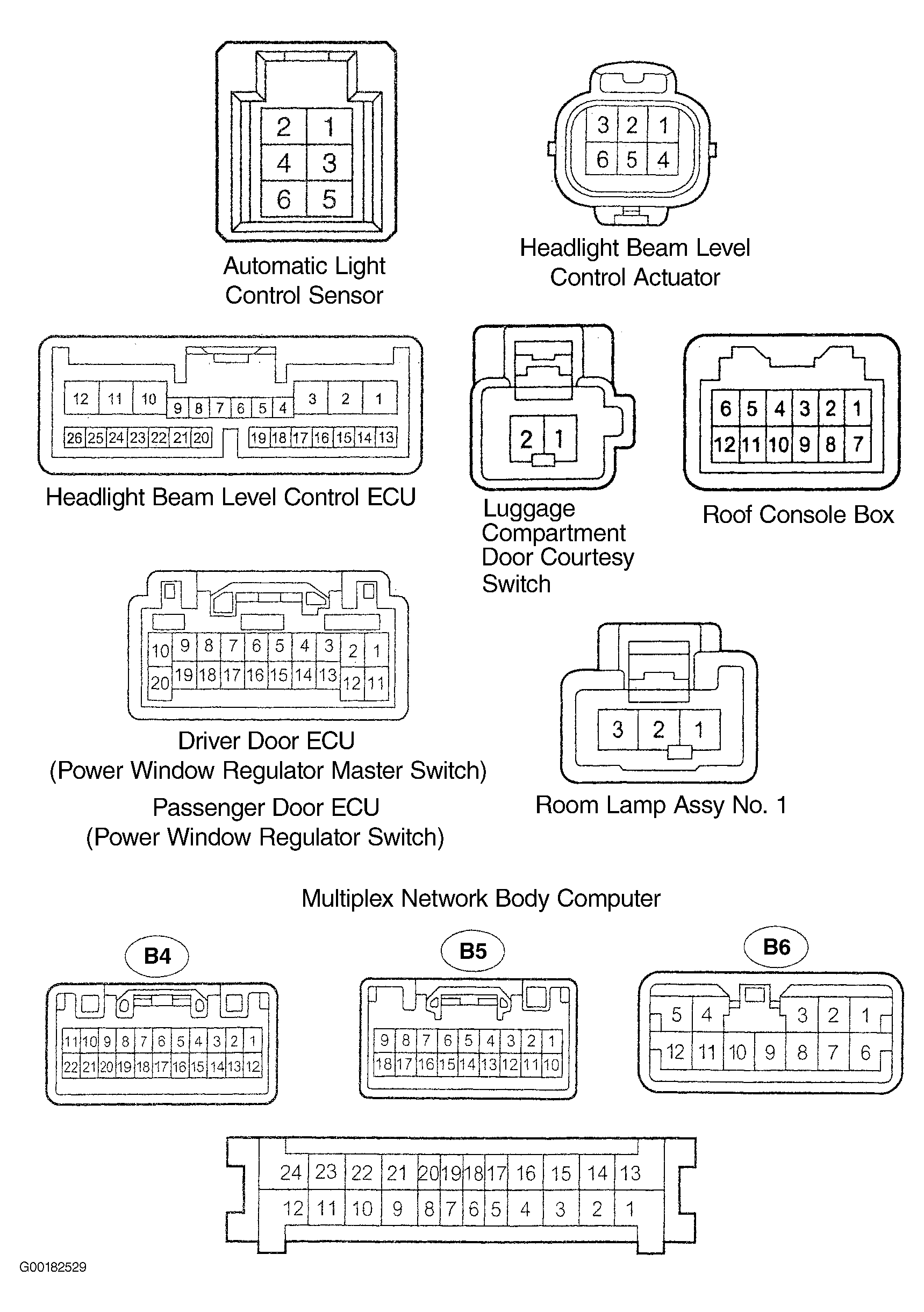

Fig 1: Identifying Lighting Connector Views
