Height Control Sensor: Removal
WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the connector.
- Align the matchmark with one on the right rear height control sensor sub-assembly and bracket.

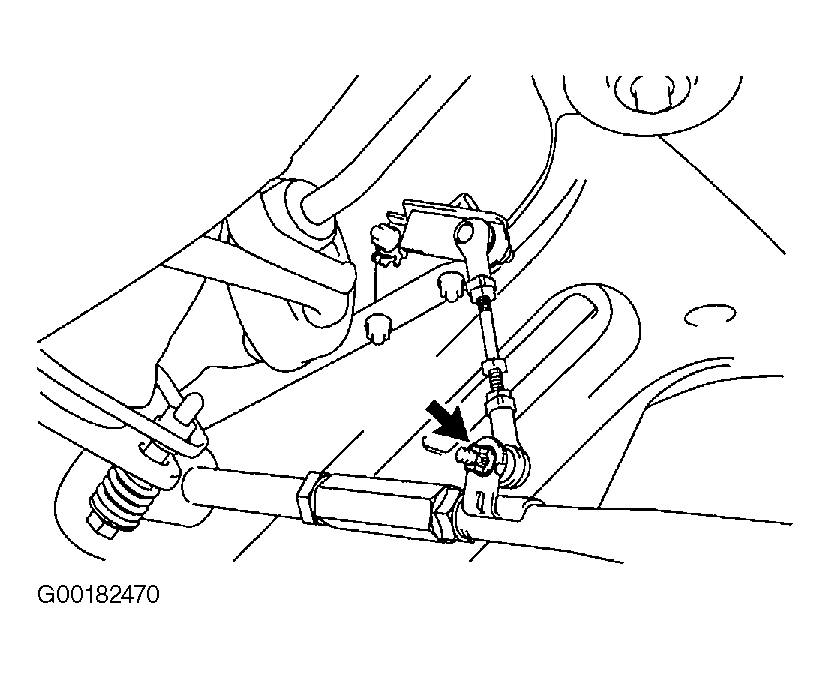

- Remove a nut. See Fig 1.
- Remove the 2 nuts and right rear height control sensor sub-assembly.
