Rear Propeller Shaft: Components

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Propeller Replacement Components With Torque Specifications (2WD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

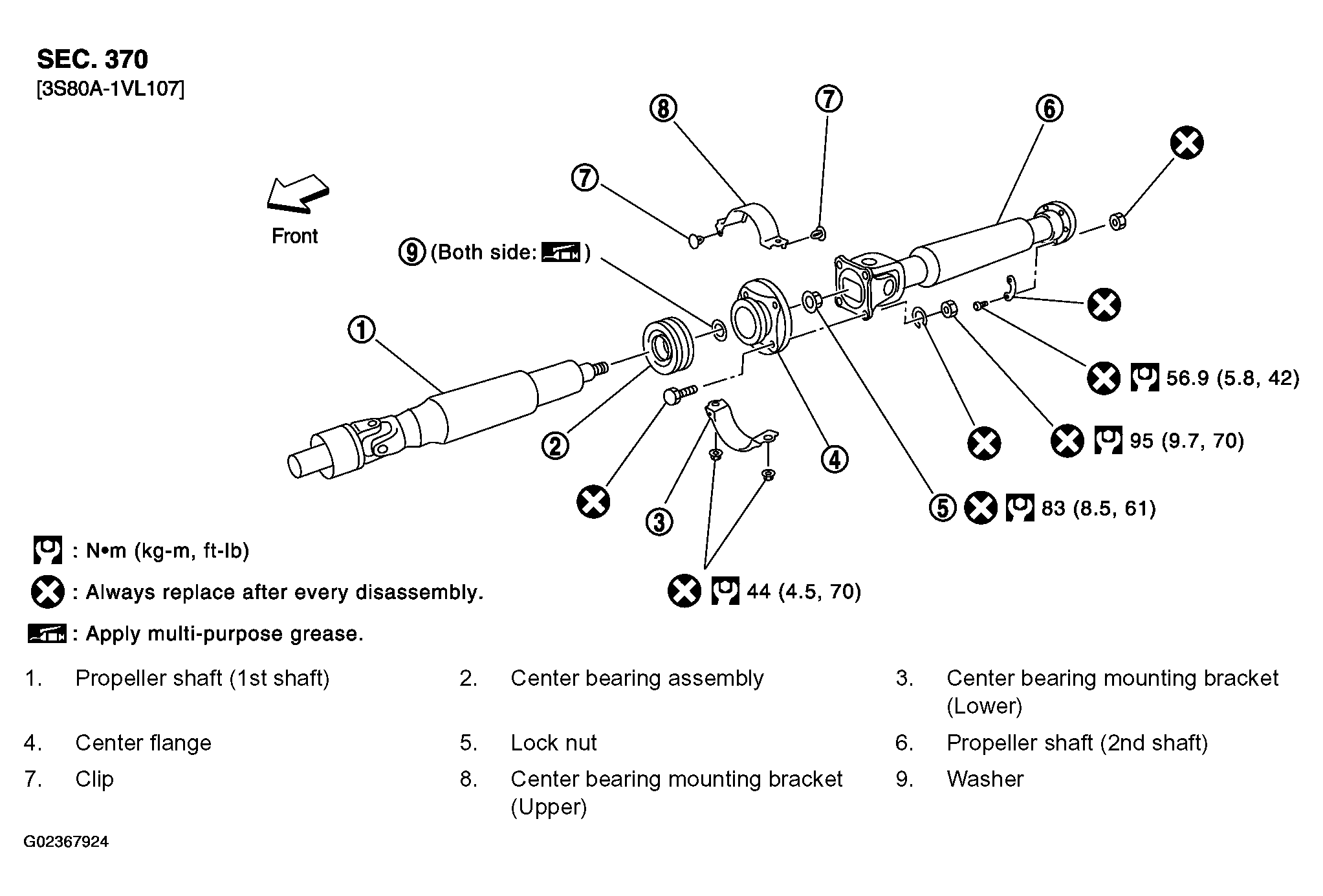

Fig 2: Rear Propeller Replacement Components With Torque Specifications (AWD Models)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

The joint cannot be disassembled.
The center bearing can be disassembled. Refer to "DISASSEMBLY AND ASSEMBLY OF CENTER BEARING ".
