Each Switch Condition Check (Close Operate)

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CHECK EACH SWITCH SIGNAL
1. Start engine.
2. Check voltage between Soft Top Control Unit Connector and ground.

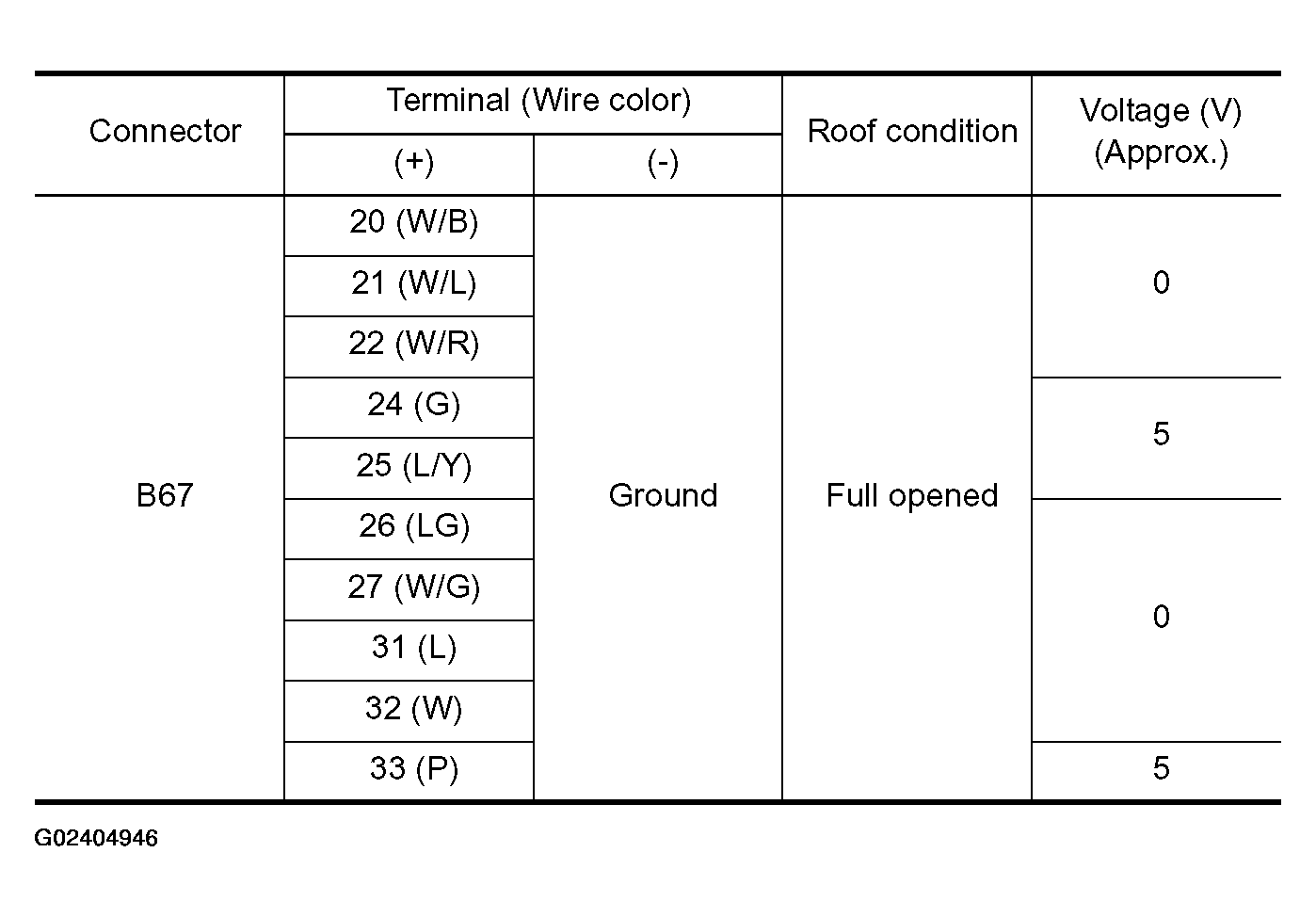

Fig 1: Soft Top Control Unit Connector B67 Terminals 20 (W/B), 21 (W/L), 22 (W/R), 24 (G), 25 (L/Y), 26 (LG), 27 (W/G), 32 (W), 33 (P) & Ground Voltage Specifications Table
Courtesy of NISSAN MOTOR CO., U.S.A.

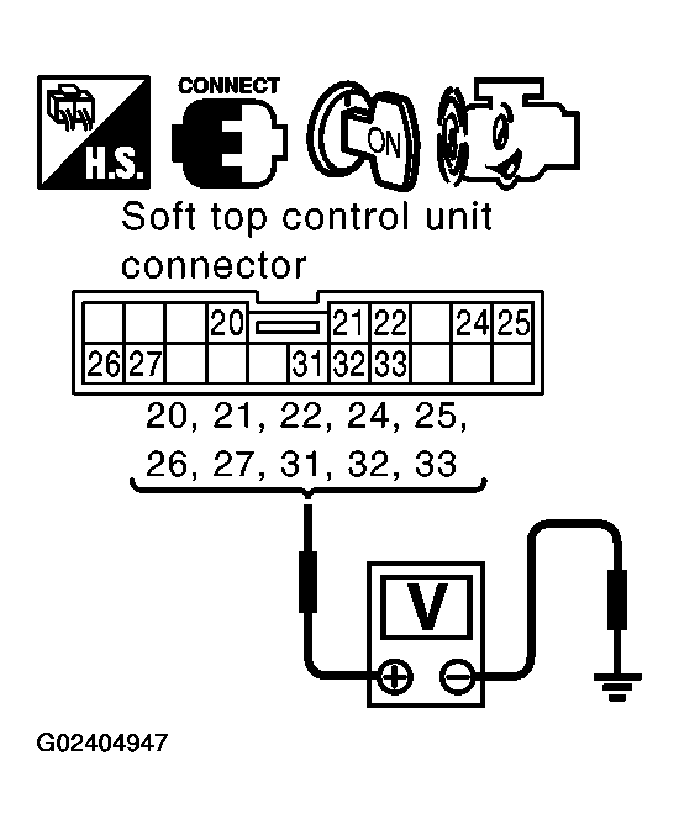

Fig 2: Soft Top Control Unit Connector B67 Terminals 20 (W/B), 21 (W/L), 22 (W/R), 24 (G), 25 (L/Y), 26 (LG), 27 (W/G), 32 (W), 33 (P) & Ground Voltage Test
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: Each switch condition is OK.
- NG: Check malfunction switch.
