Vehicle Signals

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

Fig 1: Vehicle Signals Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

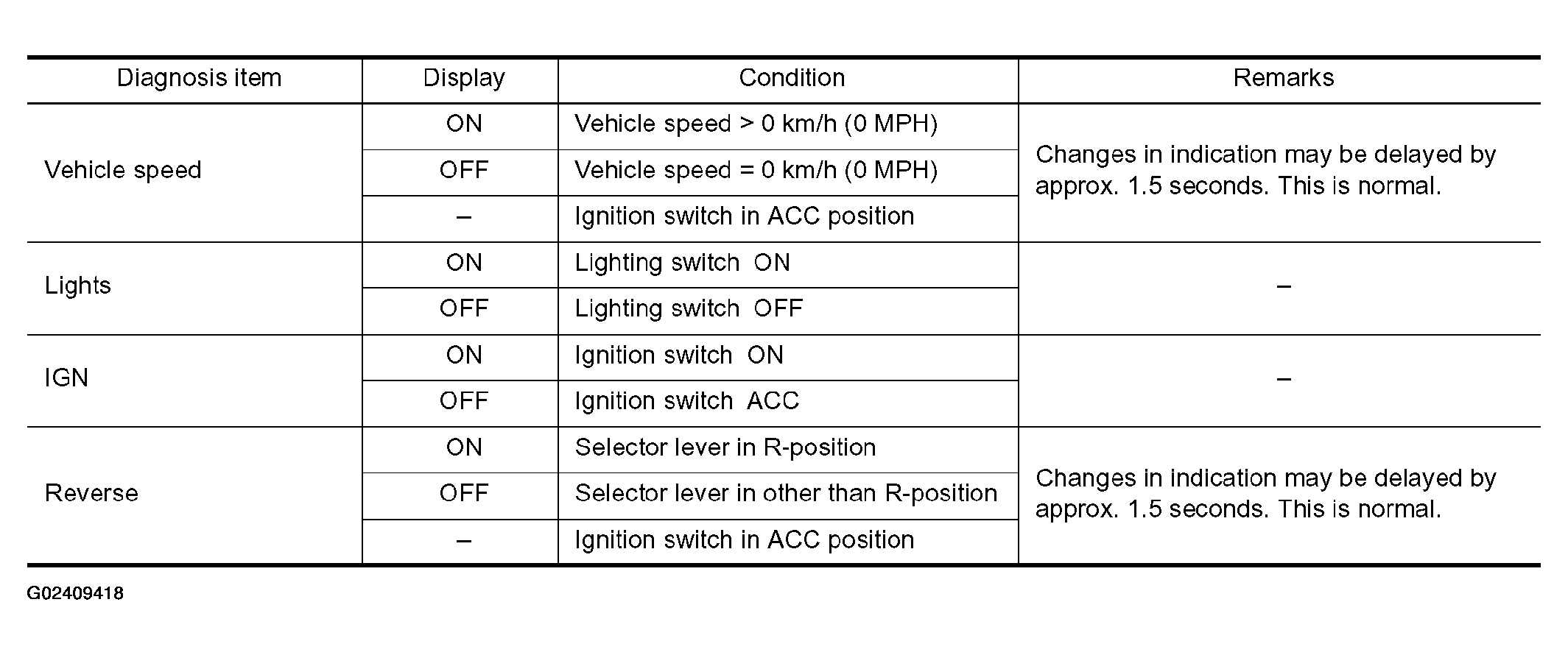

Fig 2: Vehicle Signals Table

Courtesy of NISSAN MOTOR CO., U.S.A.

If vehicle speed is NG, Refer to "VEHICLE SPEED SIGNAL CHECK ".
If light is NG, Refer to "ILLUMINATION SIGNAL CHECK ".
If IGN is NG, Refer to "IGNITION SIGNAL CHECK ".
If reverse is NG, Refer to "REVERSE SIGNAL CHECK ".
