Examples Of Current-Location Mark Displacement

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Vehicle's travel amount is calculated by reading its travel distance and turning angle. Therefore, if the vehicle is driven in the following manner, an error will occur in the vehicle's current location display. If correct location has not been restored after driving the vehicle for a while, perform location correction.

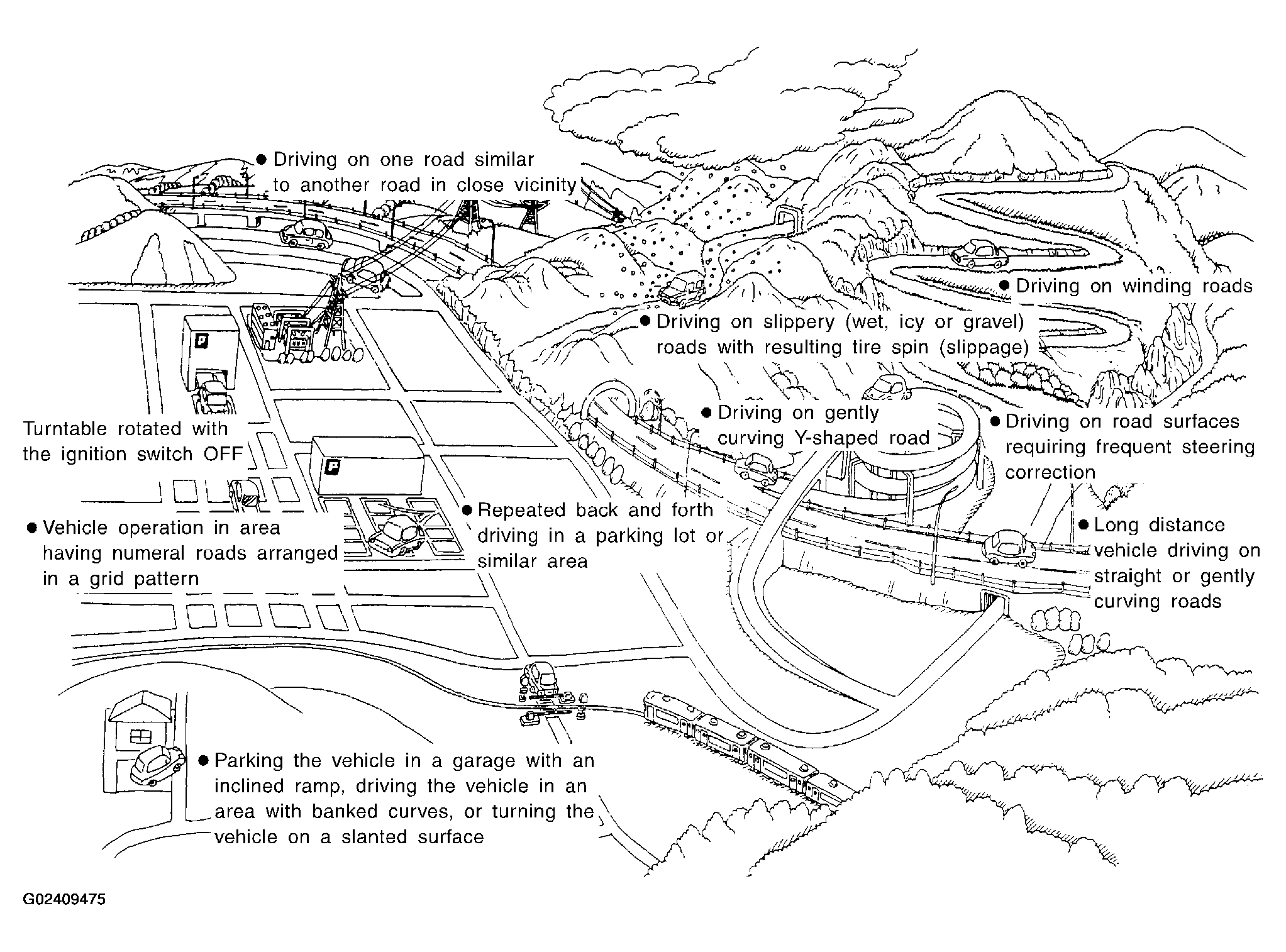

Fig 1: Examples Of Current-Location Mark Displacement

Courtesy of NISSAN MOTOR CO., U.S.A.

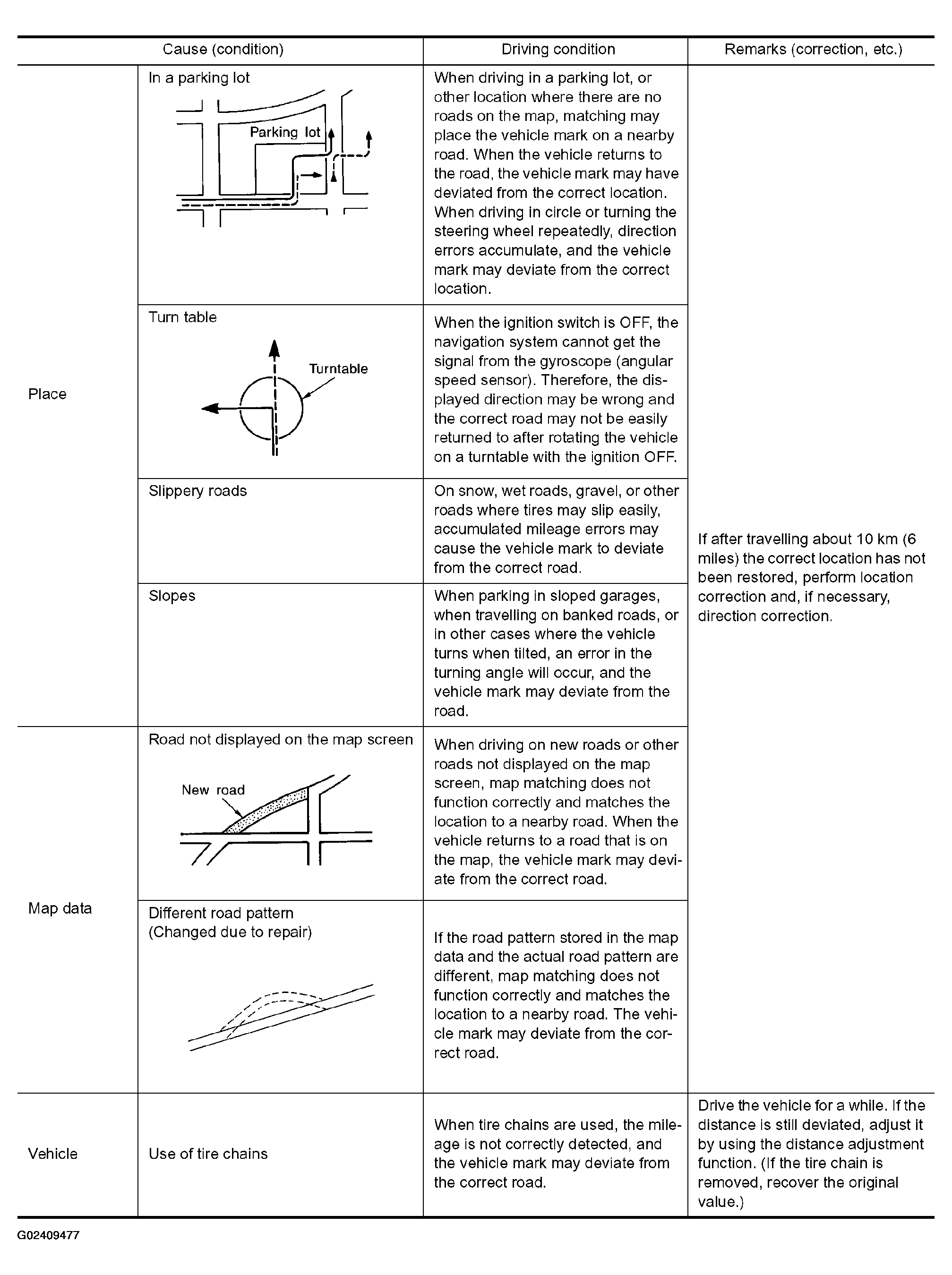

Fig 2: Vehicle Driving Conditions Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

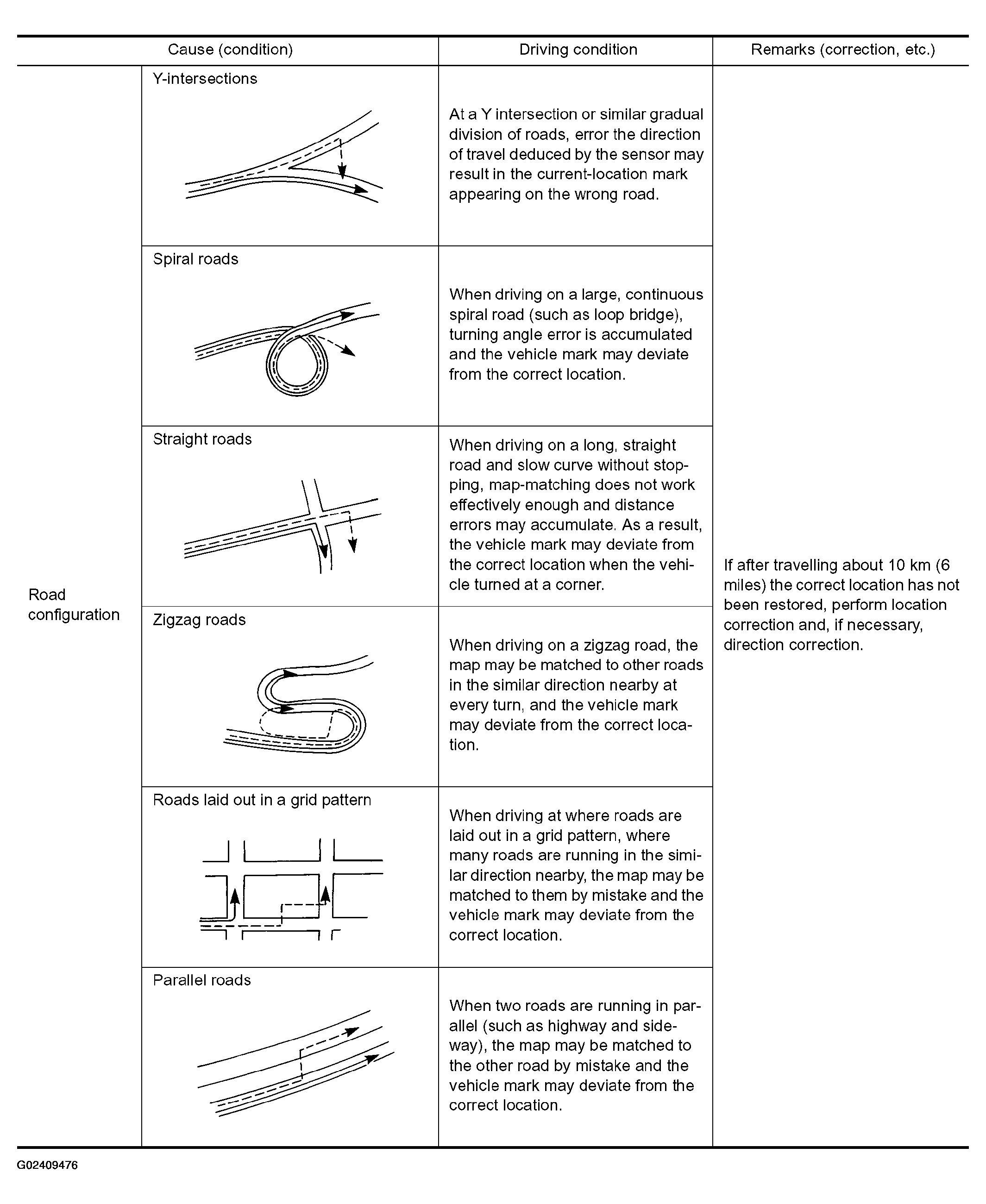

Fig 3: Vehicle Driving Conditions Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

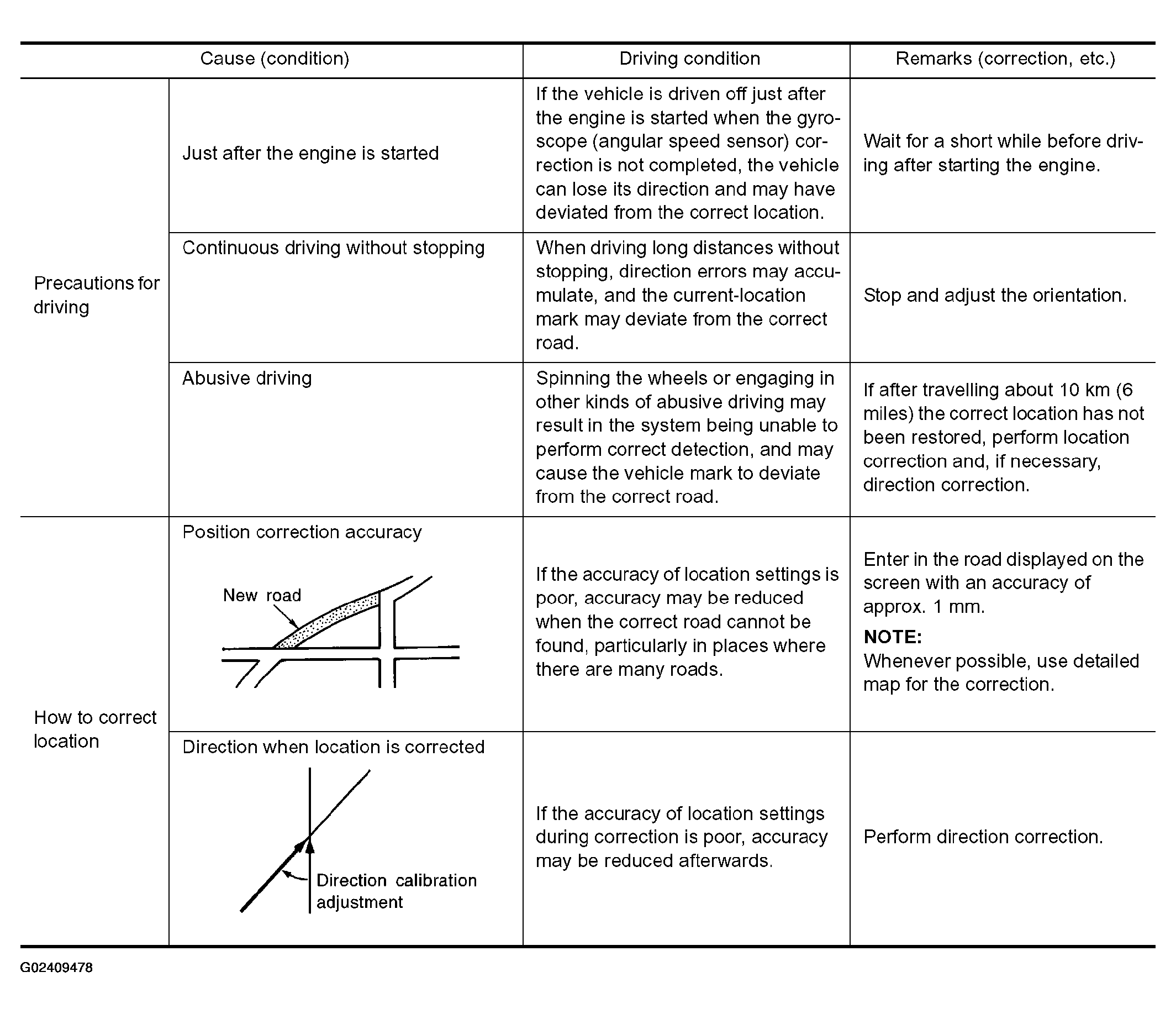

Fig 4: Vehicle Driving Conditions Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
