Section 148 (Smart Entrance Control Unit)
›
Pin Voltage Tests
Pin Voltage Tests
WARNING:
This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
For PIN voltage charts, see
Fig 1
-
Fig 3
.

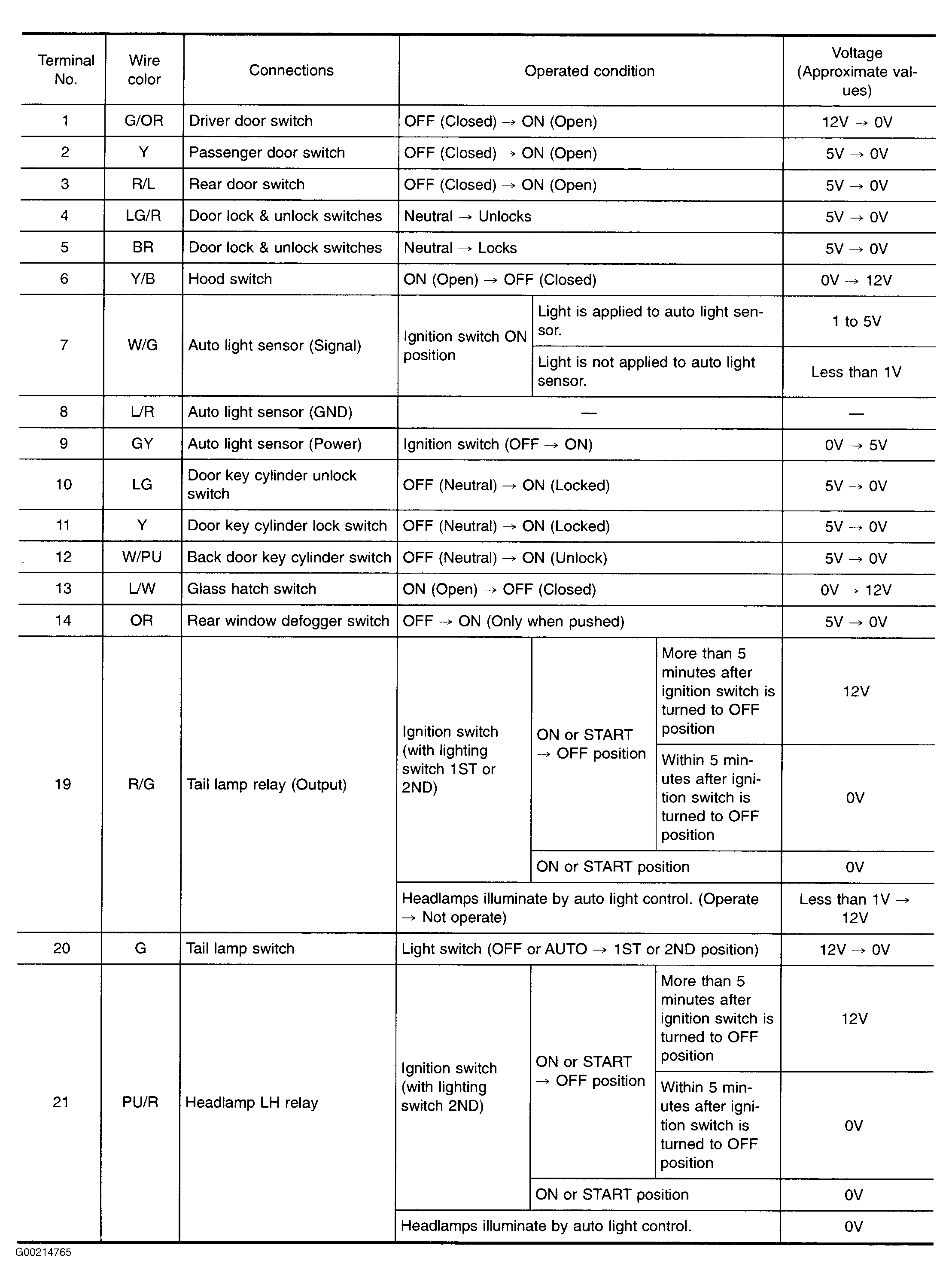

Fig 1: Identifying PIN Voltage tests (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

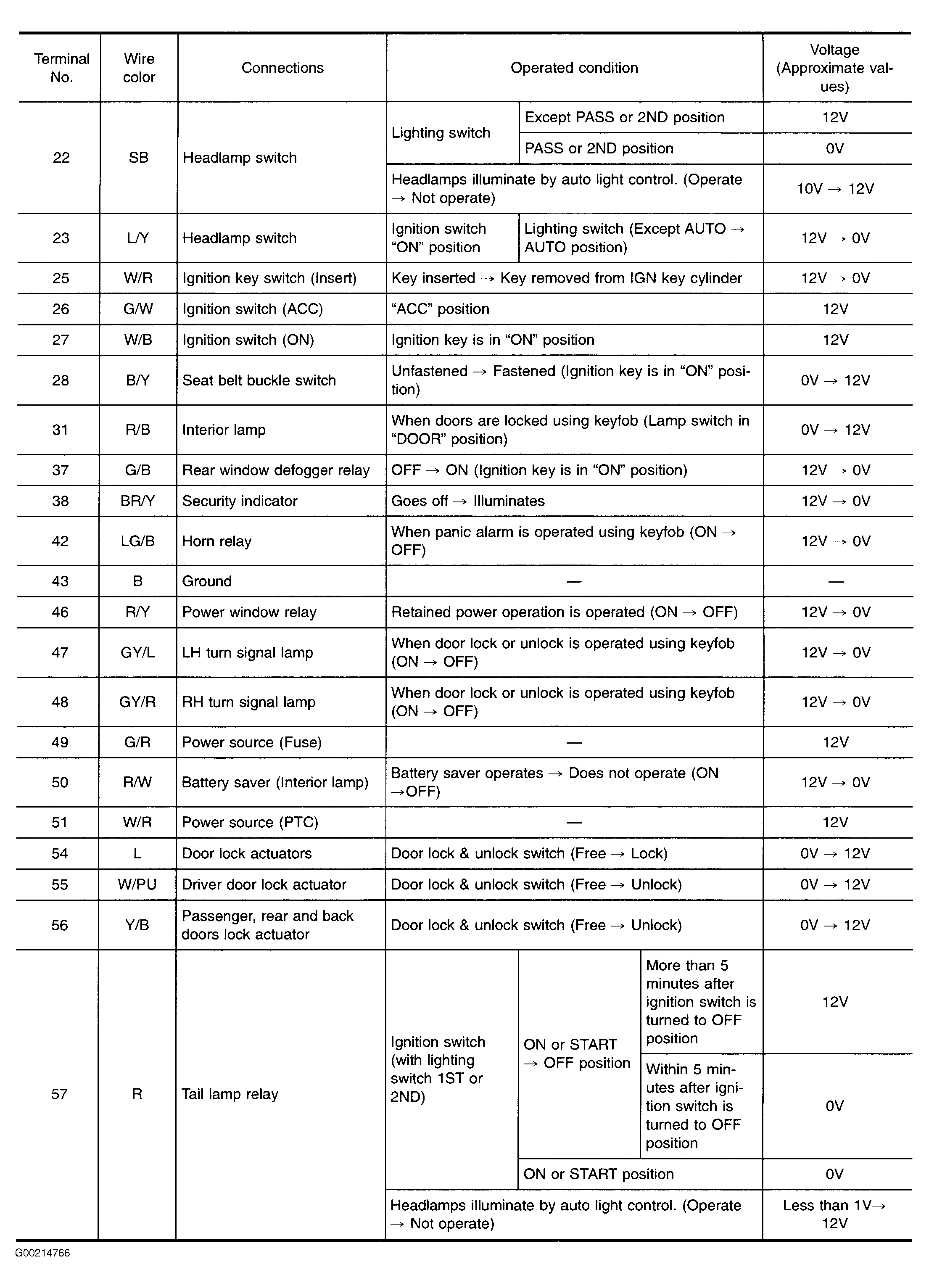

Fig 2: Identifying PIN Voltage tests (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

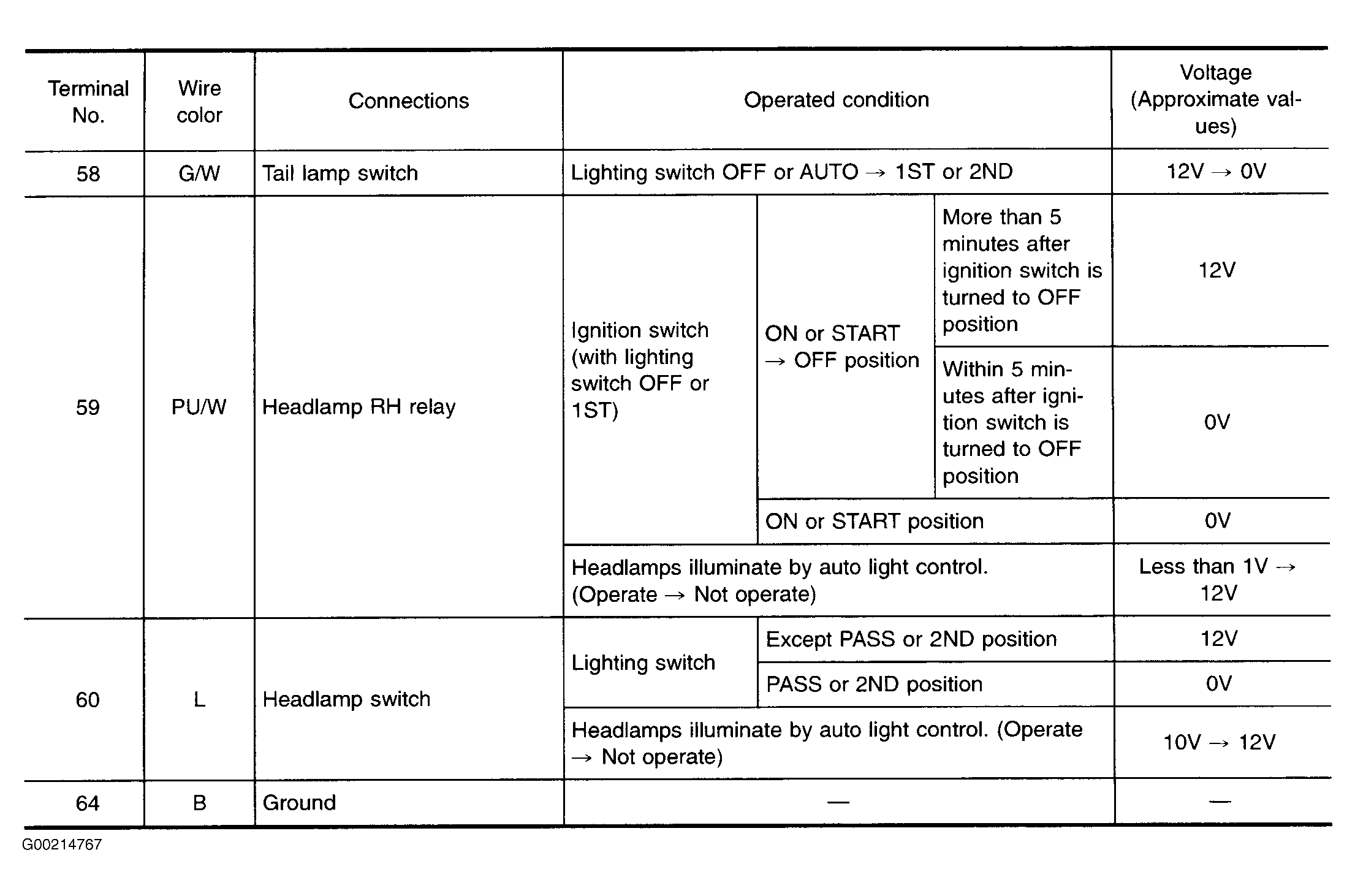

Fig 3: Identifying PIN Voltage tests (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
