ABS Motor
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

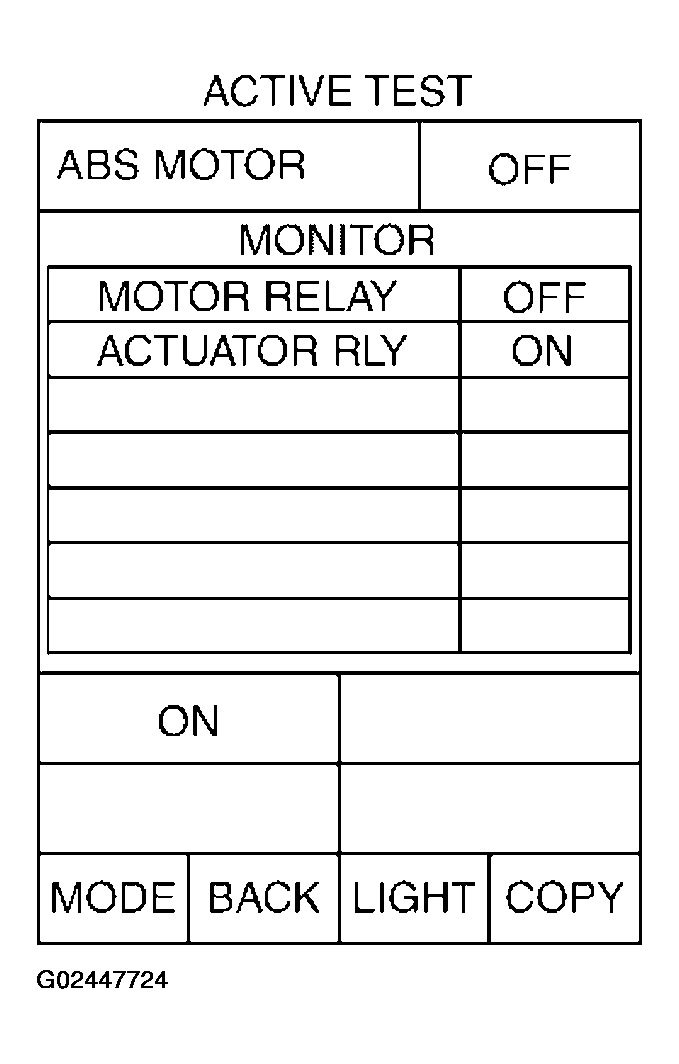

Touch "ON" and "OFF" on the screen. Check that ABS motor relay operates as shown in table below.
ABS MOTOR OPERATION TABLE
| Operation |
ON |
OFF |
| ABS actuator relay |
ON |
ON |
| ABS motor relay |
ON |
OFF |
NOTE:
- If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
- "TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
Courtesy of NISSAN MOTOR CO., U.S.A.
