Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

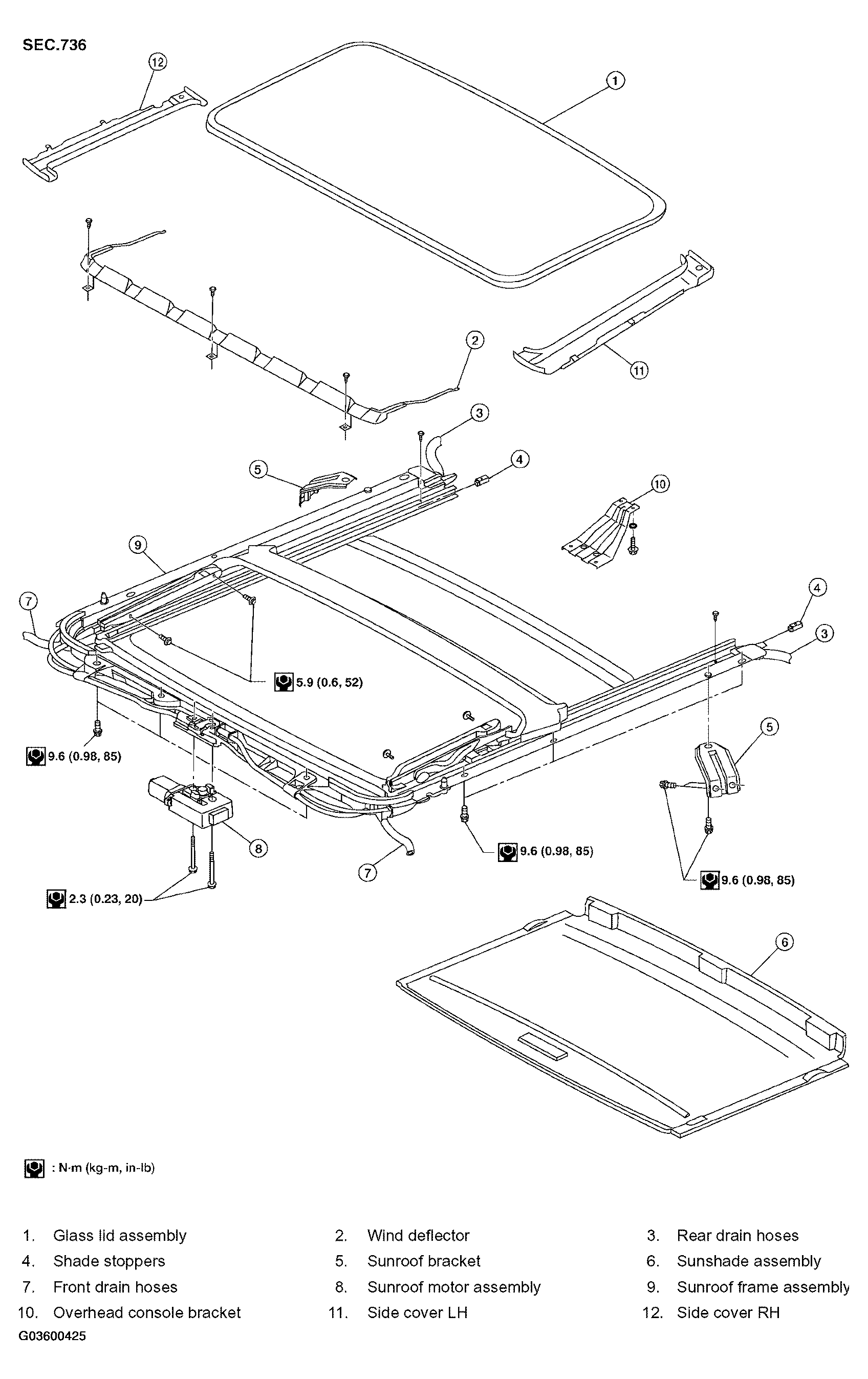

Fig 1: Exploded View Of Sunroof With Torque Specifications

G03600425

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Always work with a helper.
Before removal, fully close the glass lid assembly. Then, after removal, do not move the motor assembly.
After installing the sunroof and glass lid, check gap adjustment to ensure there is no malfunction.

NOTE:

After any adjustment, check sunroof operation and glass lid alignment.
Handle glass lid with care so not to cause damage.
For easier installation, mark each point before removal.
