Terminals and Reference Value for Display Unit

WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

TERMINALS AND REFERENCE VALUE CHART

Terminal (Wire color)		Item	Signal Input/ output	Condition		Reference value
+	-	Item	Signal Input/ output	Ignition switch	Operation	Reference value
1 (B)	4 (G)	RGB signal (R: red)	Input	ON	Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.	Courtesy of NISSAN MOTOR CO., U.S.A.
2 (W)	4 (G)	RGB signal (G: green)	Input	ON	Start confirmation/adjustment ode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.	Courtesy of NISSAN MOTOR CO., U.S.A.
3 (R)	4 (G)	RGB signal (B: blue)	Input	ON	Start confirmation/adjustment mode, and then display color bar by selecting "Color Spectrum Bar" on DISPLAY DIAGNOSIS screen.	Courtesy of NISSAN MOTOR CO., U.S.A.
4 (G)	Ground	RGB Ground	-	ON	-	Approx. 0 V
7 (P)	Ground	RGB synchronizing signal	Input	ON	-	Courtesy of NISSAN MOTOR CO., U.S.A.
8 (L)	Ground	RGB area (YS) signal	Input	ON	When inputting RGB image.	Approx. 5 V
12	-	Shield	-	-	-	-

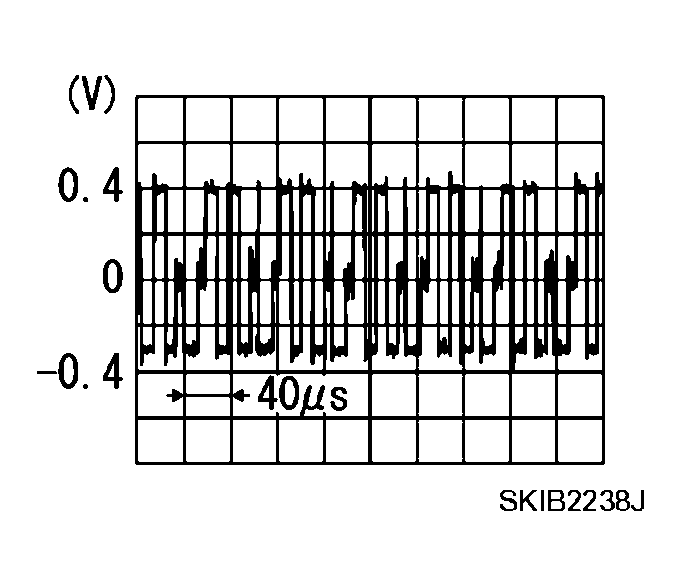

13 (B)	Ground	Communication signal (-)	Input/ Output	ON	Press the "BACK" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
14 (W)	Ground	Communication signal (+)	Input/ Output	ON	Press the "BACK" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
15	-	Shield	-	-	-	-

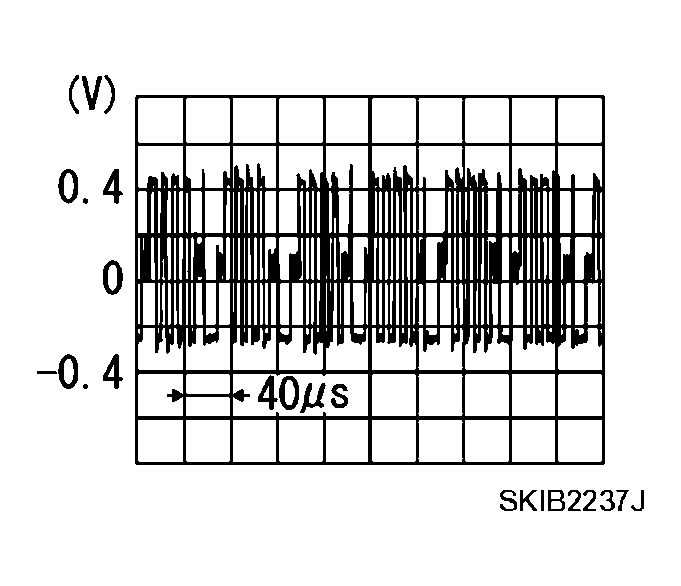

16 (G)	Ground	Communication signal (-)	Input/ Output	ON	Press the "BACK" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
19 (LG)	Ground	ACC power supply	Input	ACC	-	Battery voltage
20 (R)	Ground	Communication signal (+)	Input/ Output	ON	Press the "BACK" switch.	Courtesy of NISSAN MOTOR CO., U.S.A.
21 (Y)	Ground	Battery power supply	Input	OFF	-	Battery voltage
22 (B)	Ground	Ground	-	ON	-	Approx. 0 V
23 (Y)	Ground	Battery power supply	Input	OFF	-	Battery voltage
24 (B)	Ground	Ground	-	ON	-	Approx. 0 V
