Disassembly and Assembly

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

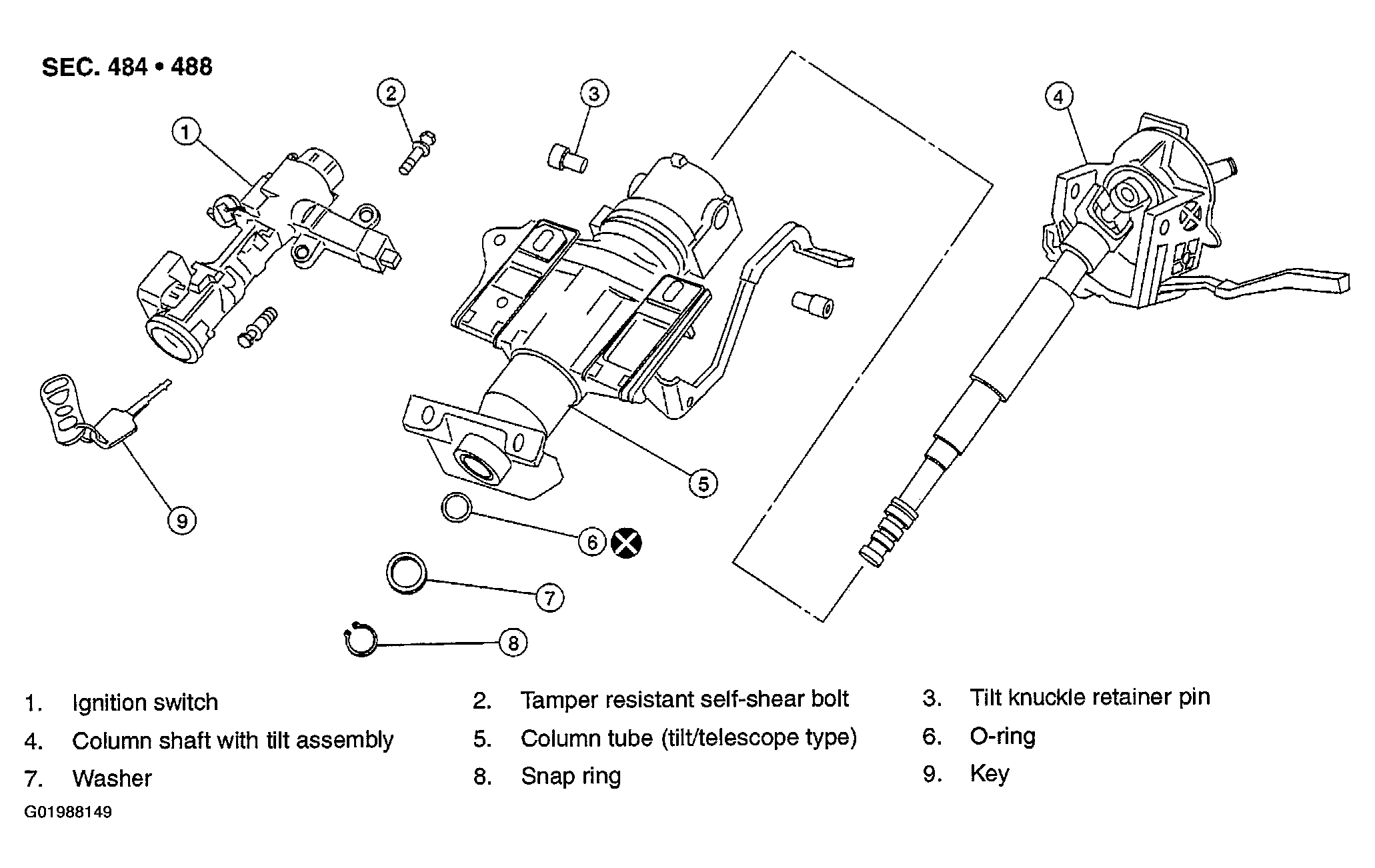

Fig 1: Disassembling/Assembling Steering Column Shaft Assembly

G01988149

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove the tamper resistant self-shear type screws with a drill or other appropriate tool.
Install new tamper resistant self-shear type screws.

Fig 2: Installing Tamper Resistant Self-Shear Type Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
