Cylinder Block: Components: Notes

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

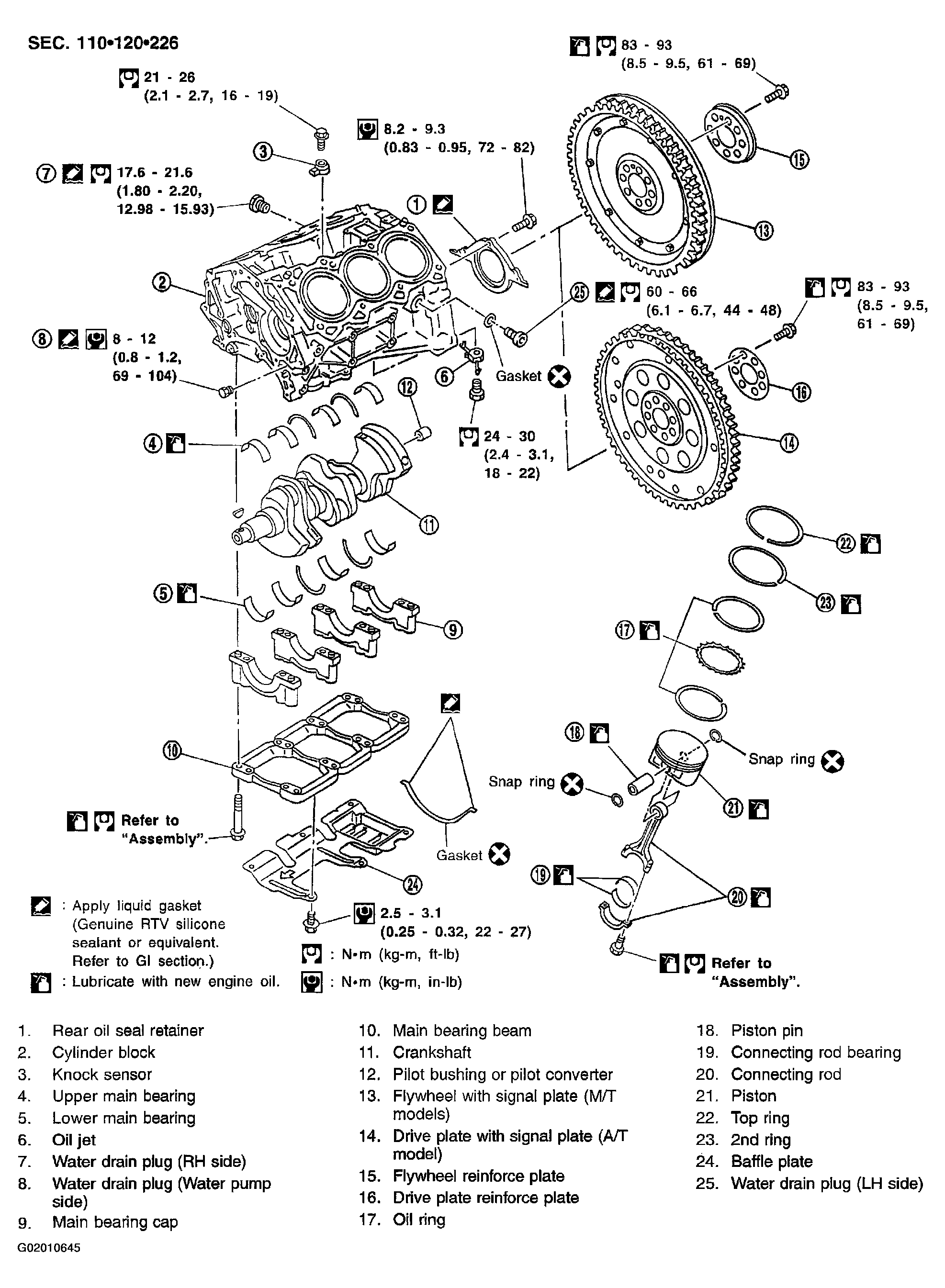

Fig 1: Identifying Cylinder Block Components

Courtesy of NISSAN MOTOR CO., U.S.A.
