Valve Guide Replacement

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

To remove valve guide, heat cylinder head to 110 to 130°C (230 to 266°F) by soaking in heated oil.

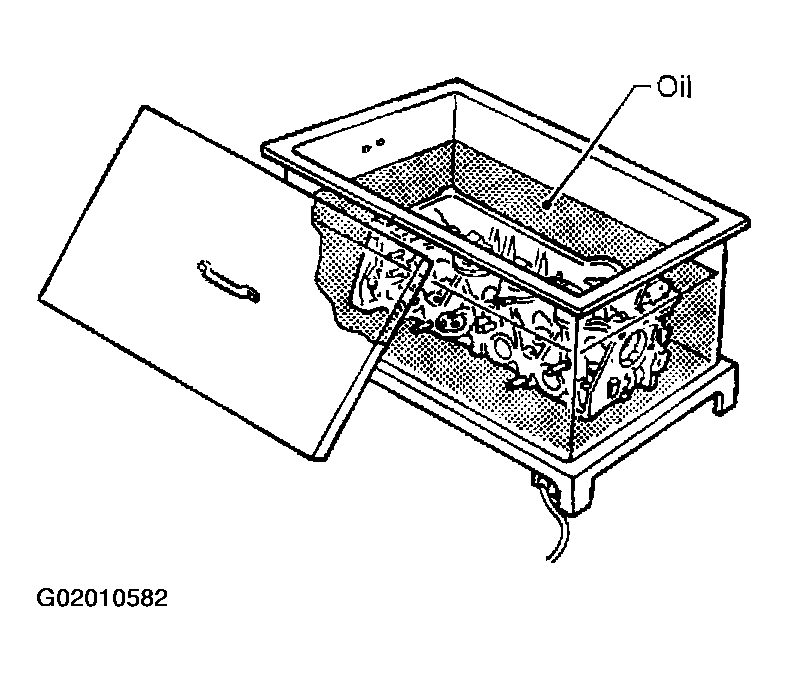

Fig 1: Heating Cylinder Head By Soaking In Heated Oil
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out valve guide with a press [under a 20 kN (2 ton, 2.2 US ton, 2.0 lmp ton) pressure] valve guide with a press and suitable tool.

Fig 2: Removing Valve Guide With Press Or Hammer
Courtesy of NISSAN MOTOR CO., U.S.A.
Ream cylinder head valve guide hole.
Valve guide hole diameter (for service parts):

10.175 - 10.196 mm (0.4006 - 0.4014 in)

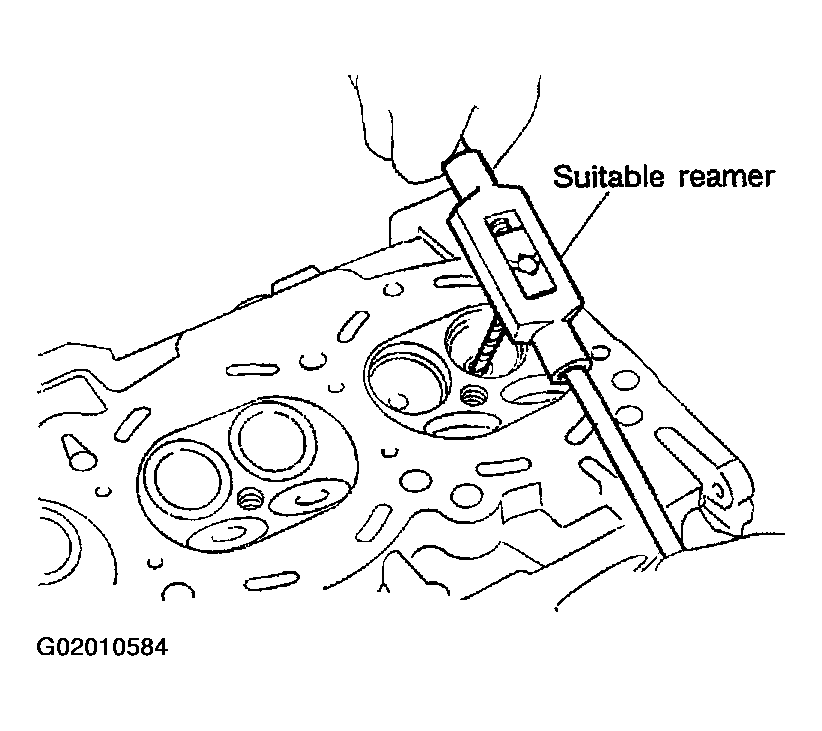

Fig 3: Reaming Cylinder Head Valve Guide Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
Heat cylinder head to 110 to 130°C (230 to 266°F) and press service valve guide onto cylinder head.
Projection "L":

12.6 - 12.8 mm (0.496 - 0.504 in)
Ream valve guide.
Finished size:

6.000 - 6.018 mm (0.2362 - 0.2369 in)

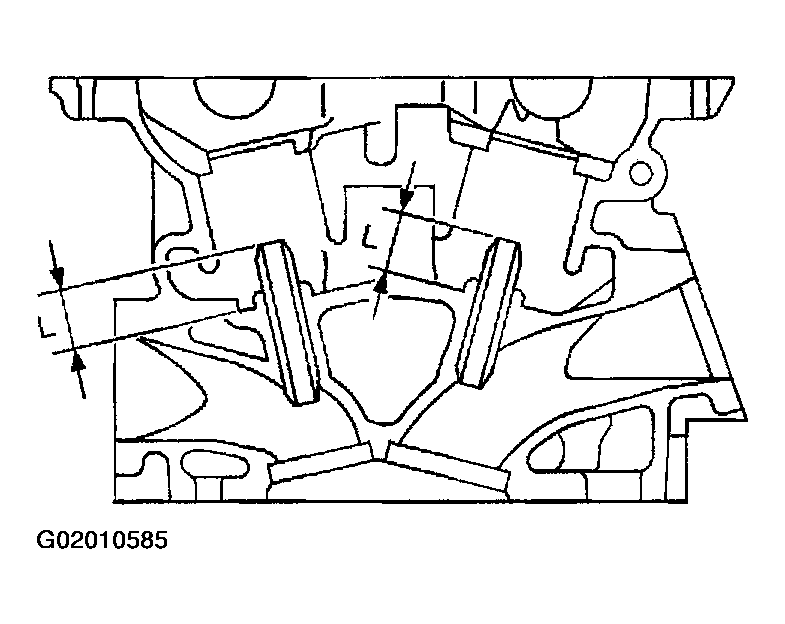

Fig 4: Locating Ream Valve Guide
Courtesy of NISSAN MOTOR CO., U.S.A.
