Available Shims

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

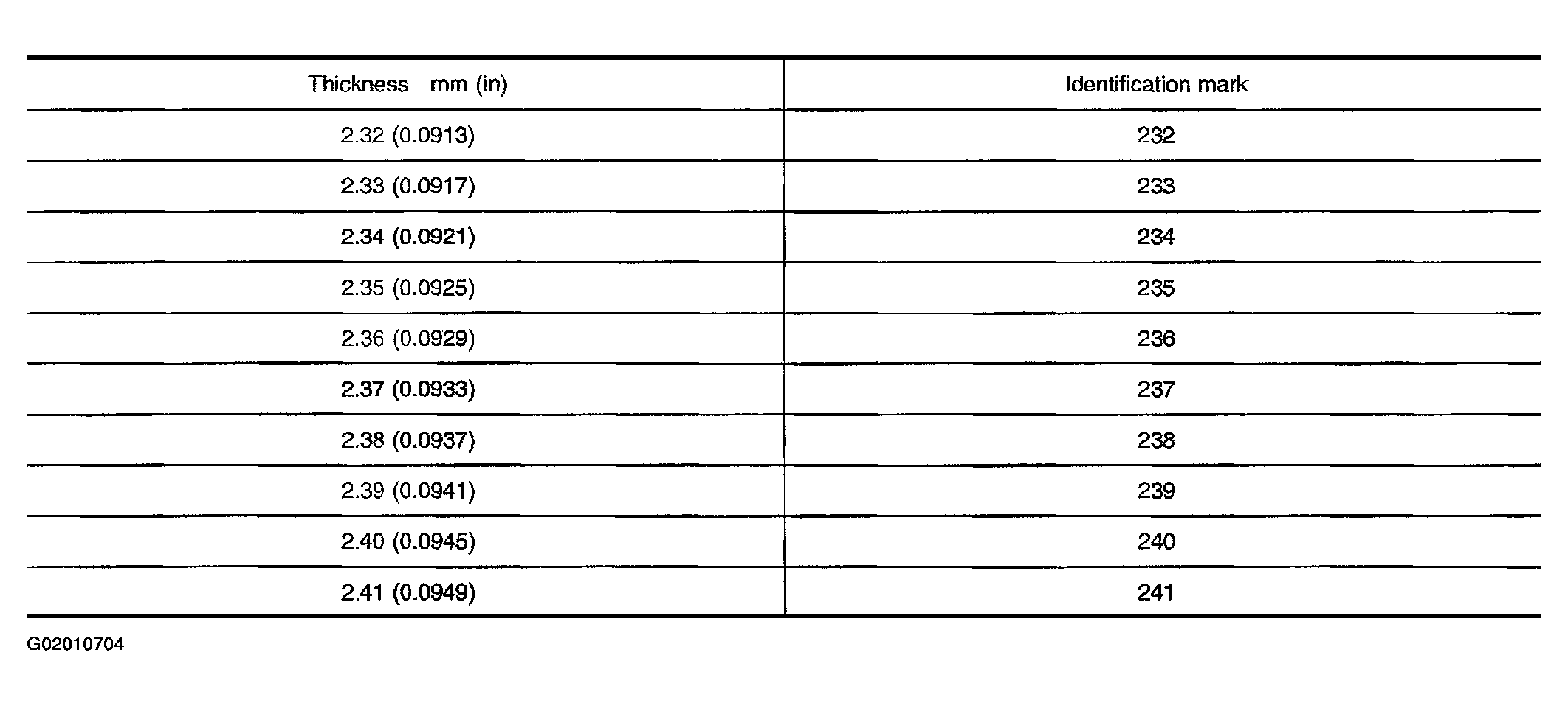

Fig 1: Shims Thickness, Identification Mark Chart (1 Of 3)
G02010704Courtesy of NISSAN MOTOR CO., U.S.A.

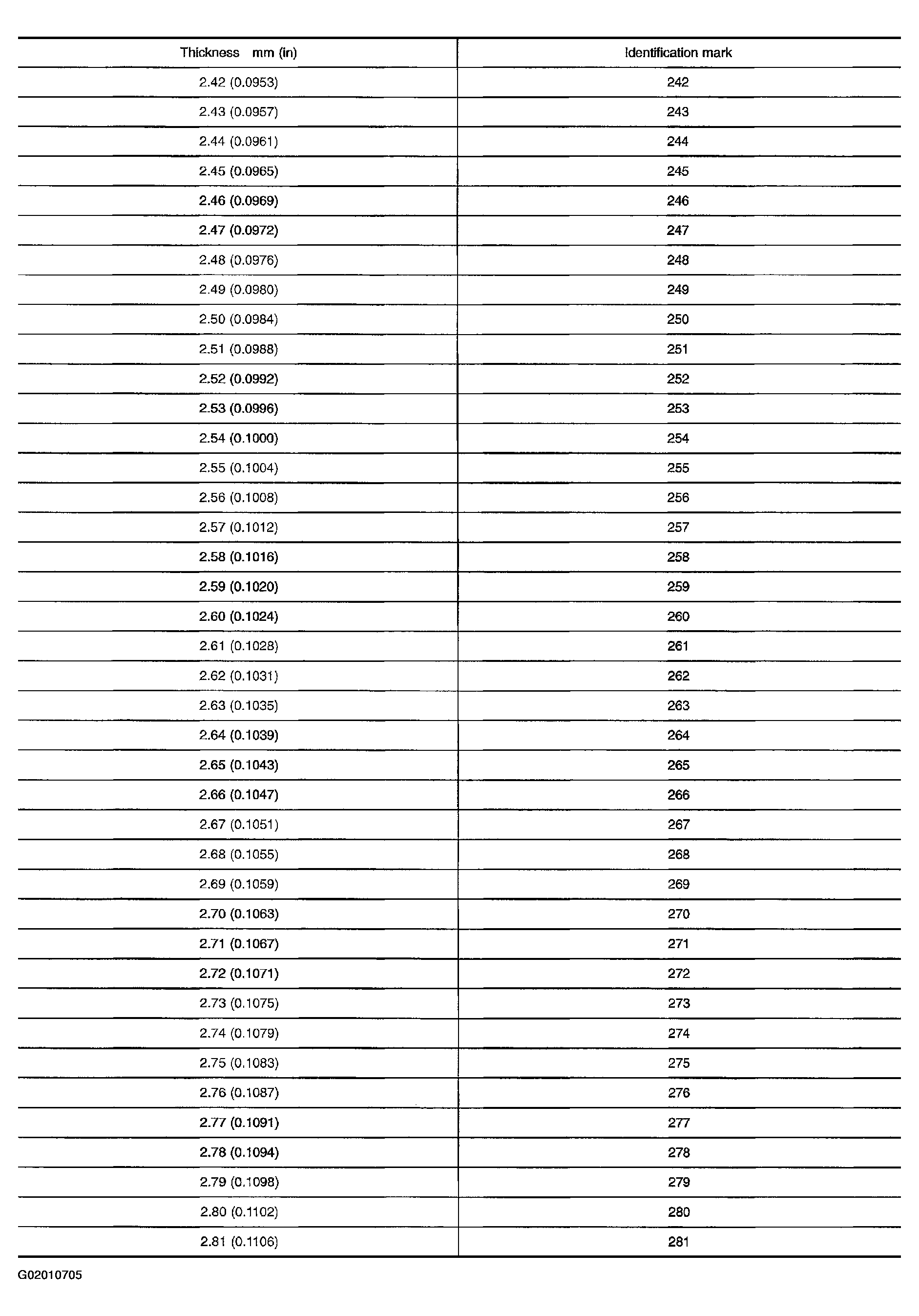

Fig 2: Shims Thickness, Identification Mark Chart (2 Of 3)
G02010705Courtesy of NISSAN MOTOR CO., U.S.A.

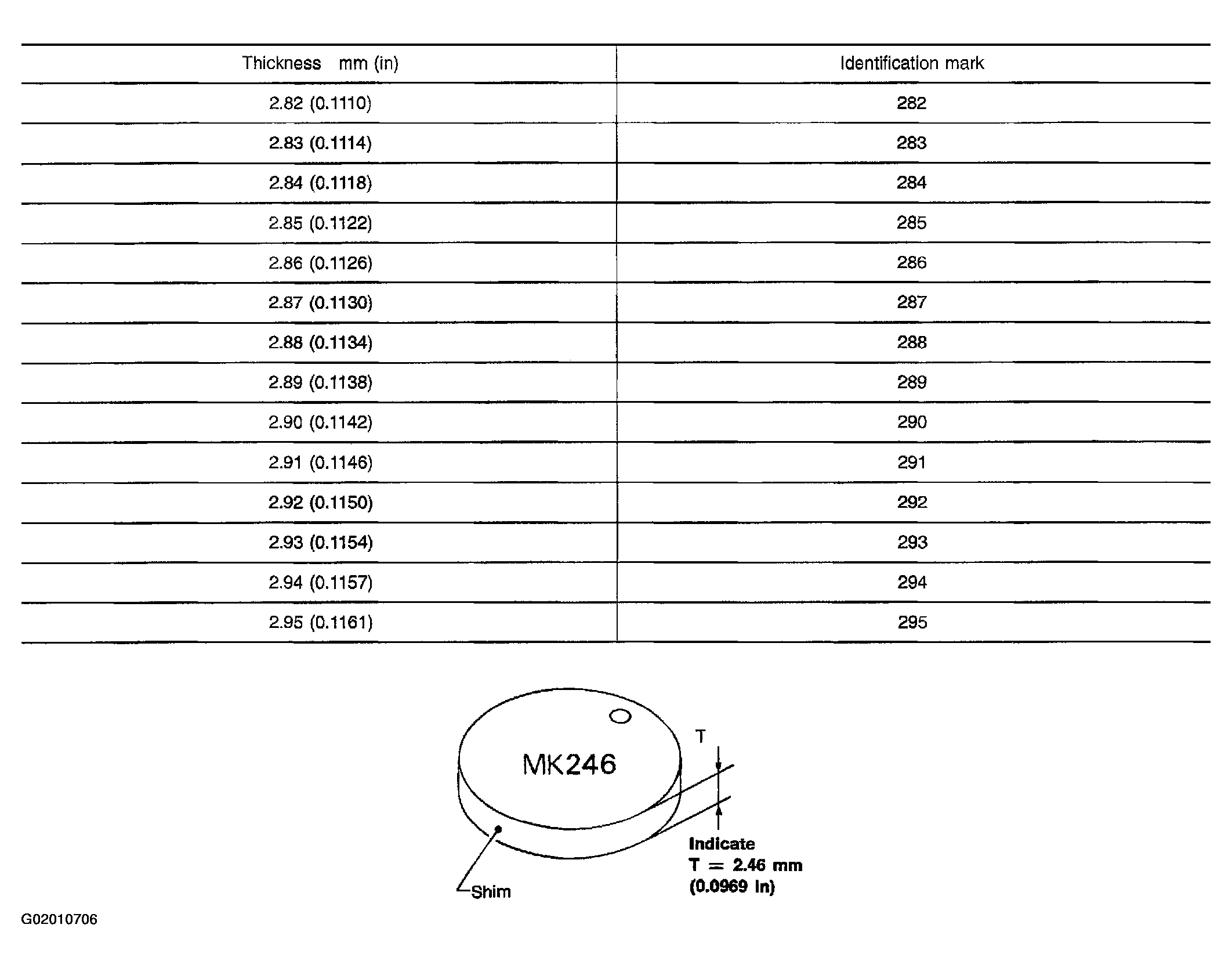

Fig 3: Shims Thickness, Identification Mark Chart (3 Of 3)
G02010706Courtesy of NISSAN MOTOR CO., U.S.A.
