Front Shock Absorber With Coil Spring: Installation

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING

Fig 1: Installing Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Insert the 2 bolts from the front side of the vehicle and install the shock absorber with coil spring to the steering knuckle.
2. Place a wooden block between the shock absorber with coil spring and a jack. Slowly raise the jack and install the shock absorber with coil spring (upper side) to the vehicle.

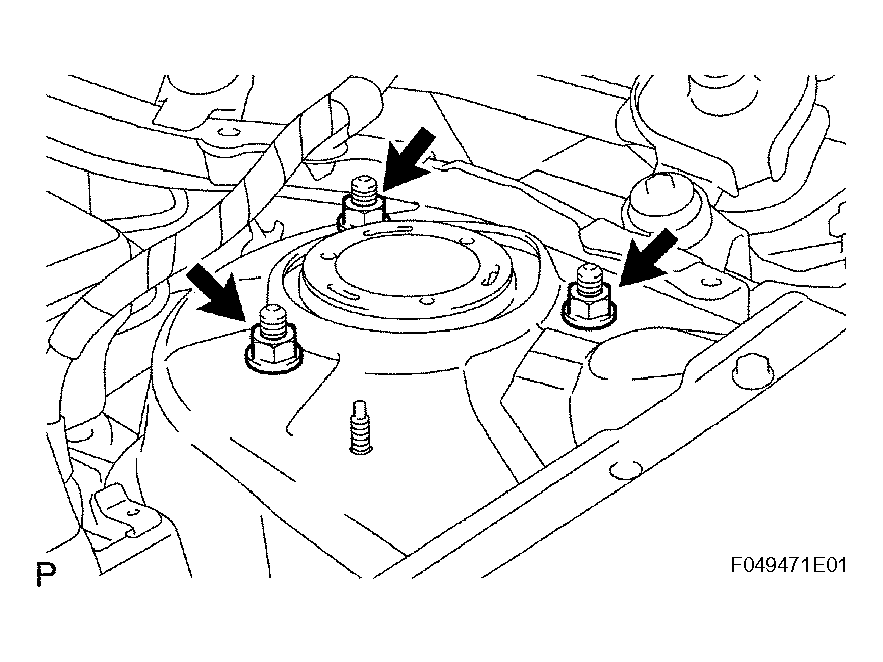

3. Install the shock absorber with coil spring (upper side) with the 3 nuts.
  Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

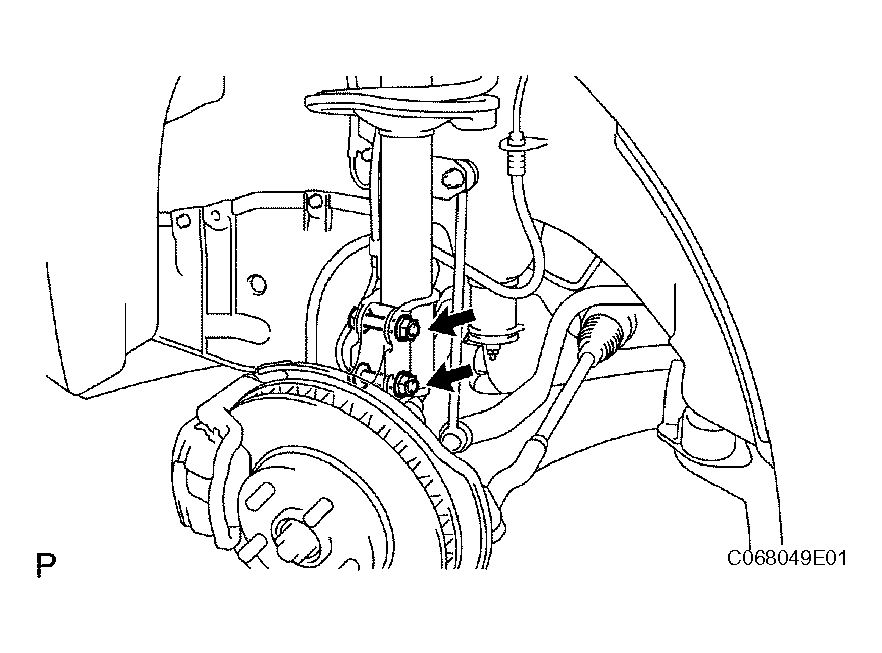

4. Install the shock absorber with coil spring to the steering knuckle with the 2 nuts.
  Torque: 240 N*m (2,450 kgf*cm, 177 ft.*lbf)

  NOTE: When installing the nuts, keep the bolts from rotating and torque the nuts.

  Fig 2: Installing Steering Knuckle Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

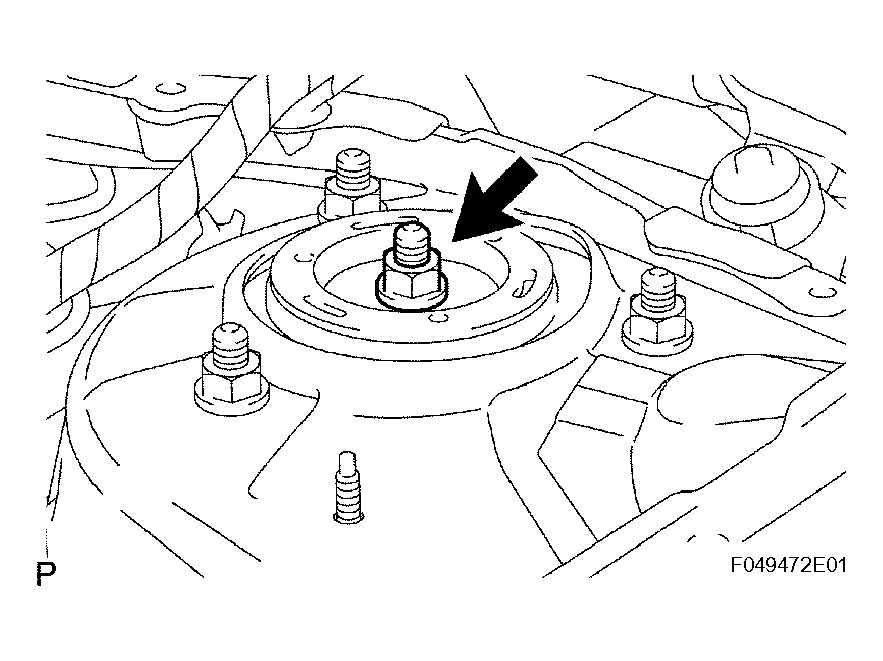

5. Tighten the lock nut.
  Torque: 47 N*m (480 kgf*cm, 35 ft.*lbf)

  Fig 3: Tightening Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Apply MP grease No. 2 to the parts indicated in the illustration and install the suspension dust cover.
Fig 4: Applying MP Grease No. 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SPEED SENSOR LH

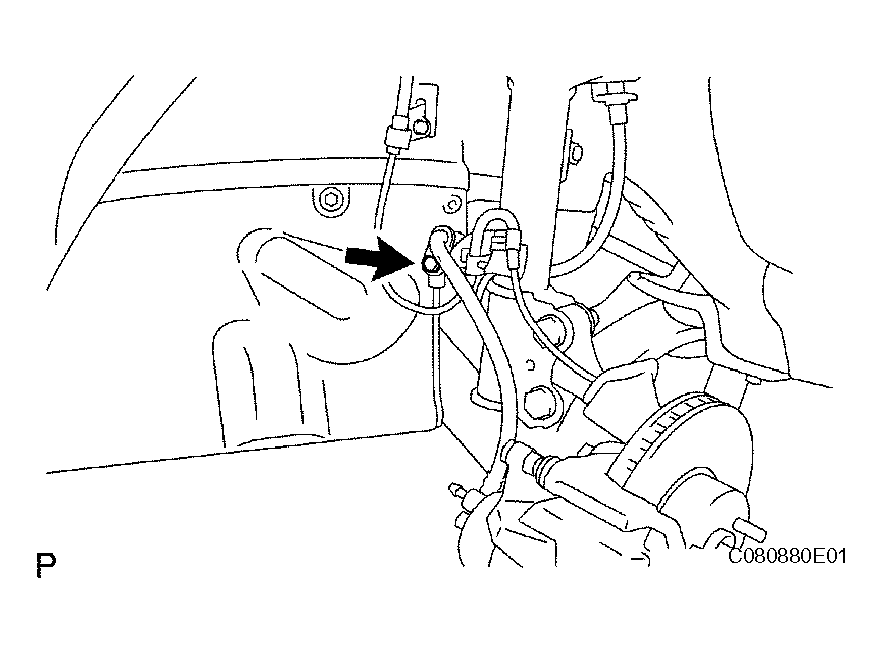

1. Install the front No. 1 flexible hose and speed sensor LH with the bolt.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)
Fig 5: Installing Front No. 1 Flexible Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER LINK ASSEMBLY LH

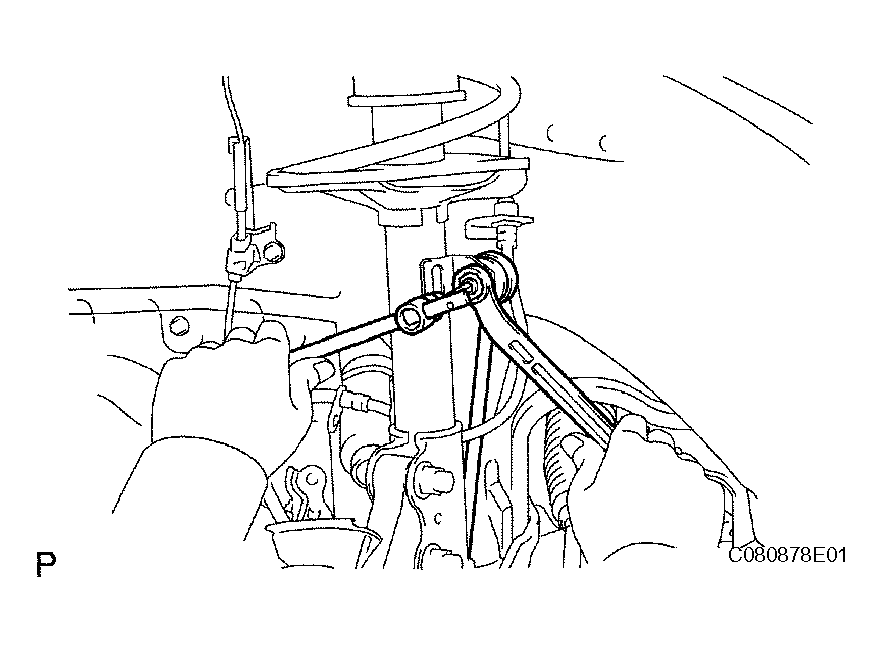

1. Install the stabilizer link to the shock absorber with coil spring with the nut.
  Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

  HINT:

  Use a 6 mm hexagon wrench to hold the stud if the ball joint turns together with nut.

  Fig 6: Installing Stabilizer Link To Shock Absorber With Coil Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
INSTALL COWL TOP VENTILATOR LOUVER LH
1. Install the cowl top ventilator louver (See INSTALLATION ).
INSTALL HOOD TO COWL TOP SEAL
1. Install the hood to cowl top seal (See INSTALLATION ).
INSTALL FRONT WIPER ARM LH (See INSTALLATION )
INSTALL FRONT WIPER ARM RH (See INSTALLATION )
INSTALL FRONT WIPER ARM HEAD CAP
1. Install the wiper arm head cap (See INSTALLATION ).
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
1. Inspect and ADJUST FRONT WHEEL ALIGNMENT .
