Rear Lower Control Arm: Removal

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR WHEEL
  2. REMOVE LOWER CONTROL ARM ASSEMBLY
    1. Support the No. 1 suspension arm LH.

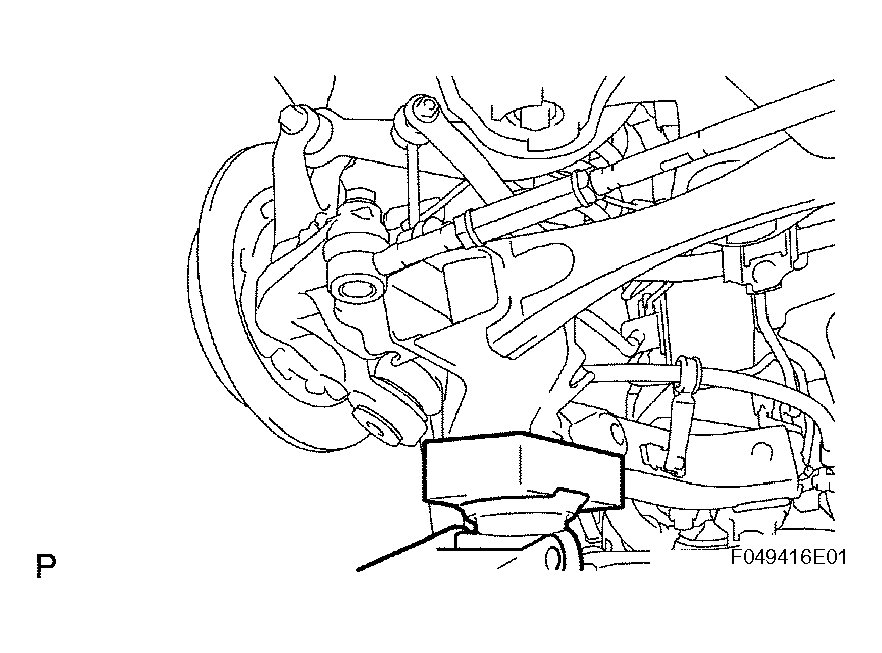

      Fig 1: Supporting No. 1 Suspension Arm LH
      G04223026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and disconnect the member side lower control arm LH front the rear suspension member.

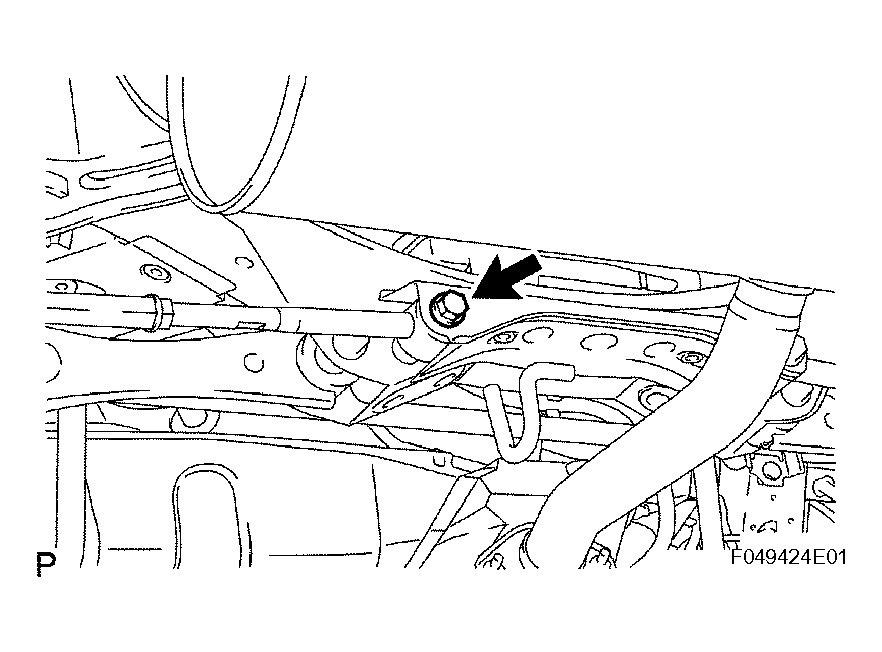

      Fig 2: Removing Member Side Lower Control Arm LH Bolt
      G04223027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clip and nut.
      Fig 3: Removing Clip And Nut
      G04223028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST, remove the lower control arm LH from the axle carrier LH.

      SST 09610-20012

      NOTE: Do not damage the dust cover.

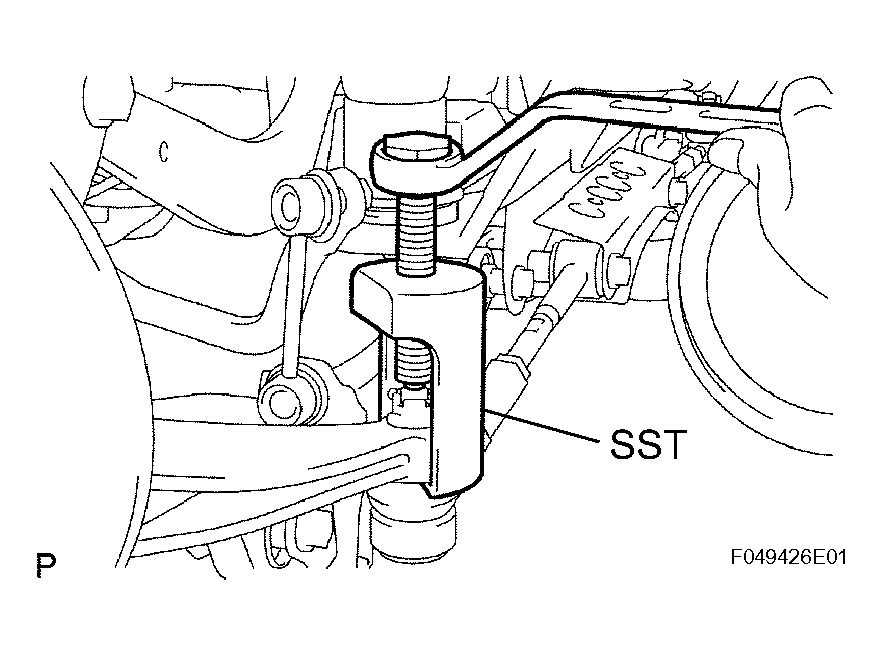

Fig 4: Removing Lower Control Arm LH From Axle Carrier LH From Axle Carrier LH
G04223029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
