System Description

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

A rack and pinion type, engine revolution sensing power steering gear is used on all models.

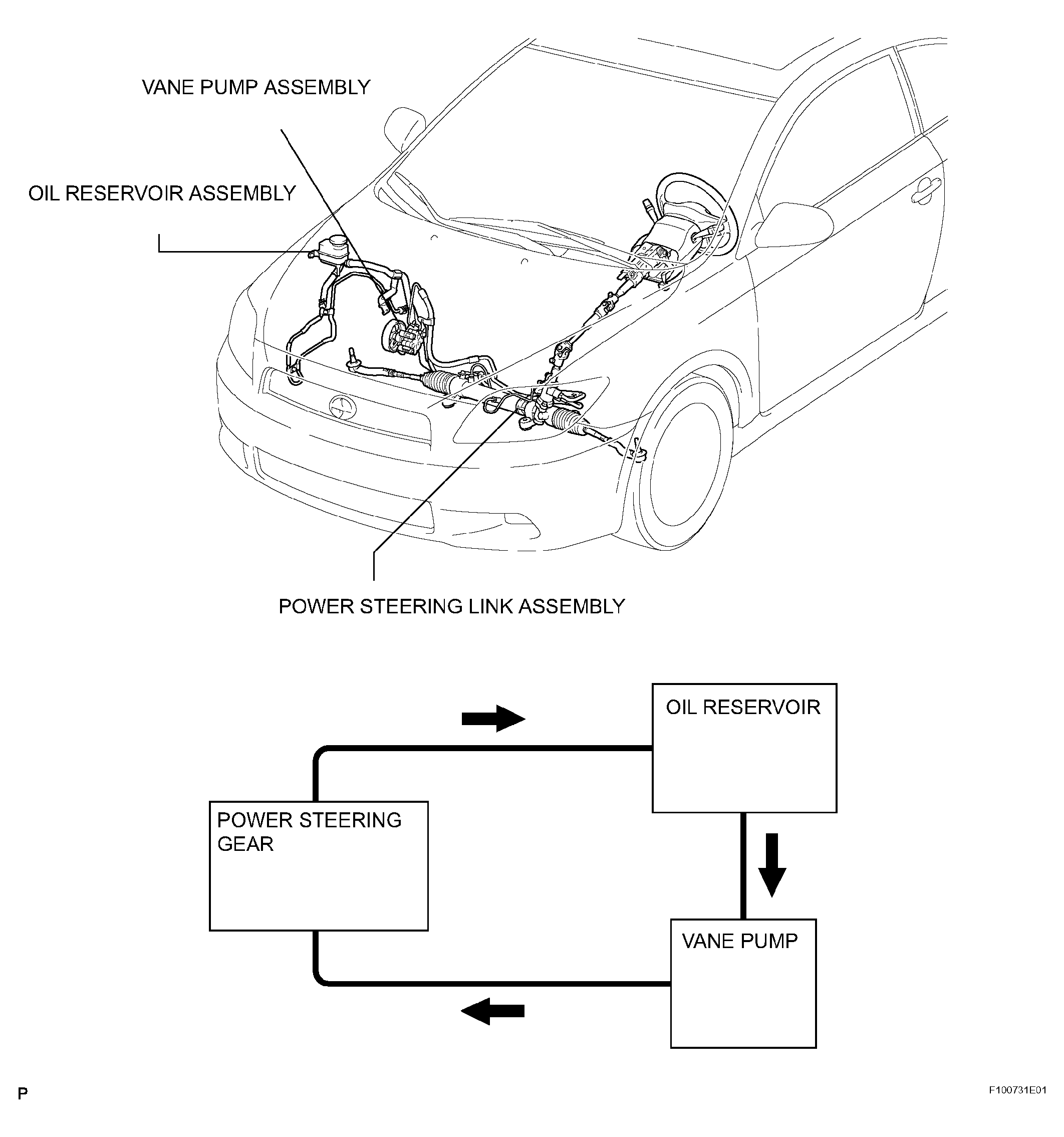

Fig 1: Identifying Power Steering System Components And Diagram
