Display Diagnosis

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

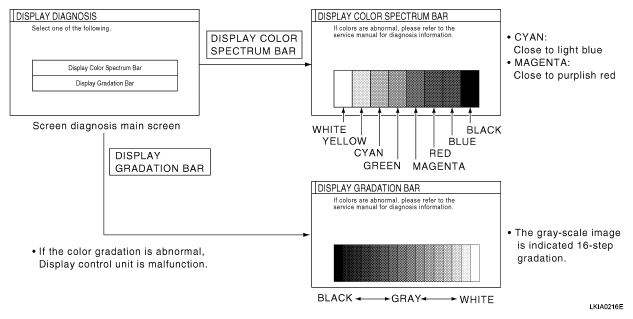

Fig 1: Identifying Color Spectrum Bar Flow Chart

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
R (red) signal error : Screen looks bluish

G (green) signal error : Screen looks reddish

B (blue) signal error : Screen looks yellowish
When the color of the screen looks unusual, refer to "COLOR OF RGB IMAGE IS NOT PROPER (ALL SCREENS LOOK BLUISH) ", "COLOR OF RGB IMAGE IS NOT PROPER (ALL SCREENS LOOK REDDISH) " and "COLOR OF RGB IMAGE IS NOT PROPER (ALL SCREENS LOOK YELLOWISH) ".

Fig 1: Identifying Color Spectrum Bar Flow Chart

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
R (red) signal error : Screen looks bluish

G (green) signal error : Screen looks reddish

B (blue) signal error : Screen looks yellowish
When the color of the screen looks unusual, refer to "COLOR OF RGB IMAGE IS NOT PROPER (ONLY NAVI SCREEN LOOKS BLUISH) ", "COLOR OF RGB IMAGE IS NOT PROPER (ONLY NAVI SCREEN LOOKS REDDISH) " and "COLOR OF RGB IMAGE IS NOT PROPER (ONLY NAVI SCREEN LOOKS YELLOWISH) ".
