Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2008 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

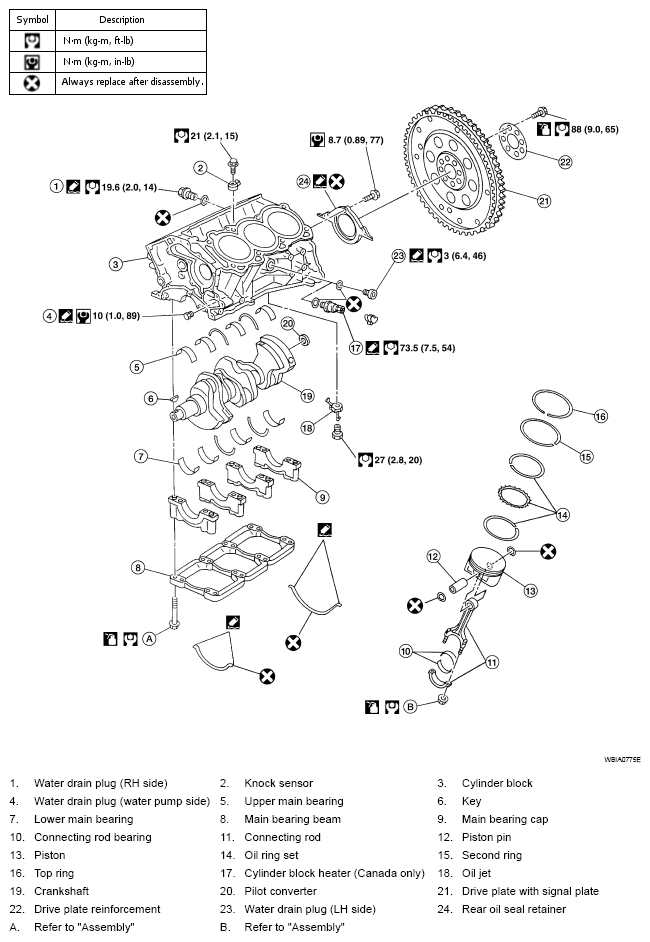

Fig 1: Exploded View Of Cylinder Block Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Apply new engine oil to parts as marked in illustrations before installation.
Place removed parts such as bearings and bearing caps in their proper order and direction.
When installing the connecting rod nuts, and main bearing cap bolts, apply new engine oil to the threads and mating surfaces
Do not allow any magnetic materials to contact the signal plate teeth on the drive plate.
