WARNING: This page is about a different car, the 2008 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

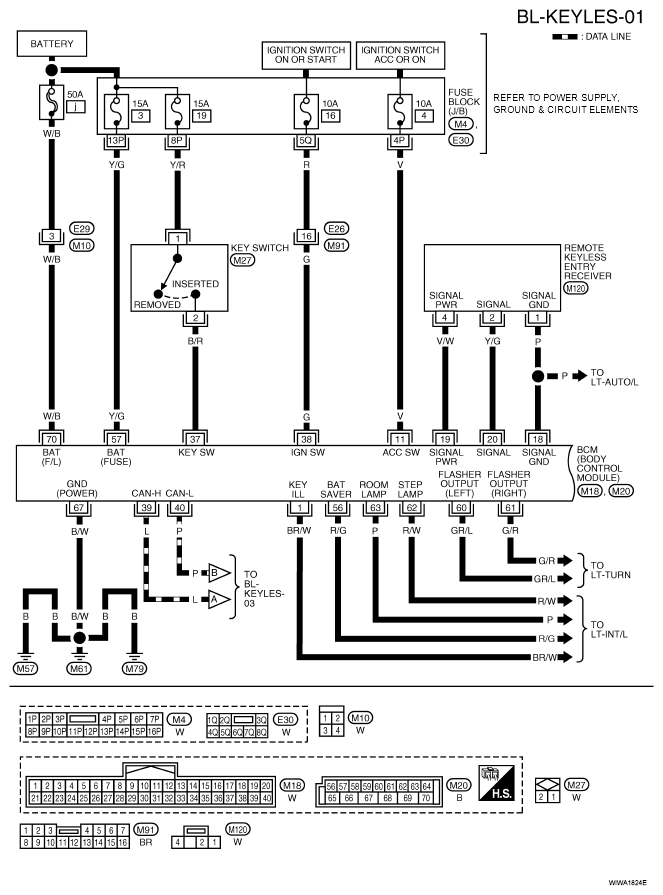

Fig 1: Remote Keyless Entry System Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

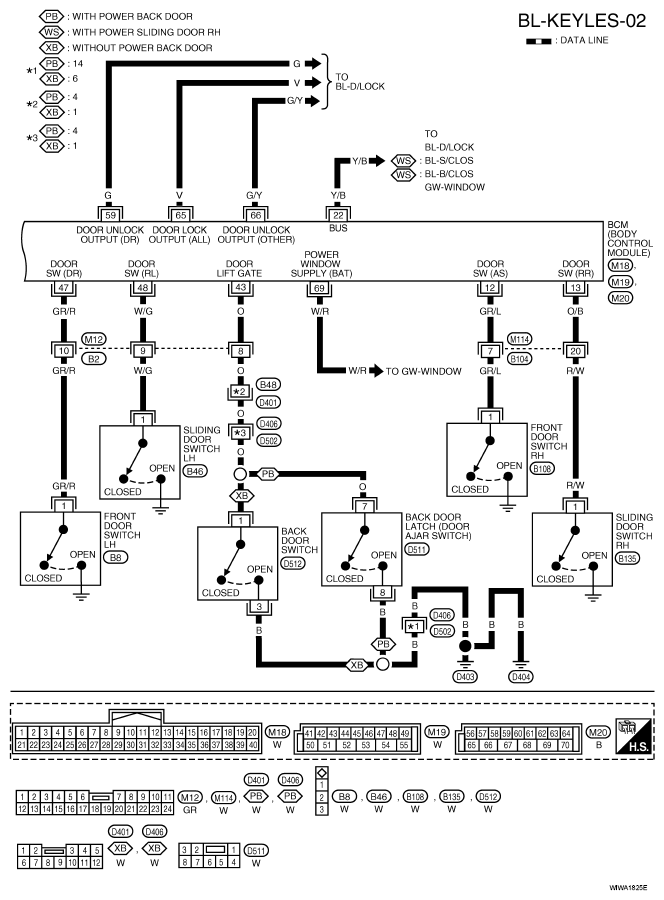

Fig 2: Remote Keyless Entry System Wiring Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

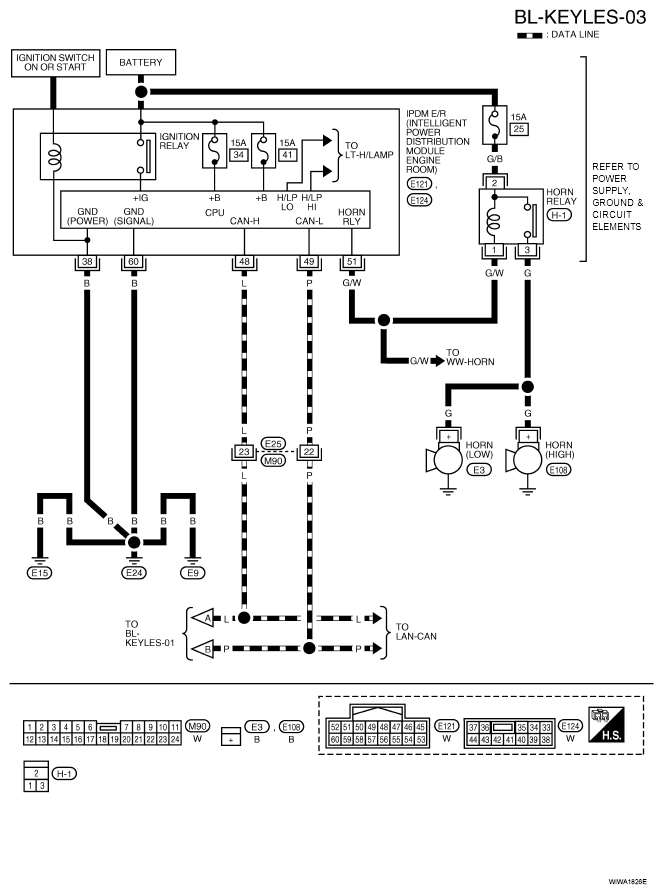

Fig 3: Remote Keyless Entry System Wiring Diagram (3 Of 3)
