Section 366 (Transfer Case)
›
4WD System
›
System Description
›
4WD Shift Switch And Indicator Lamp
›
Notes
4WD Shift Switch And Indicator Lamp: Notes
WARNING:
This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

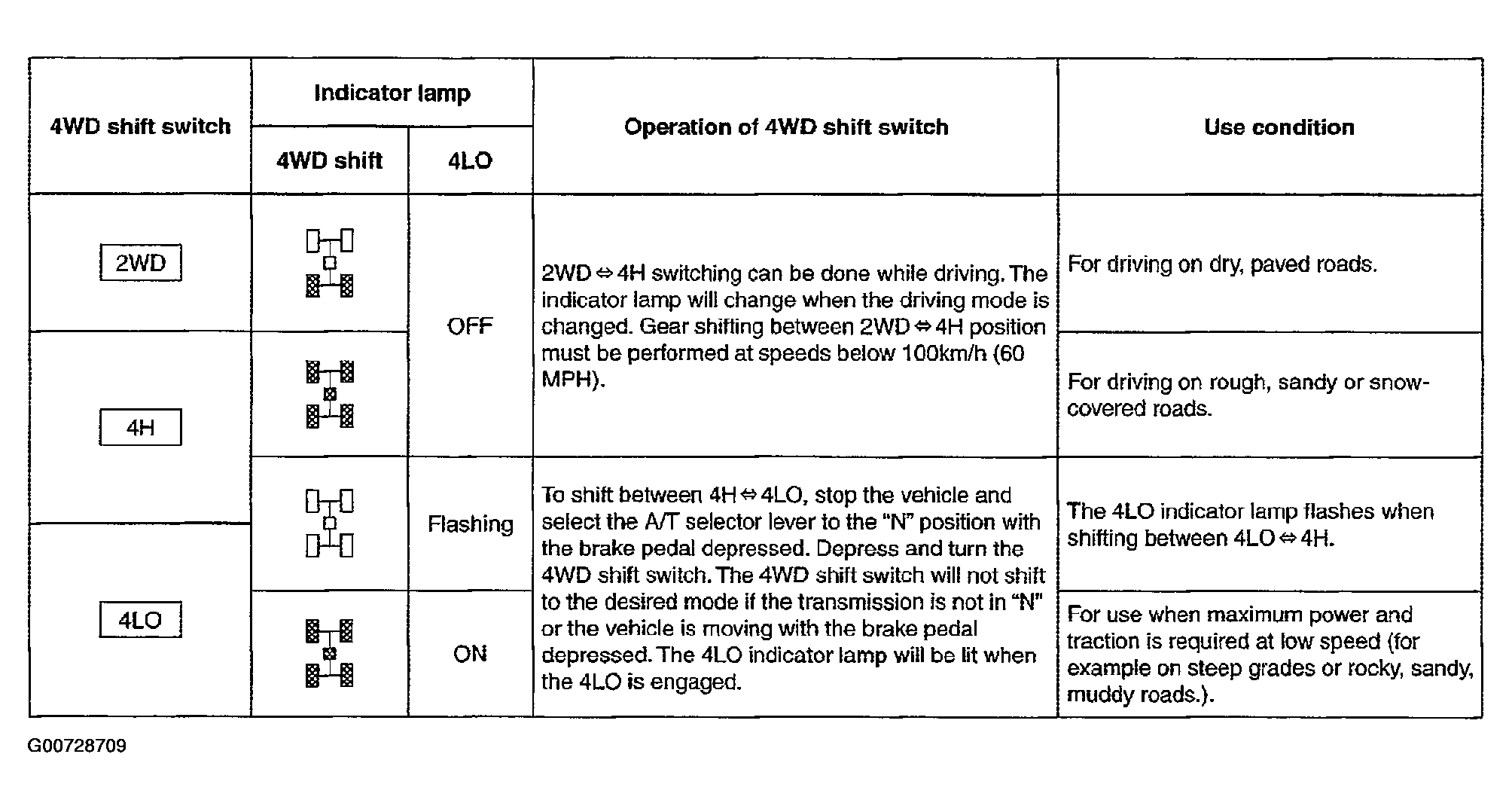

Fig 1: 4WD Shift Switch And Indicator Lamp Operation/Use Condition
Courtesy of NISSAN MOTOR CO., U.S.A.
