Consult-II Reference Value In Data Monitor Mode

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Data are reference value.

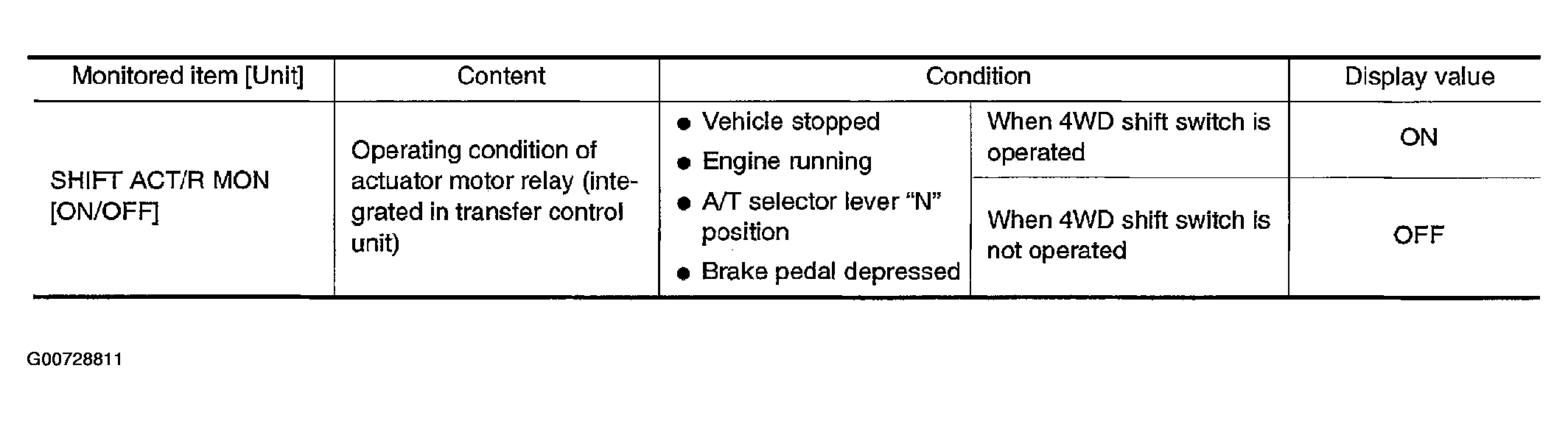

Fig 1: CONSULT-II Reference Values

Courtesy of NISSAN MOTOR CO., U.S.A.
