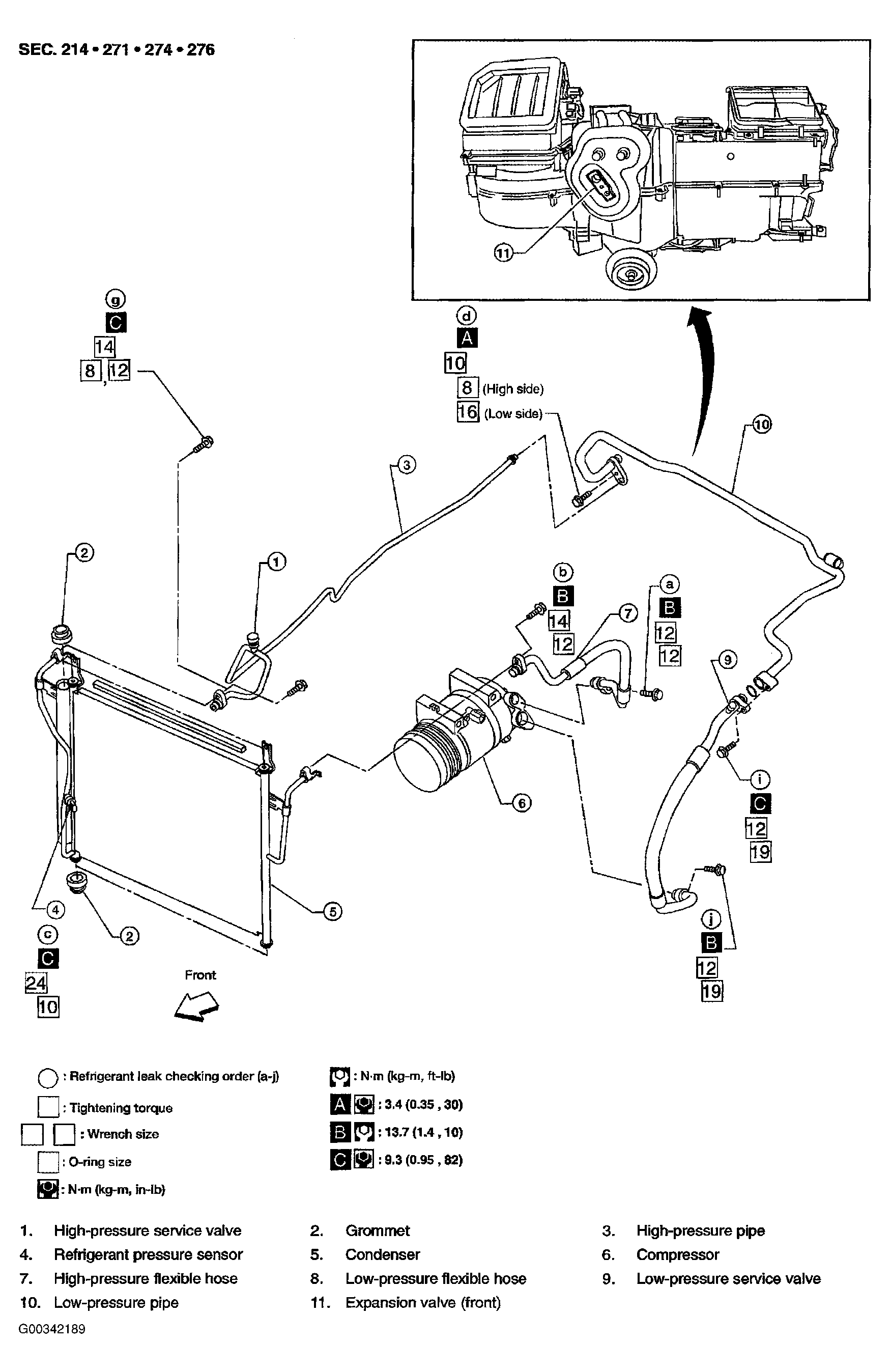

Removal & Installation: Components
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to PRECAUTIONS FOR REFRIGERANT CONNECTION .
