Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Install the RH heat shield bolts.
1. RH heat shield bolts : 5.1 - 6.5 N.m (0.52 - 0.66 kg-m, 46 - 57 in-lb)

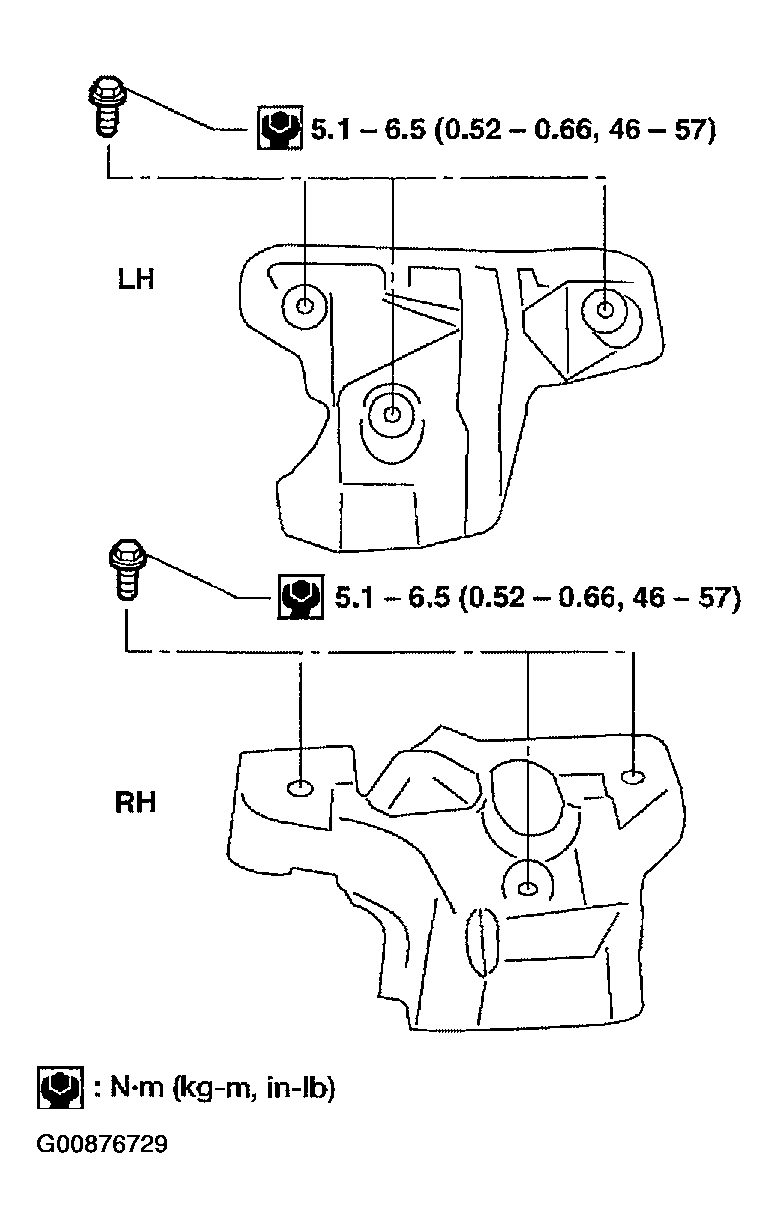

Fig 1: Install The RH Heat Shield Bolts

Courtesy of NISSAN MOTOR CO., U.S.A.
