4 A/T

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

When installing the transaxle to the engine, use the specified tightening torque in the order shown.

Fig 1: When Installing The Transaxle To The Engine, Use The Specified Tightening Torque In The Order Shown

Courtesy of NISSAN MOTOR CO., U.S.A.

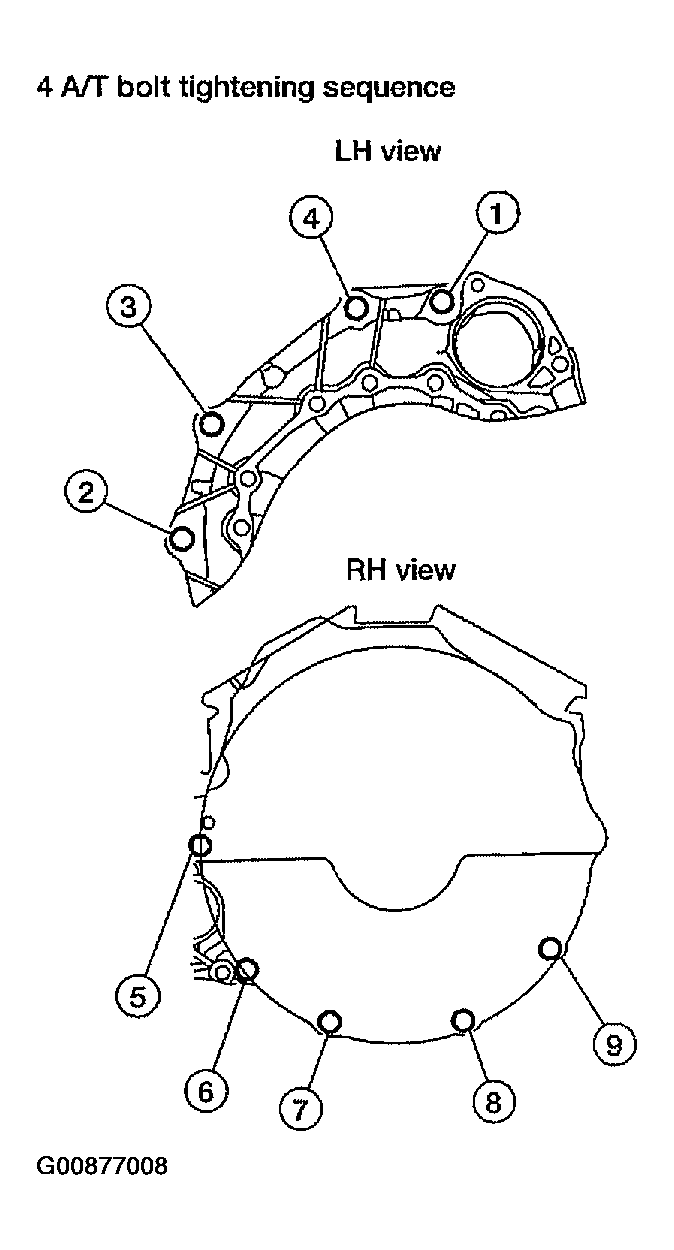

Fig 2: 4 A/T Bolt Tightening Sequence

Courtesy of NISSAN MOTOR CO., U.S.A.
