Removal And Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

Apply sealant to the areas on the front corners. Refer to REMOVAL AND INSTALLATION .
Use Genuine Silicone RTV Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Tighten the rocker cover bolts in two steps in the order shown.
1. Rocker cover bolts
  1. Step 1 : 0.96 - 2.96 N.m (0.10 - 0.30 kg-m, 9 - 26 in-lb)
  2. Step 2 : 7.33 - 9.33 N.m (0.75 - 0.95 kg-m, 65 - 82 in-lb)

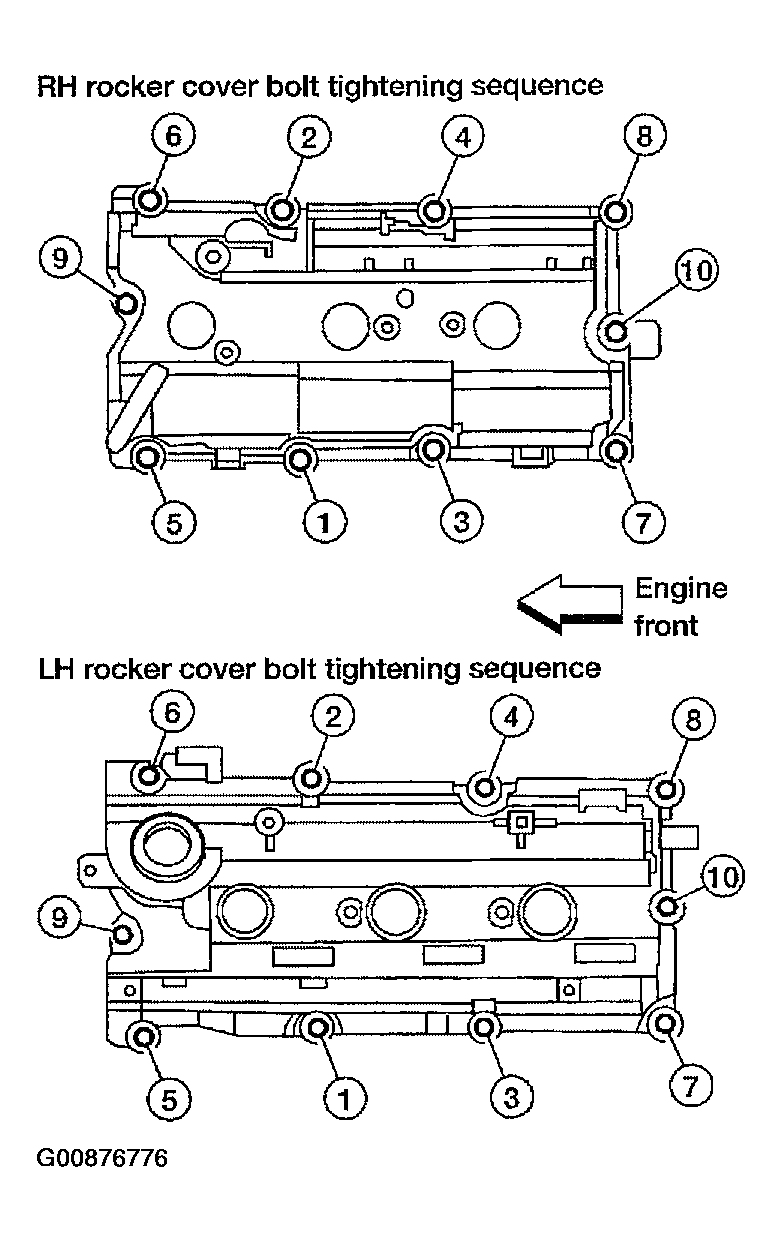

Fig 1: Tighten The Rocker Cover Bolts In Two Steps In The Order Shown
Courtesy of NISSAN MOTOR CO., U.S.A.
Install engine cover.

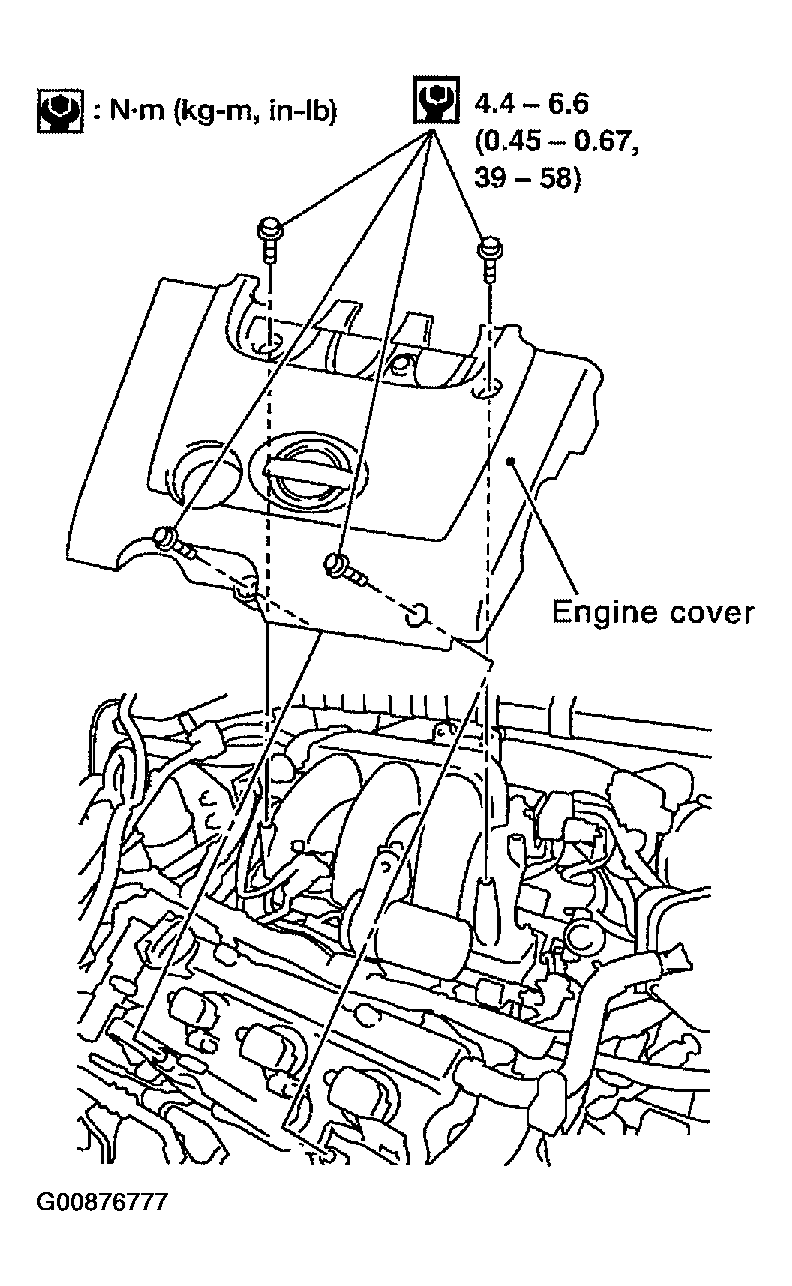

Fig 2: Install Engine Cover

Courtesy of NISSAN MOTOR CO., U.S.A.
