Cross-Sectional View: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

RS6F51A

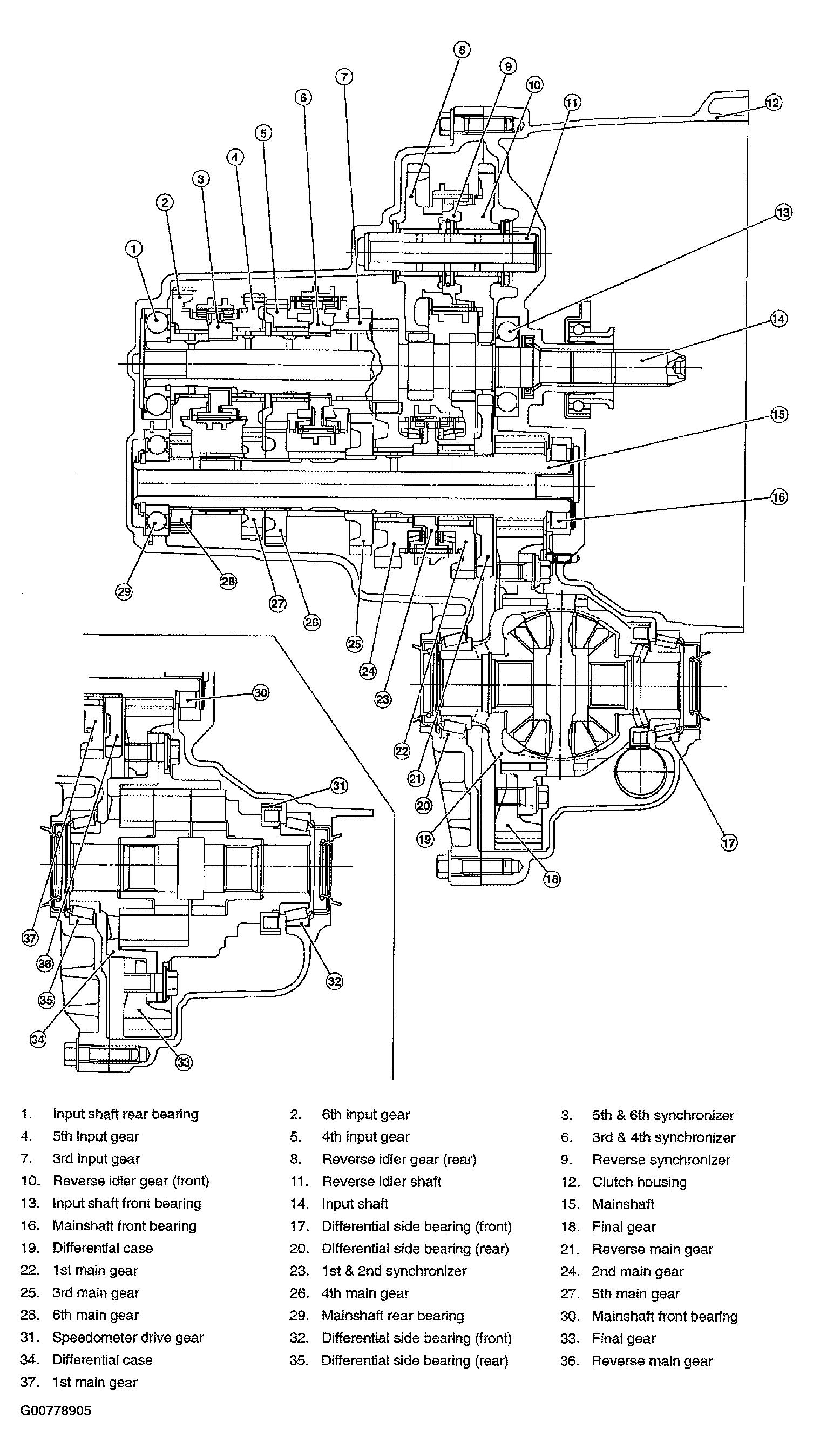

Fig 1: Cross-Sectional View (RS6F51A)

Courtesy of NISSAN MOTOR CO., U.S.A.
