On Board Diagnosis Logic: Notes

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

This self-diagnosis has the one trip detection logic.

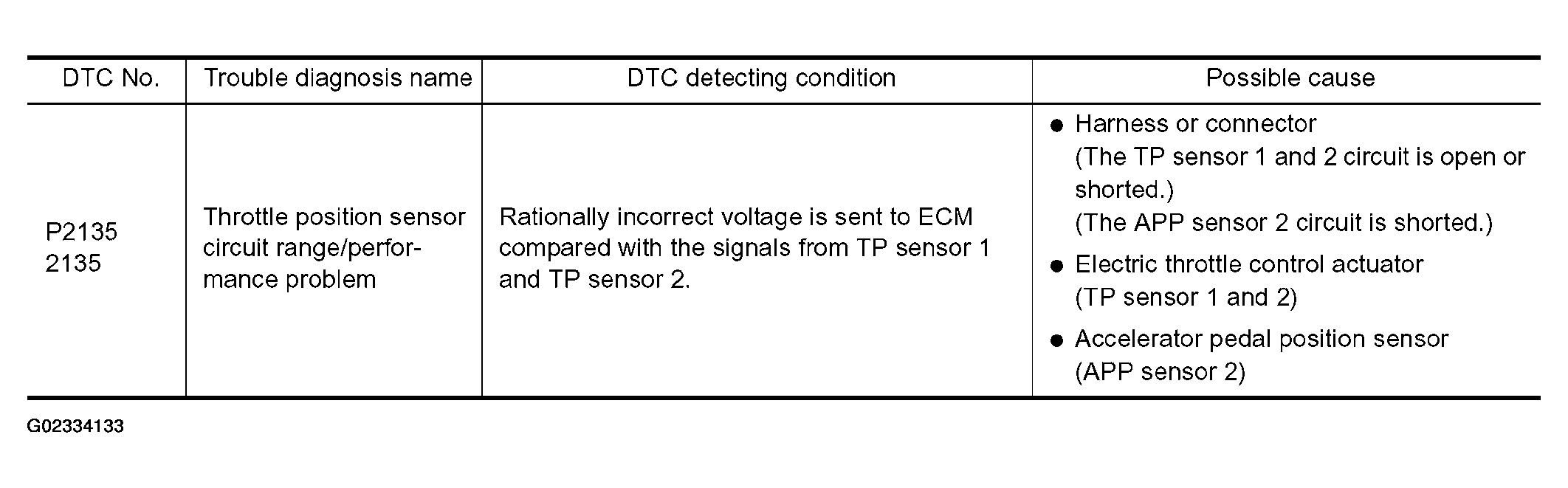

Fig 1: On Board Diagnosis Logic Chart (DTC P2135 TP SENSOR)

Courtesy of NISSAN MOTOR CO., U.S.A.
