Terminals and Reference Value for Multifunction Switch
WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

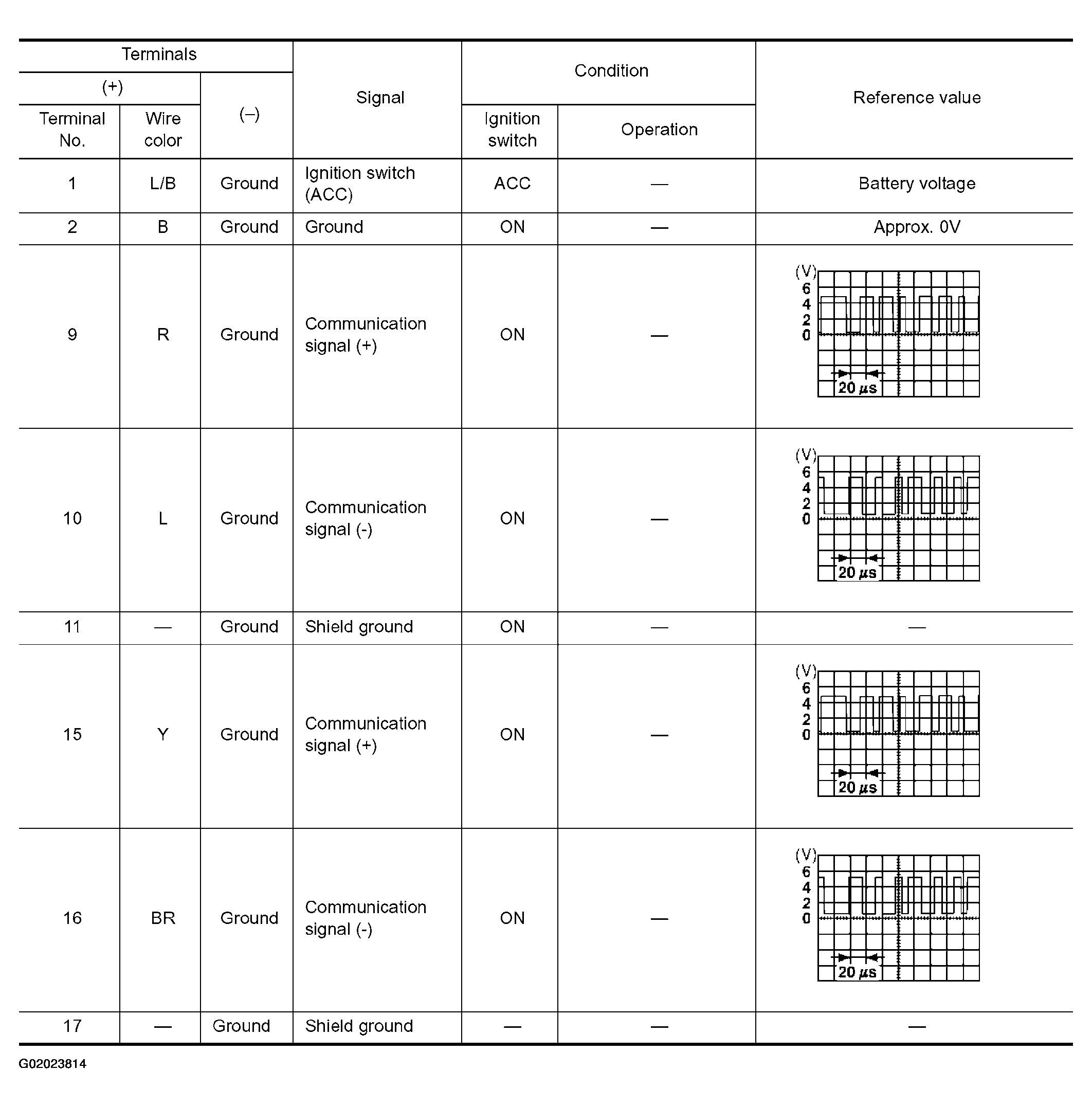

Fig 1: Vehicle Information And Integrated Switch System Terminals and Reference Value Table (For Multifunction Switch)
