Terminals and Reference Value for Audio Unit

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For additional information, see SYSTEM WIRING DIAGRAMS article.

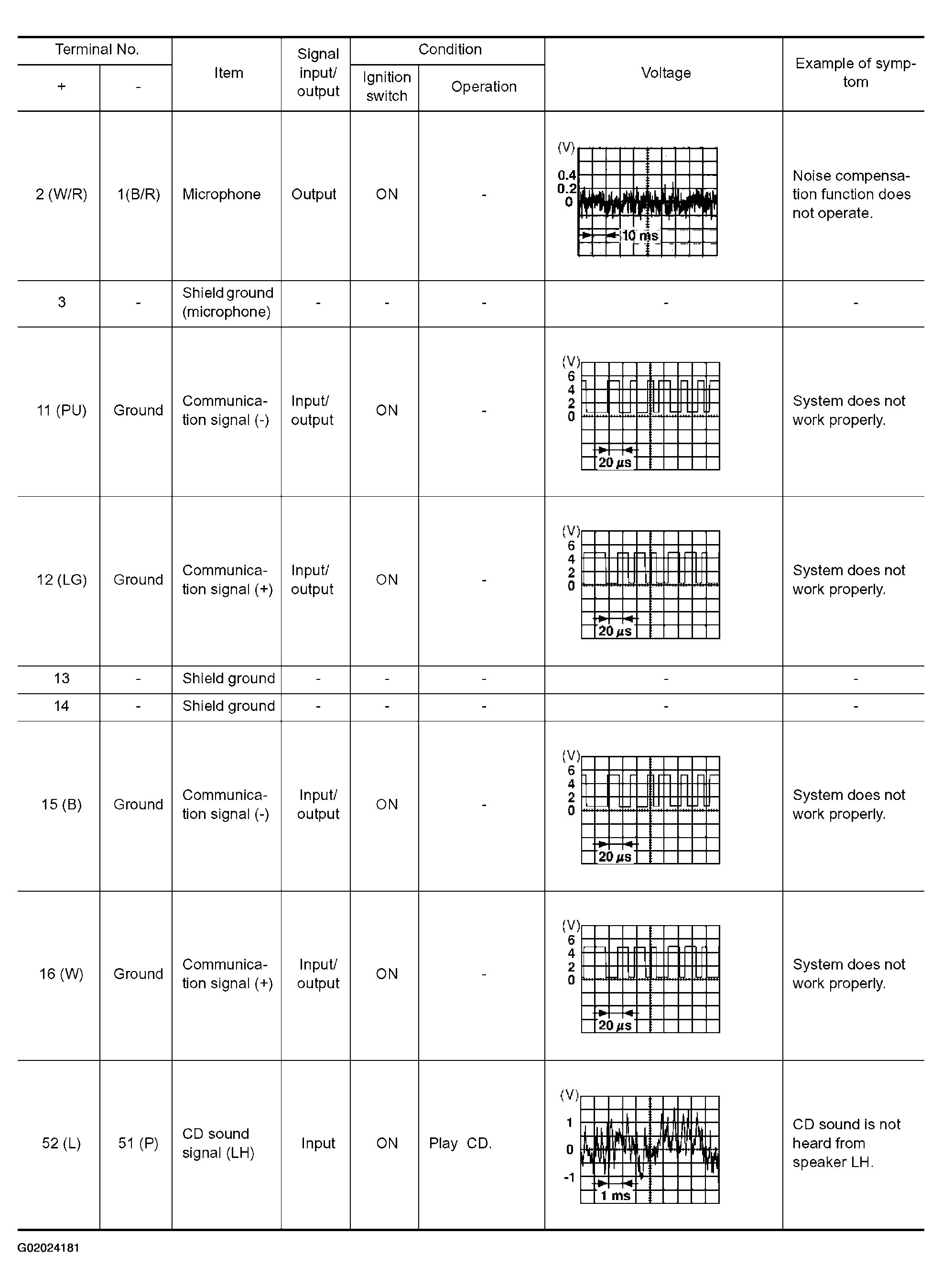

Fig 1: Identifying Audio Unit Terminals And Reference Value Chart (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

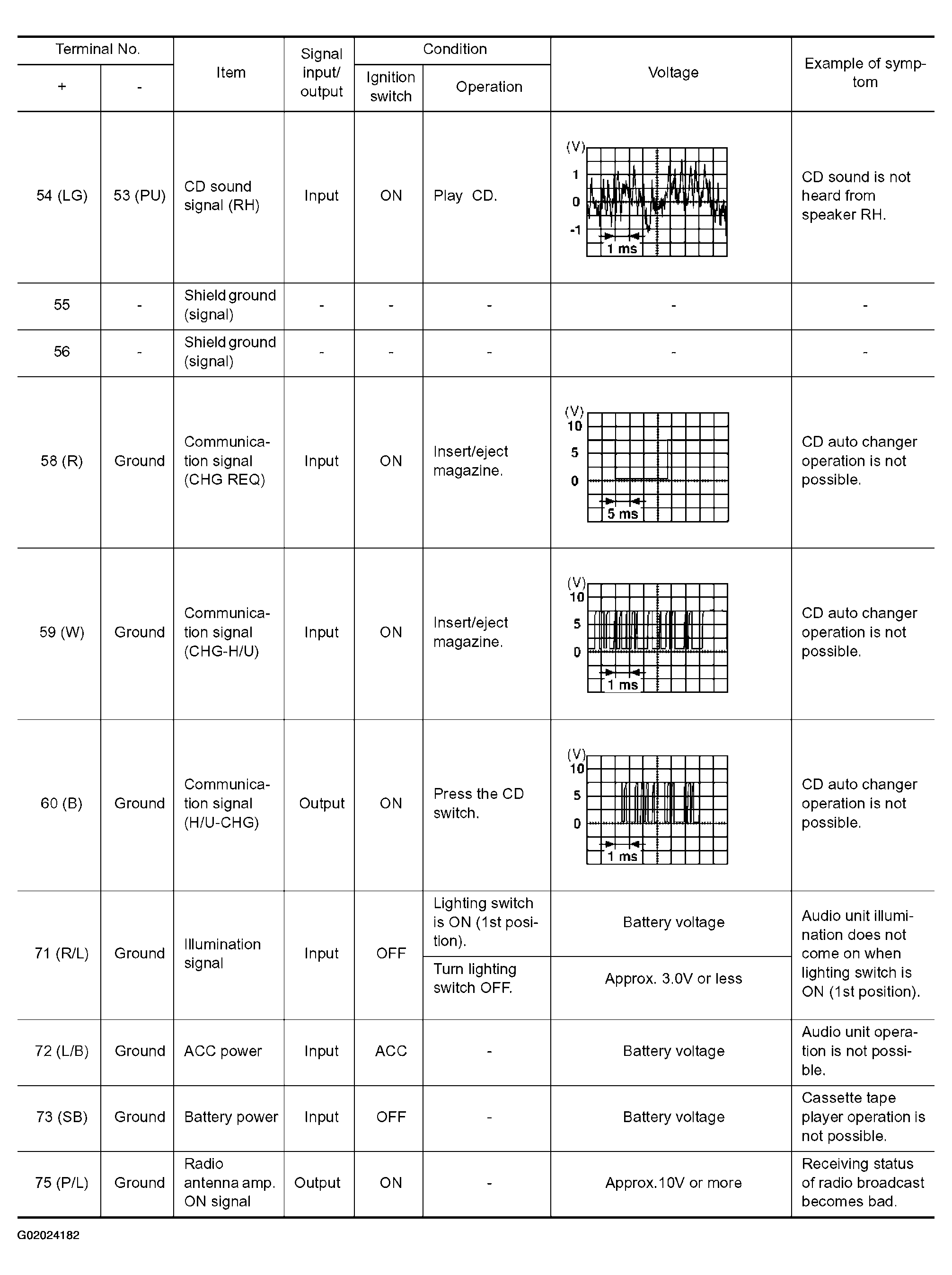

Fig 2: Identifying Audio Unit Terminals And Reference Value Chart (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

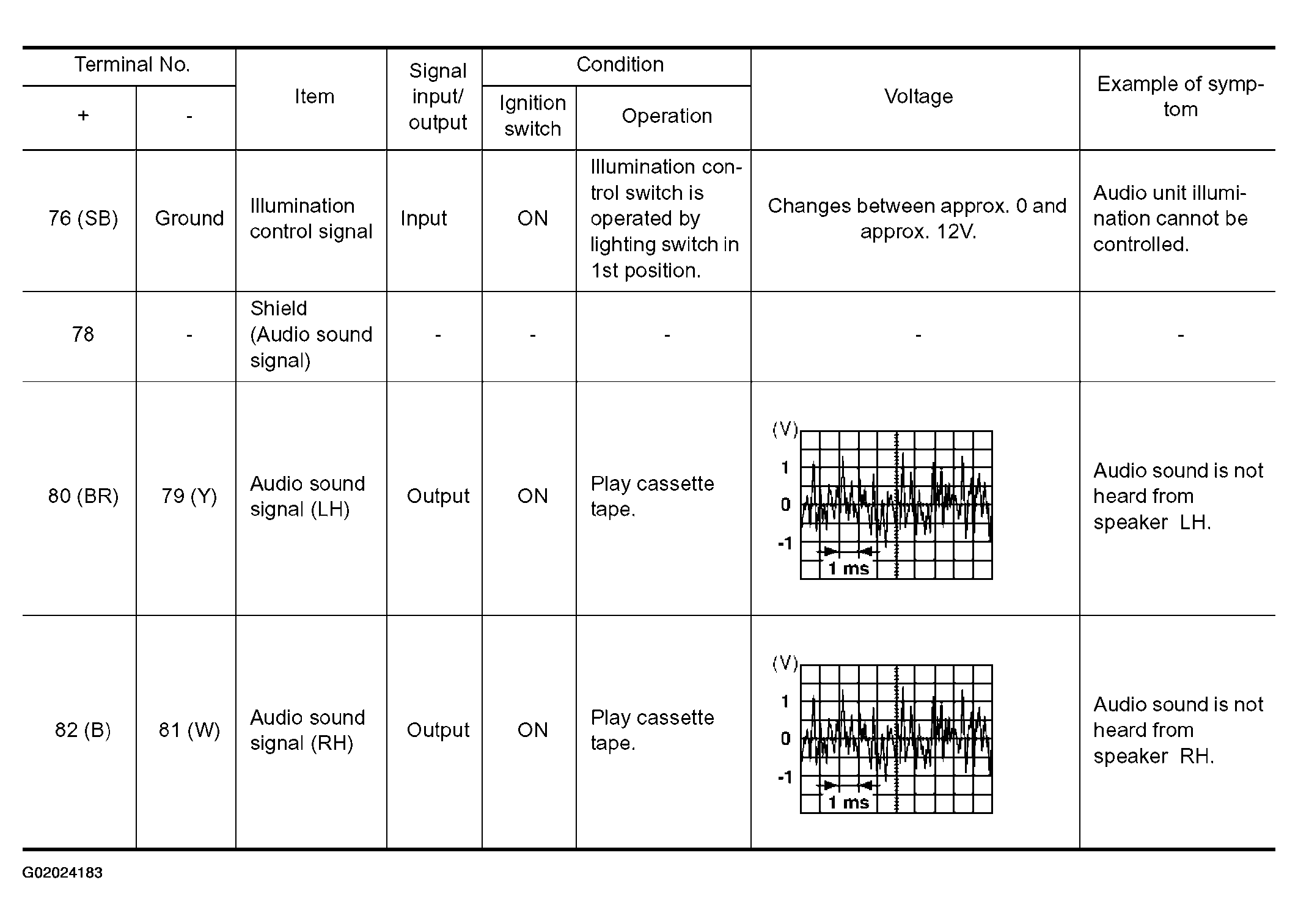

Fig 3: Identifying Audio Unit Terminals And Reference Value Chart (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
