Propeller Shaft Assembly: Installation

1. Apply grease to the flexible coupling centering bushings.

   Grease:

   Molybdenum Disulphide Lithium Base, NLGI No. 2

   Fig 1: Applying Grease To Flexible Coupling Centering Bushings

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the propeller shaft from the vehicle's rear and connect the transmission and differential.
   NOTE: Support the center support bearing by hand so that the transmission and intermediate shaft, and propeller shaft and differential, remain in a straight line.
3. Temporarily install the 2 center support bearing set bolts with the adjusting washers.
   Fig 2: Installing Center Support Bearing Set Bolts With Adjusting Washers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the adjusting washers which were removed.

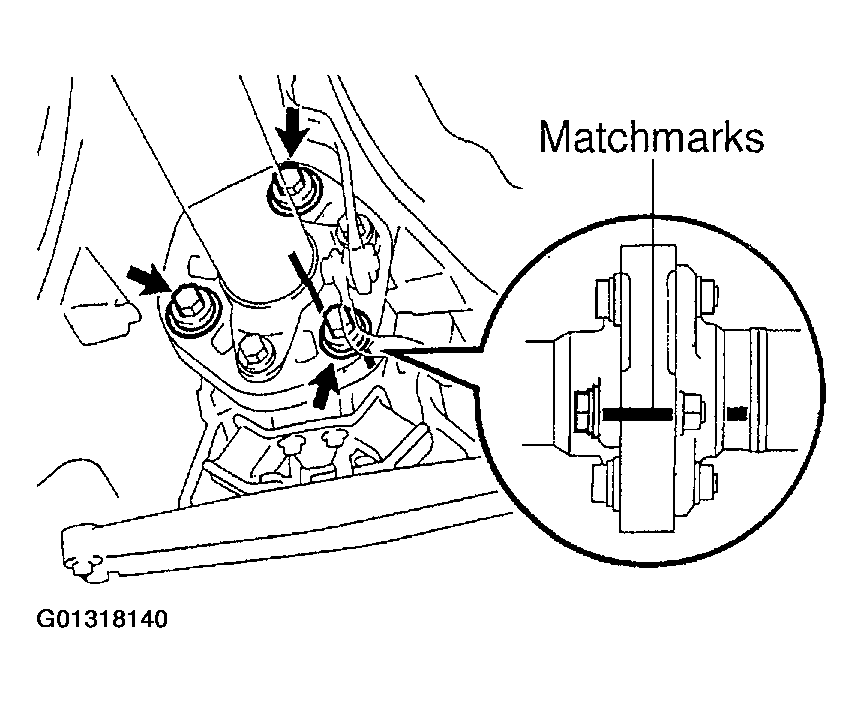

4. If reusing the propeller shaft that was once removed. Align the matchmarks and connect the propeller shaft to the transmission/differential.
   Fig 3: Aligning Propeller Shaft To Transmission/Differential Matchmarks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. If using a new propeller shaft (w/ Phasemarks): Install the propeller shaft phasemarks and Differential/Transmission phasemarks so that their respective alignment phasemarks match.

   If the propeller shaft phasemarks and differential/transmission phasemarks do not align, install the propeller shaft and differential alignment phasemarks as close together as possible.

   Fig 4: Aligning Propeller Shaft & Differential/Transmission Phasemarks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. If using a new propeller shaft (w/o Phasemarks): Install the propeller shaft.
7. Install and torque the 3 bolts, washers and nuts.
   NOTE: The bolts should be installed from the propeller shaft side.

   Torque: 79 N.m (805 kgf.cm, 58 ft.lbf)

8. Torque the 2 center support bearing set bolts.

   Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)

   HINT:

   Adjust the center support bearing to keep the intervals as shown with the vehicle in the unladen condition.

   Under the same condition, check if the center line of the center support bearing is at right angles to the shaft axial direction.

   Fig 5: Verifying Center Line Of Center Support Bearing At Right Angles To Shaft Axial Direction

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

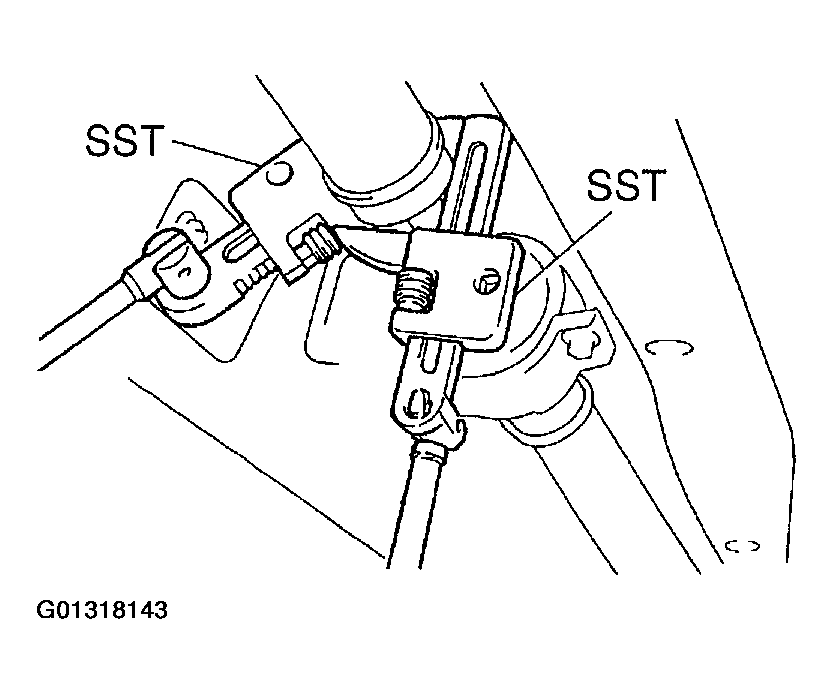

9. Using SST, tighten the adjusting nut.

   SST 09922-10010

   Torque: 50 N.m (515 kgf.cm, 37 ft.lbf)

   HINT:

   Use a torque wrench with a fulcrum length of 34.5 cm (13.6 in.).

   Fig 6: Tightening Adjusting Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(See  JOINT ANGLE   )

Install the propeller shaft heat insulator with the 2 bolts.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

Install the heat insulator and torque the 4 bolts.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

(See  INSTALLATION  )
