Section 904 (Front Door)
›
Components
Section 904 (Front Door): Components
WARNING:
This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

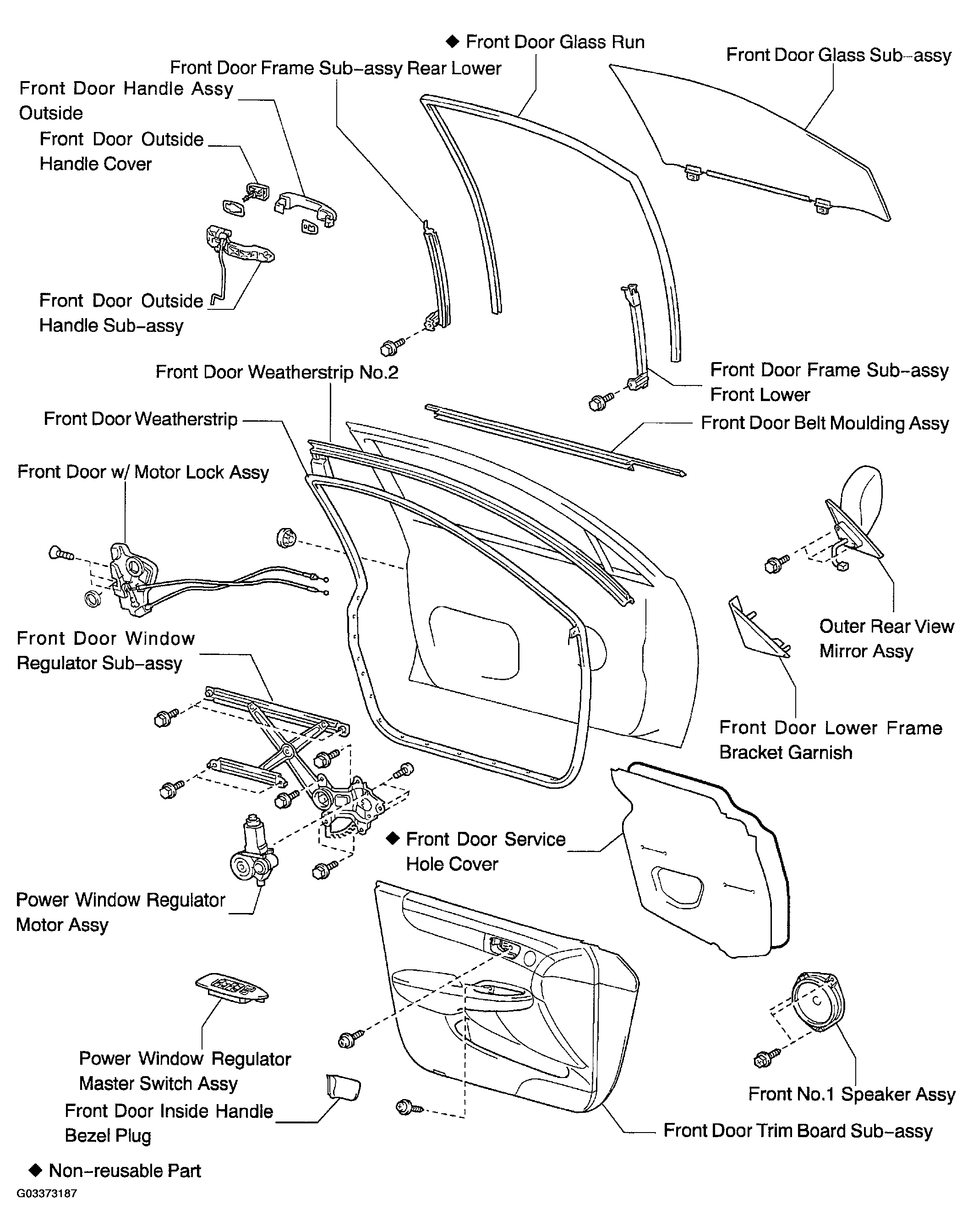

Fig 1: Exploded View Of Front Door Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
