Lower And Upper Bodies

WARNING: This page is about a different variant/trim than selected.

Check to see that retainer plates are properly positioned in lower body.

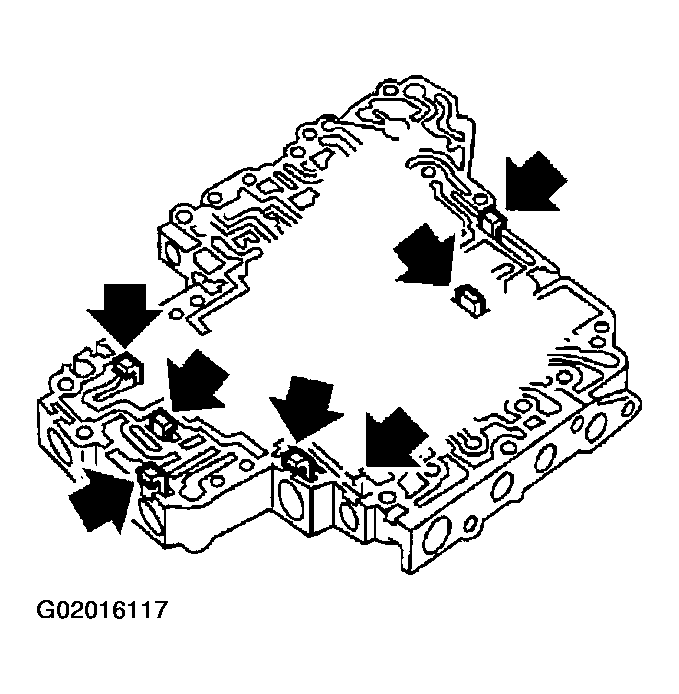

Fig 1: Identifying Retainer Plates Position In Lower Body
Courtesy of NISSAN MOTOR CO., U.S.A.
Check to see that retainer plates are properly positioned in upper body.

Fig 2: Identifying Retainer Plates Position In Upper Body
Courtesy of NISSAN MOTOR CO., U.S.A.
