Transaxle Case

WARNING: This page is about a different variant/trim than selected.

Remove back-up lamp switch, PNP switch, drain plug, and filler plug from transaxle case.

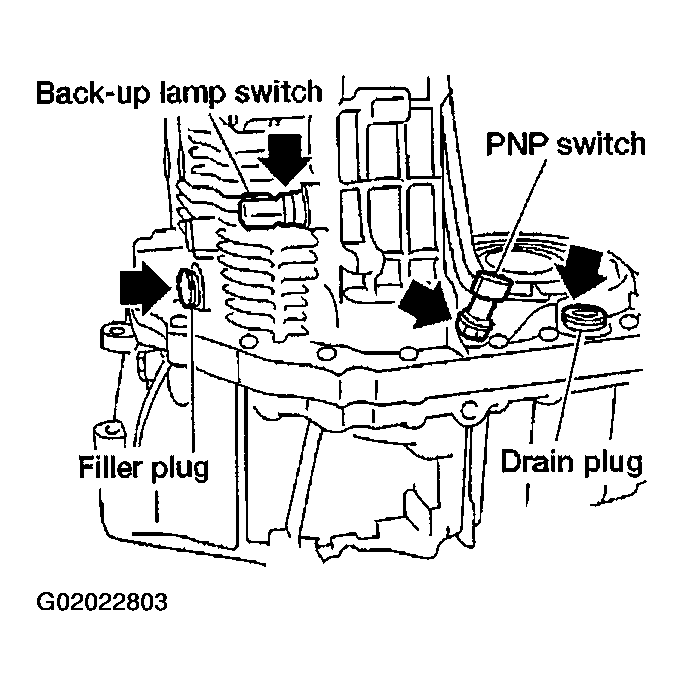

Fig 1: Locating Switches & Plugs
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap rings from reverse idler shaft.

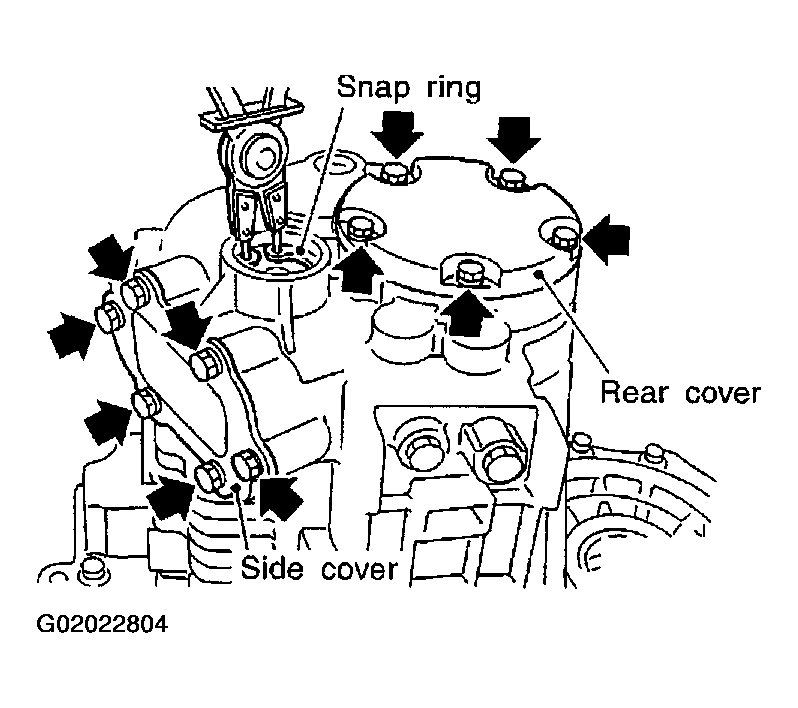

Fig 2: Locating Idler Shaft Snap Ring, Side & Rear Covers
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove side cover and rear cover from case.
Remove O-ring and mainshaft bearing adjusting shim.
Remove reverse idler gear shaft.
1. Attach bolt (M6) to thread of reverse idler gear shaft end.

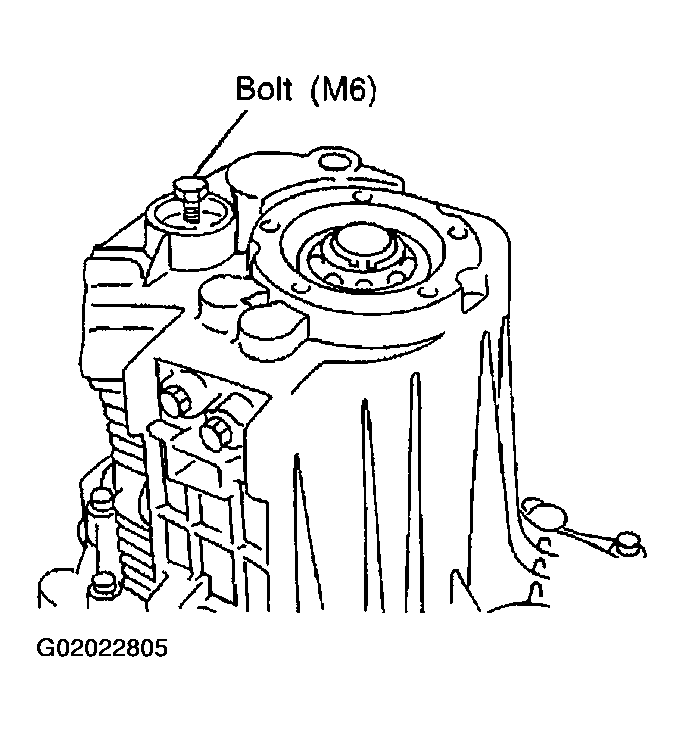

  Fig 3: Identifying Bolt (M6)
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Pull out the attached bolt, and remove reverse idler gear shaft from case.
Remove reverse idler gear, thrust washer (front, rear), and bearing from case.
Remove snap ring of mainshaft bearing from case.

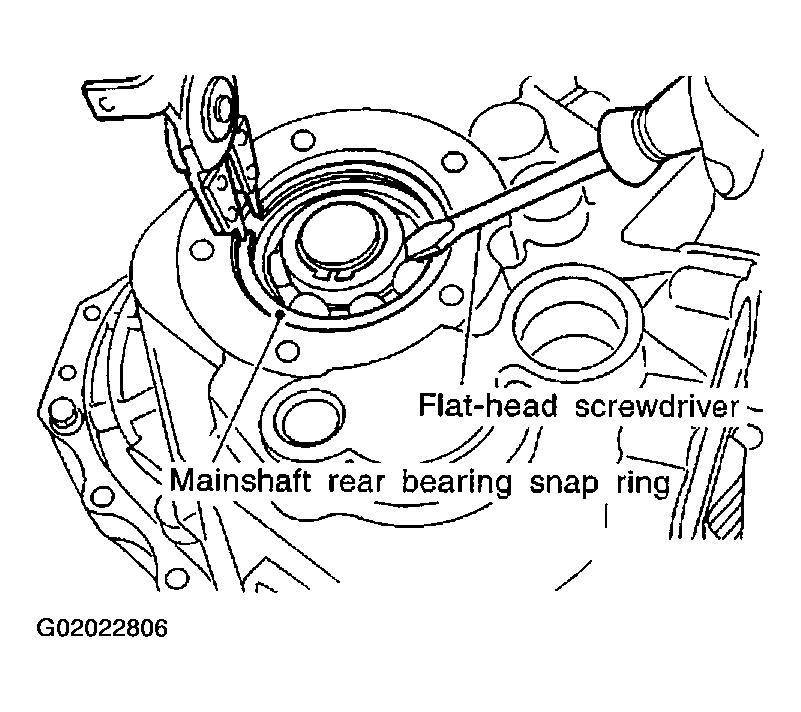

Fig 4: Removing Snap Ring Of Mainshaft Rear Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove check plugs, springs, and check balls from case.

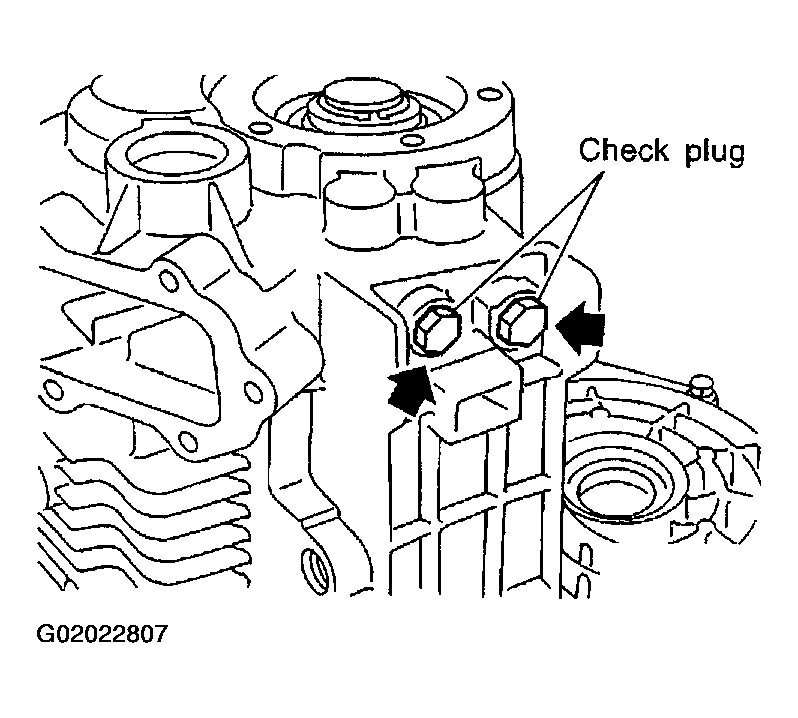

Fig 5: Locating Check Plugs
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove mounting bolts.
Remove input shaft rear bearing adjusting shim from transaxle case.

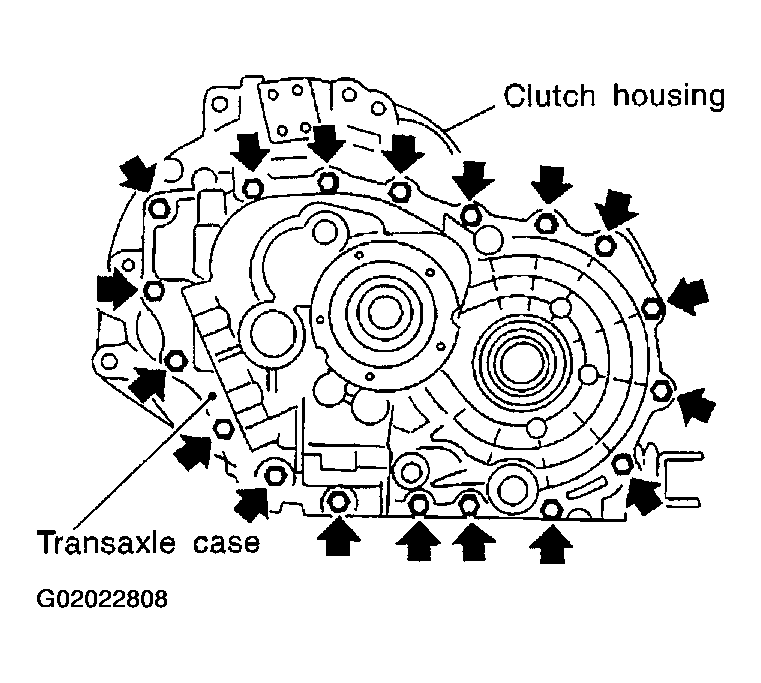

Fig 6: Identifying Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove oil gutter from case.

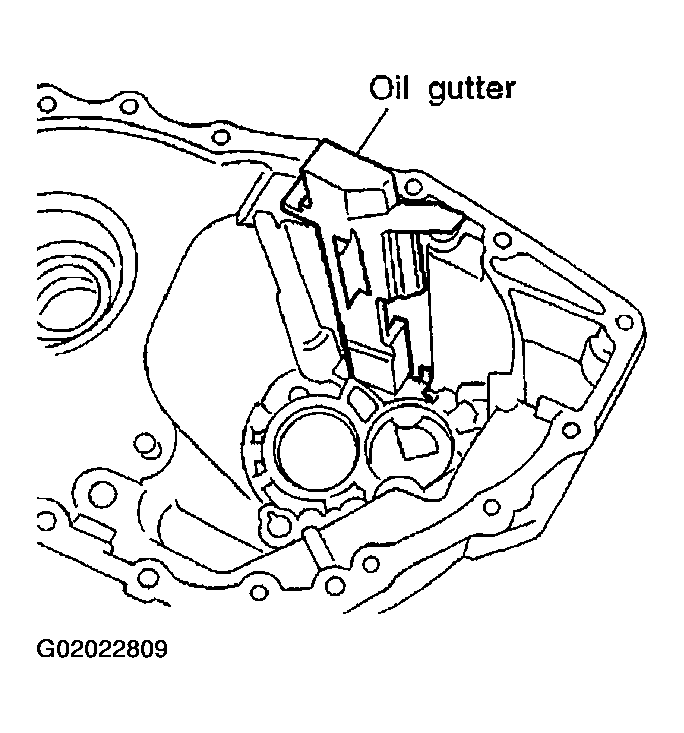

Fig 7: Removing Oil Gutter From Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential side bearing outer race and adjusting shim from case using Tool.

Fig 8: Pulling Differential Side Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential oil seal from case using Tool.

Fig 9: Removing Differential Oil Seal From Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove welch plugs from case using Tool.

Fig 10: Removing Welch Plugs
Courtesy of NISSAN MOTOR CO., U.S.A.
