Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Tighten starter motor to transaxle.
1. Starter motor bolt tightening torque: 31 - 42 N.m (3.2 - 4.3 kg-m, 23 - 31 ft-lb)
Tighten LH and rear mounts to the specified torque. Refer to REMOVAL .
Install transaxle and any part removed.

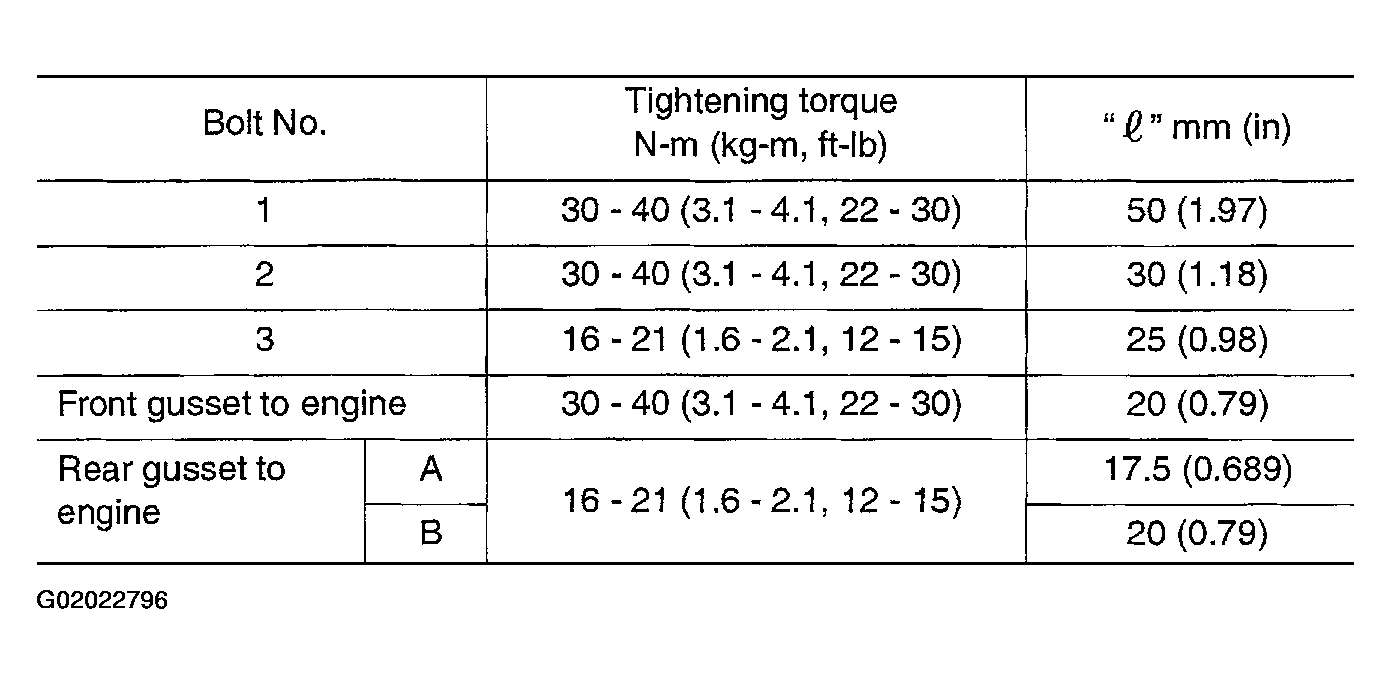

Fig 1: Tightening Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Rear Gusset To Transaxle Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Rear Gusset To Engine Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
