Wheel Alignment Specifications & Adjustment Procedures
›
Specifications
›
Maxima
Wheel Alignment Specifications & Adjustment Procedures: Specifications: Maxima

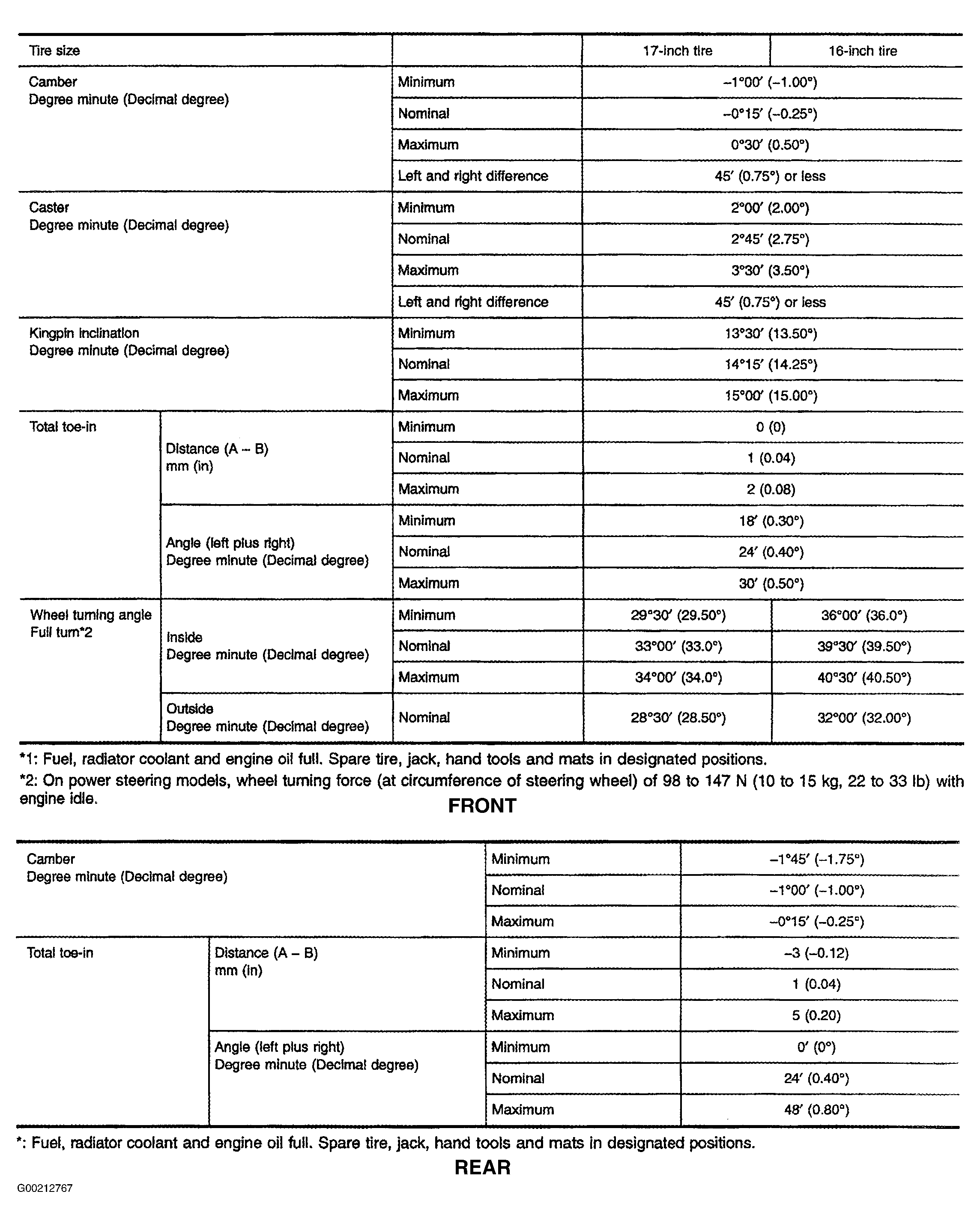

Fig 1: Wheel Alignment Specifications (Maxima)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
