Nissan-Datsun
›
2002
›
Sentra SE-R, Automatic
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle Re4F04B
›
Overall System
›
Circuit Diagram
Circuit Diagram

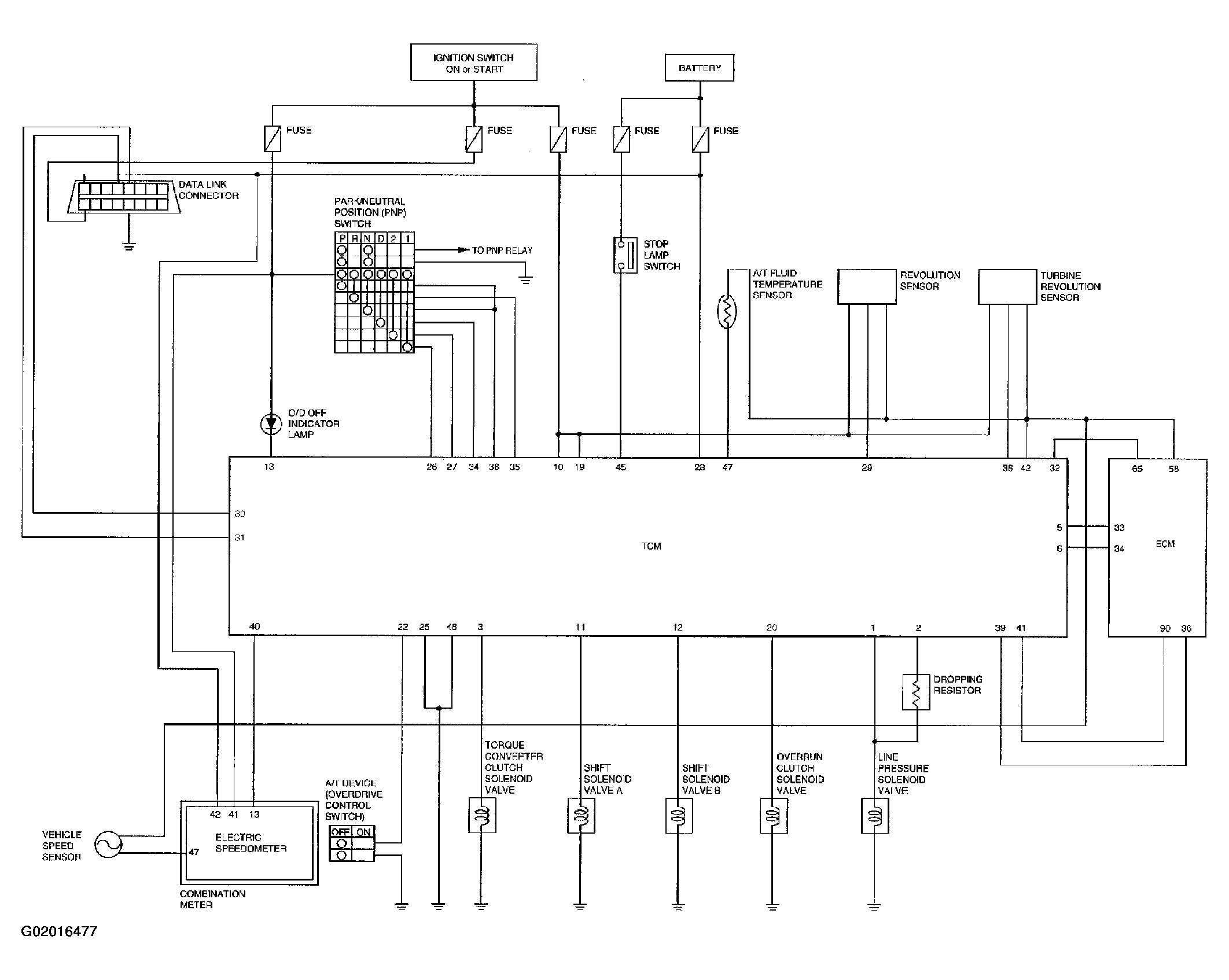

Fig 1: Automatic Transaxle System Circuit Diagram (RE4F04B)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
