Automatic Transaxle Re4F04B
›
Overall System
›
Control System
›
Input/Output Signal Of TCM
Input/Output Signal Of TCM

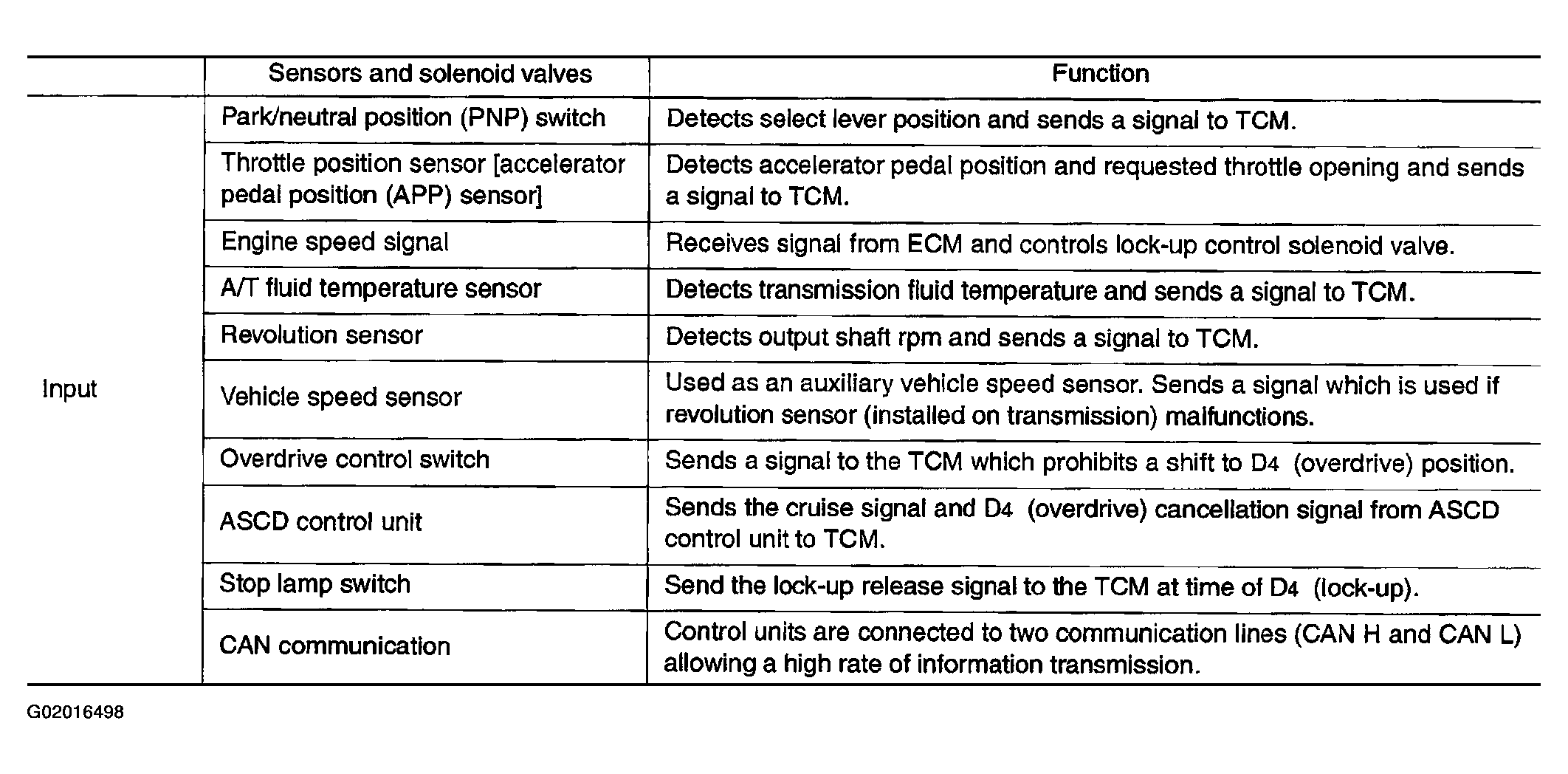

Fig 1: TCM Input Signal Functions Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

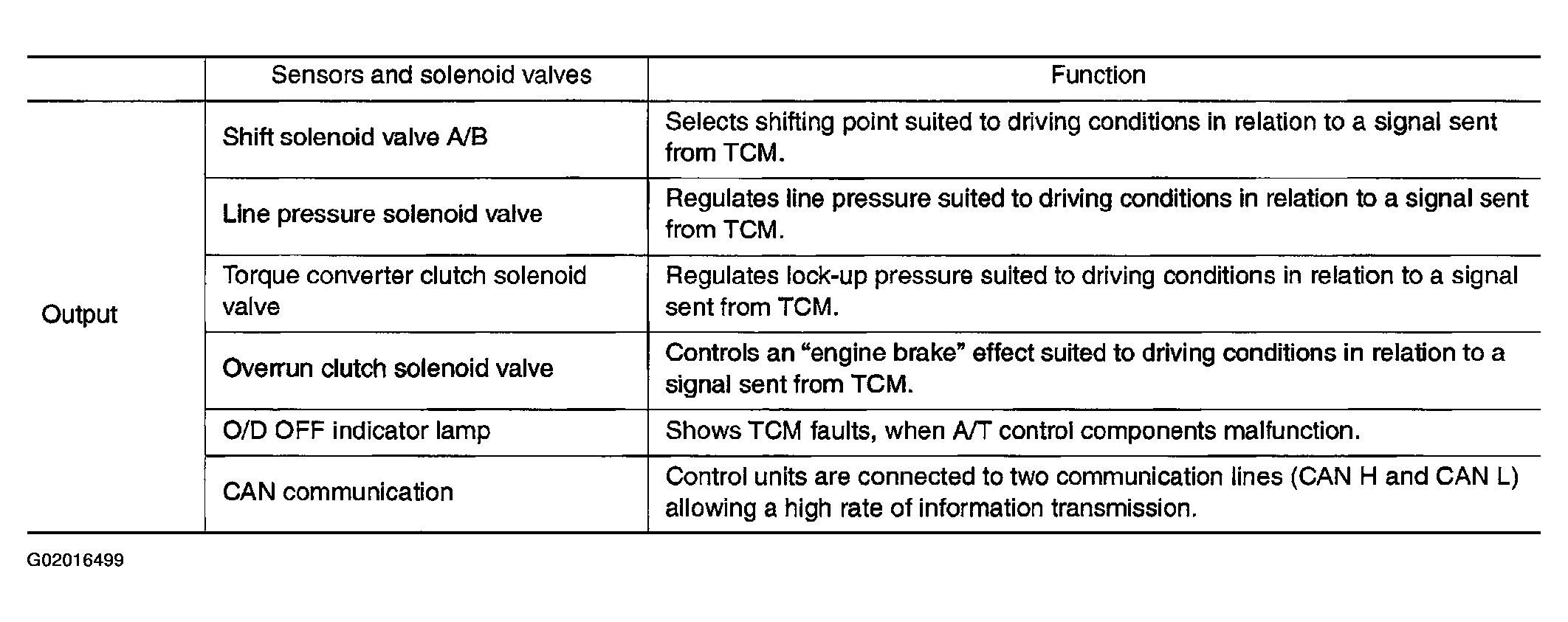

Fig 2: TCM Output Signal Functions Description Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
