Automatic Transaxle Re4F04B
›
Overall System
›
Hydraulic Control Circuit
Hydraulic Control Circuit

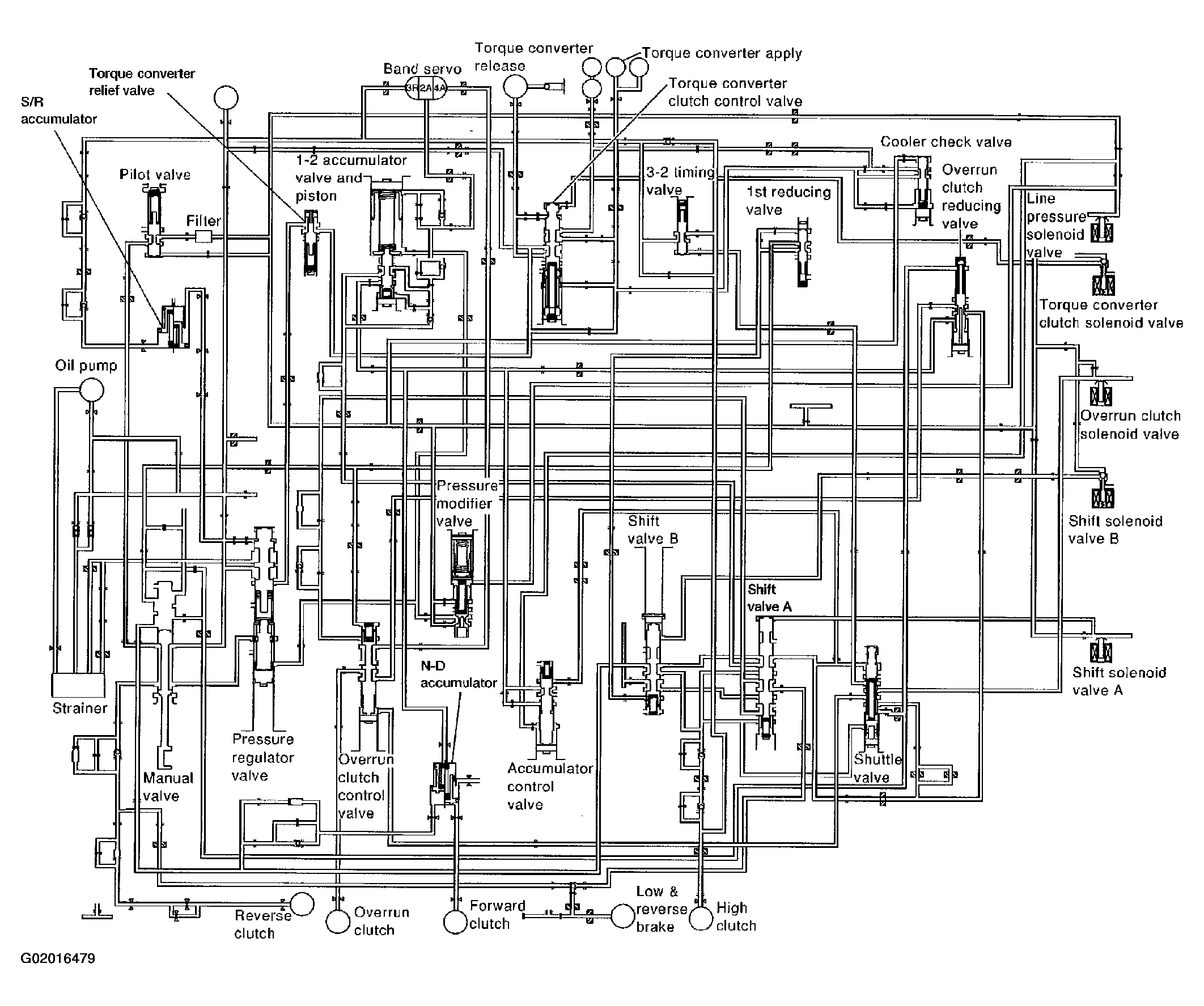

Fig 1: Automatic Transaxle System Hydraulic Control Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
