D4 (O/D) Position
D4 (O/D) Position

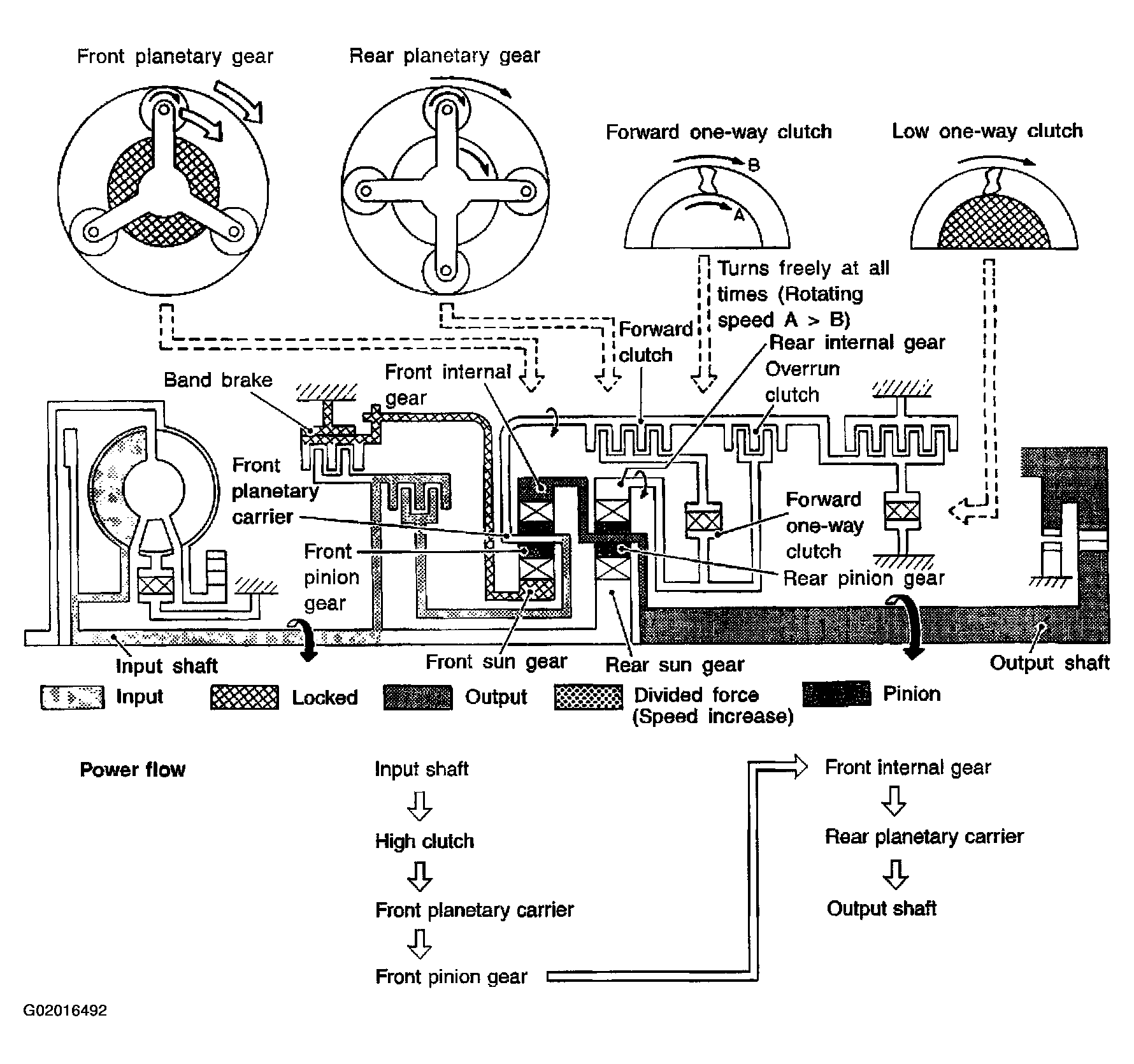

Fig 1: Automatic Transaxle System Power Transmission Diagram (D4 OD Position)
Courtesy of NISSAN MOTOR CO., U.S.A.

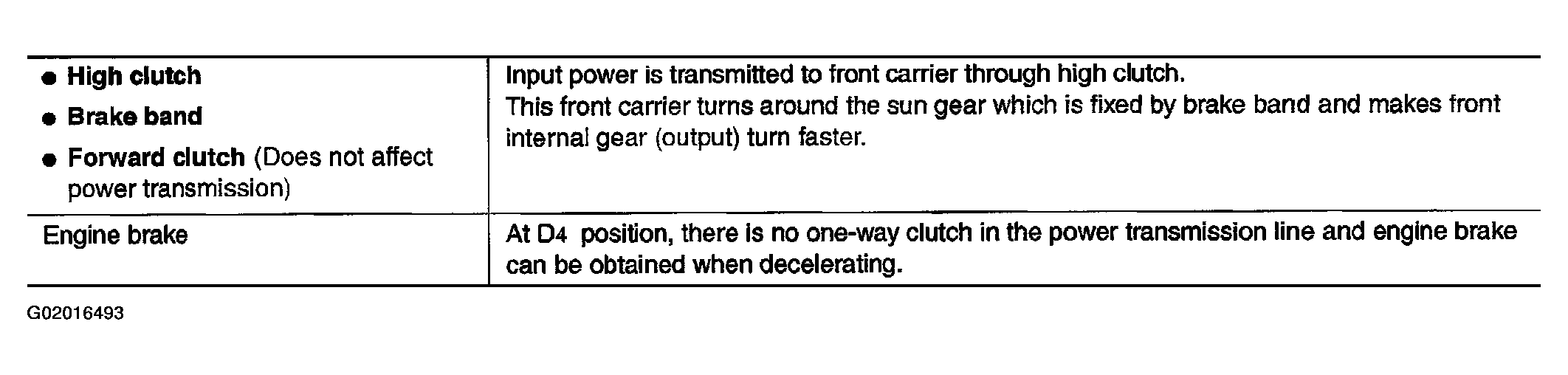

Fig 2: Components Operation Description Chart (D4 OD Position)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
