Automatic Transaxle Re4F04B
›
Overall System
›
Shift Mechanism
›
Power Transmission
›
R Position
R Position

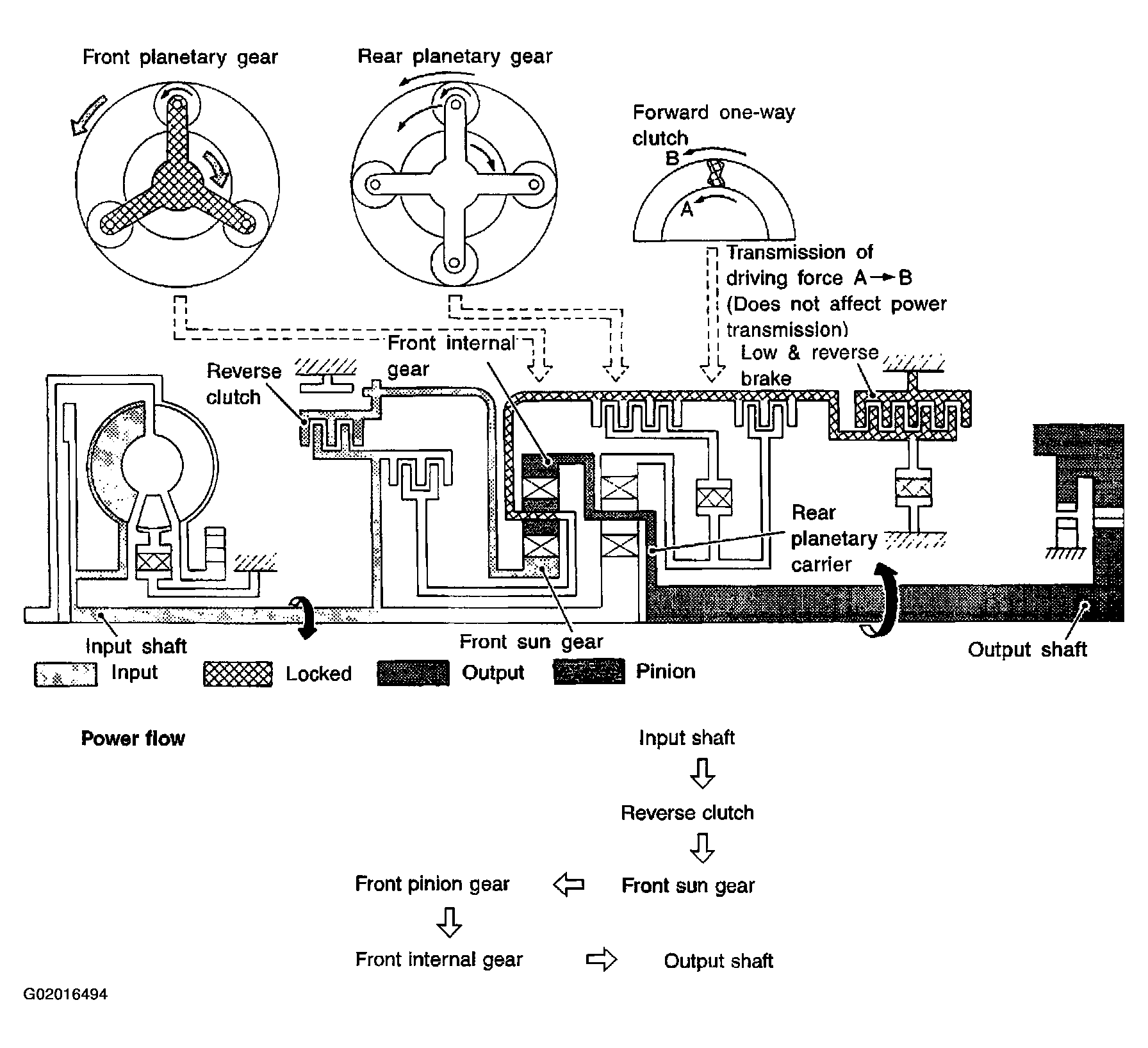

Fig 1: Automatic Transaxle System Power Transmission Diagram (R Position)
Courtesy of NISSAN MOTOR CO., U.S.A.

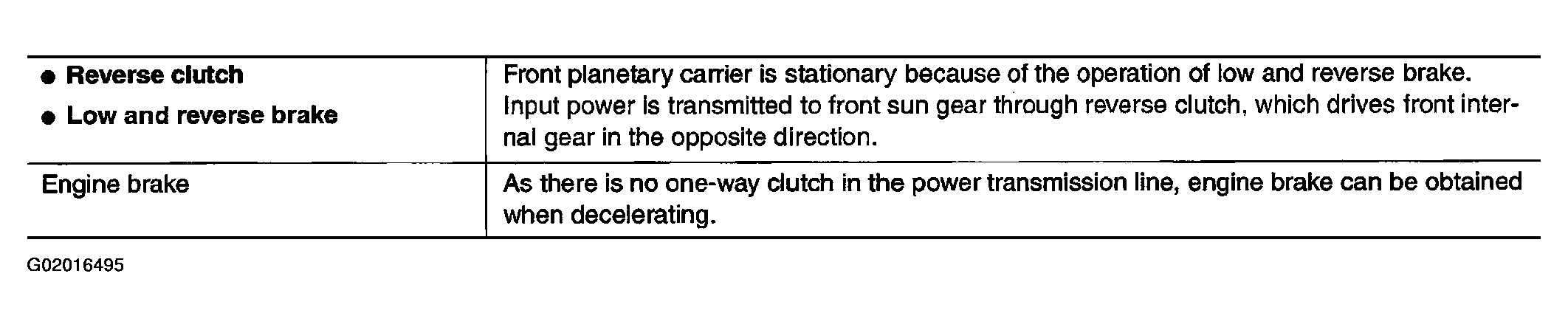

Fig 2: Components Operation Description Chart (R Position)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
