Band Servo Piston Assembly: Components

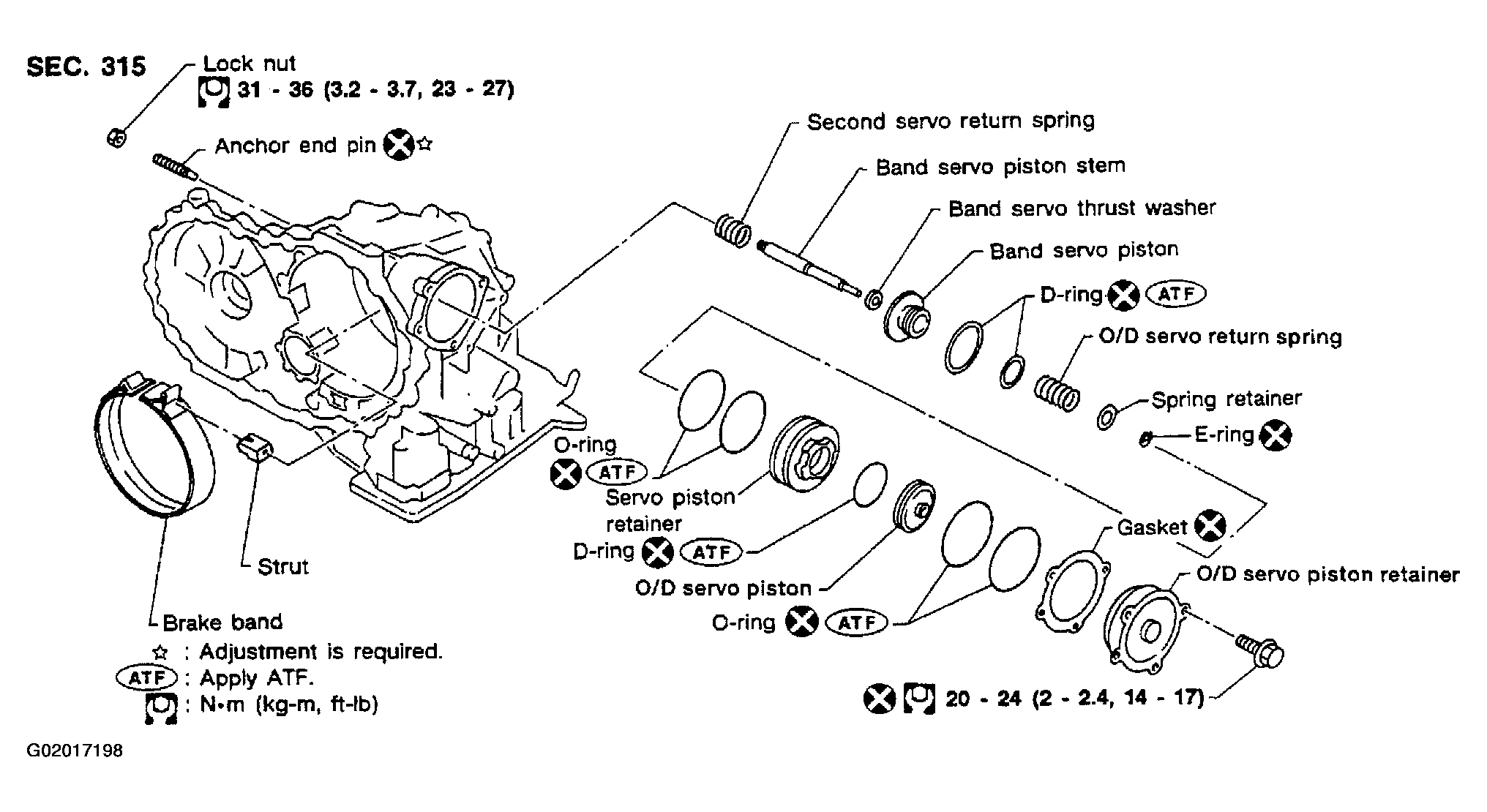

Fig 1: Exploded View Of Band Servo Piston Assembly Components And Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
