Automatic Transaxle Re4F04B
›
Repair For Component Parts
›
Control Valve Assembly
›
Components
Control Valve Assembly: Components

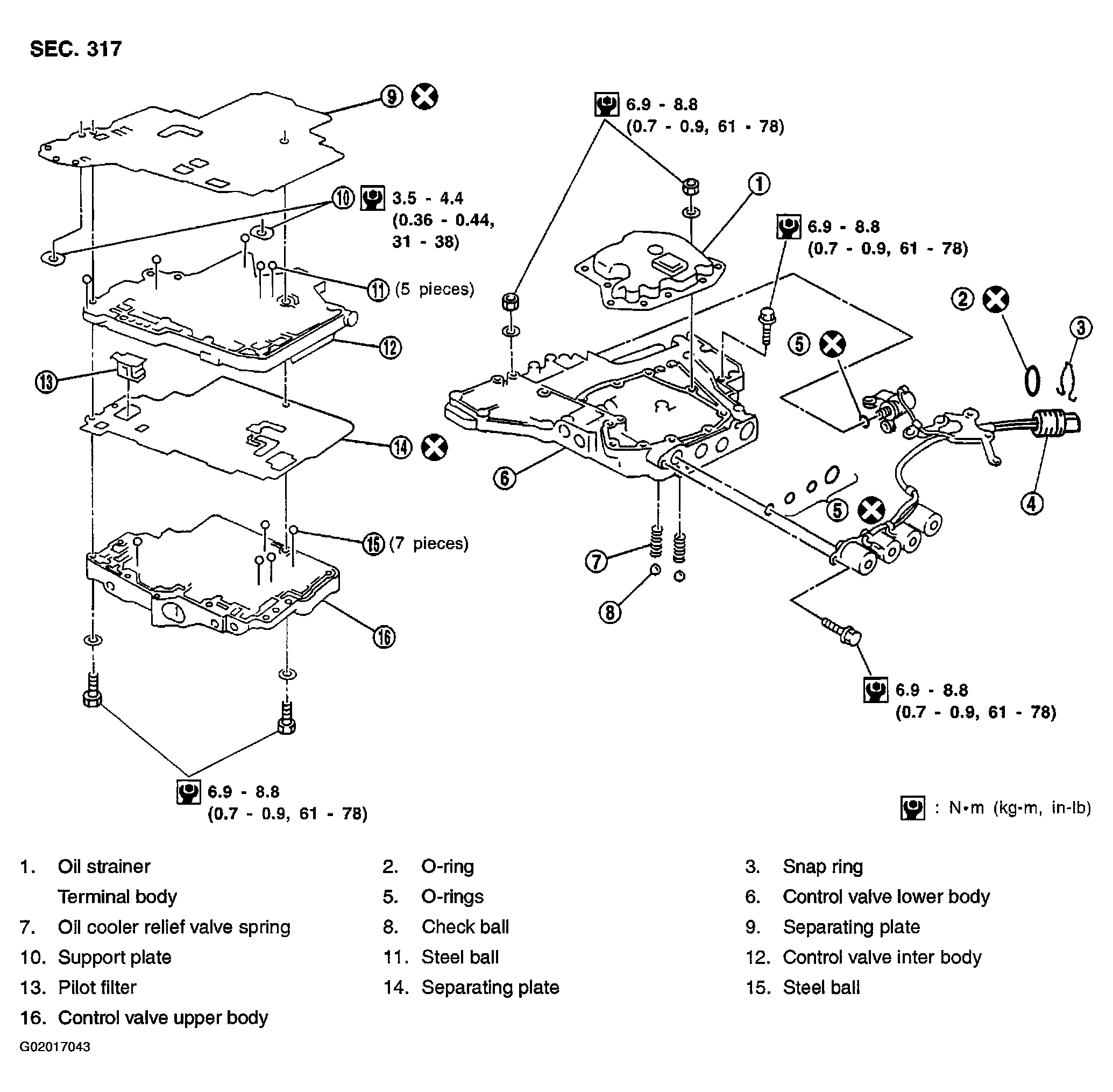

Fig 1: Exploded View Of Control Valve Assembly Components And Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
