Final Drive: Components

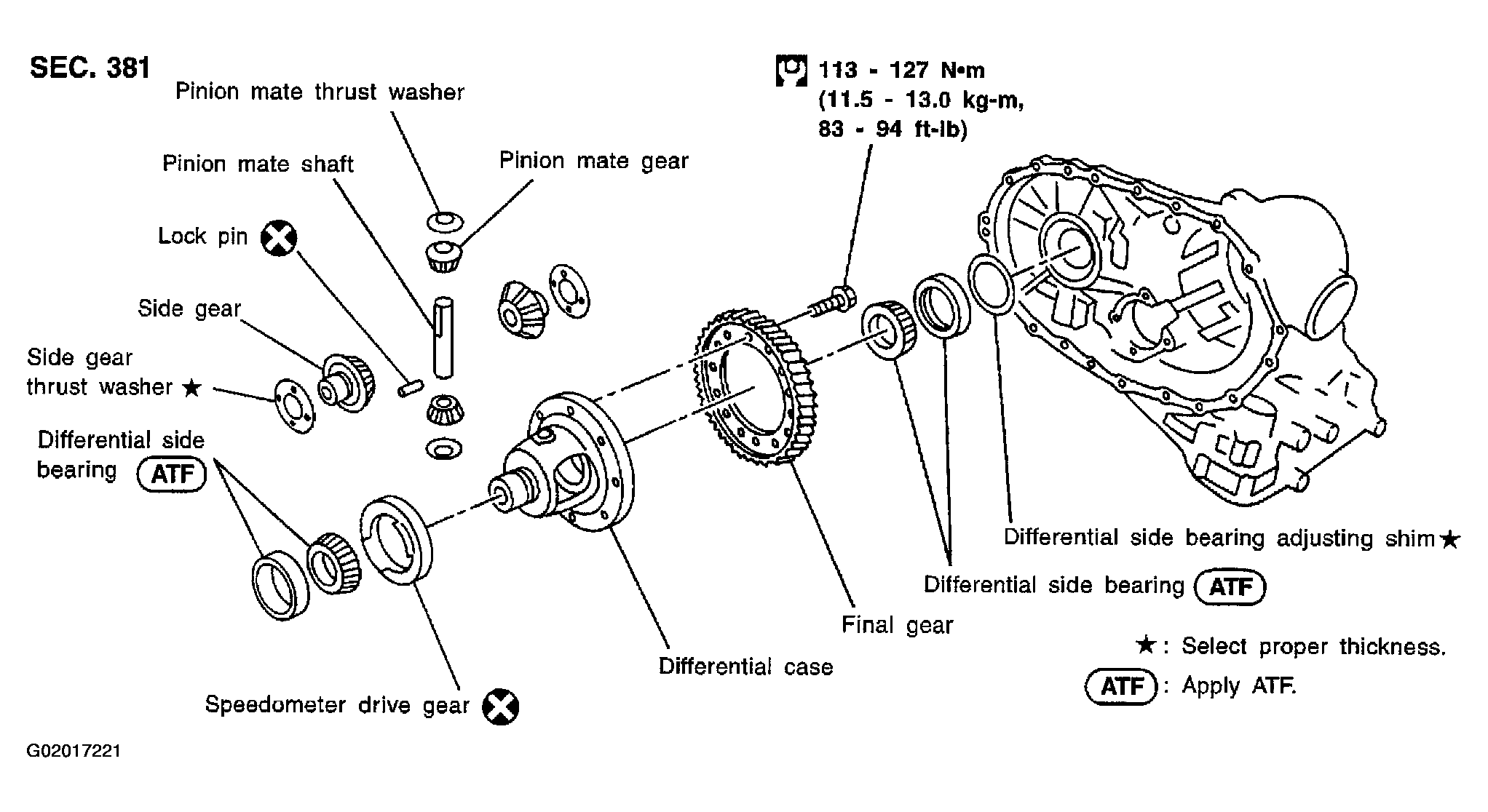

Fig 1: Exploded View Of Final Drive Assembly Components And Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
