Home › Nissan-Datsun › 2002 › Sentra SE-R, Automatic › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle Re4F04B › Repair For Component Parts › High Clutch › Components

High Clutch: Components

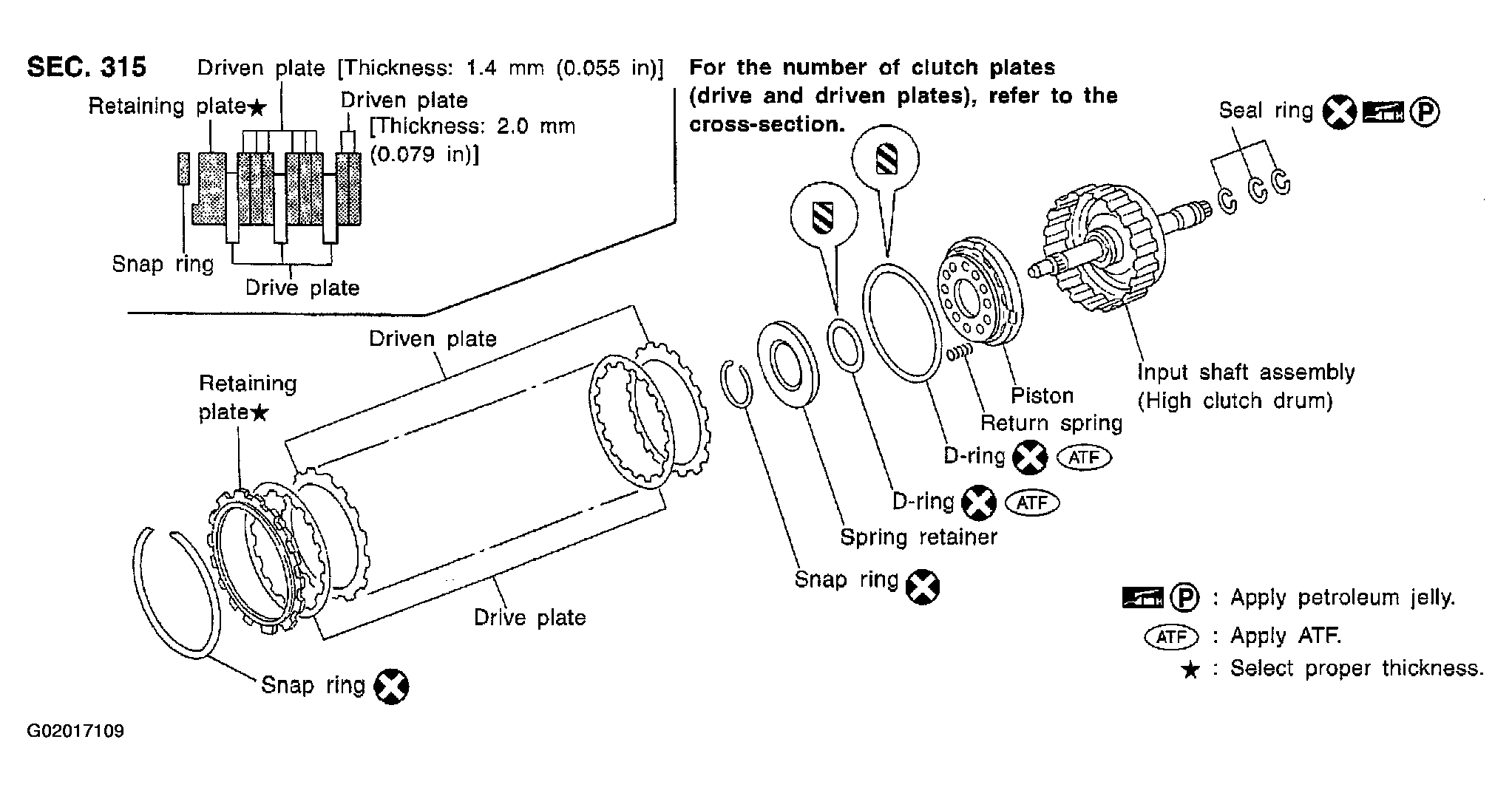

Fig 1: Exploded View Of High Clutch Components
G02017109Courtesy of NISSAN MOTOR CO., U.S.A.
