Oil Pump: Components

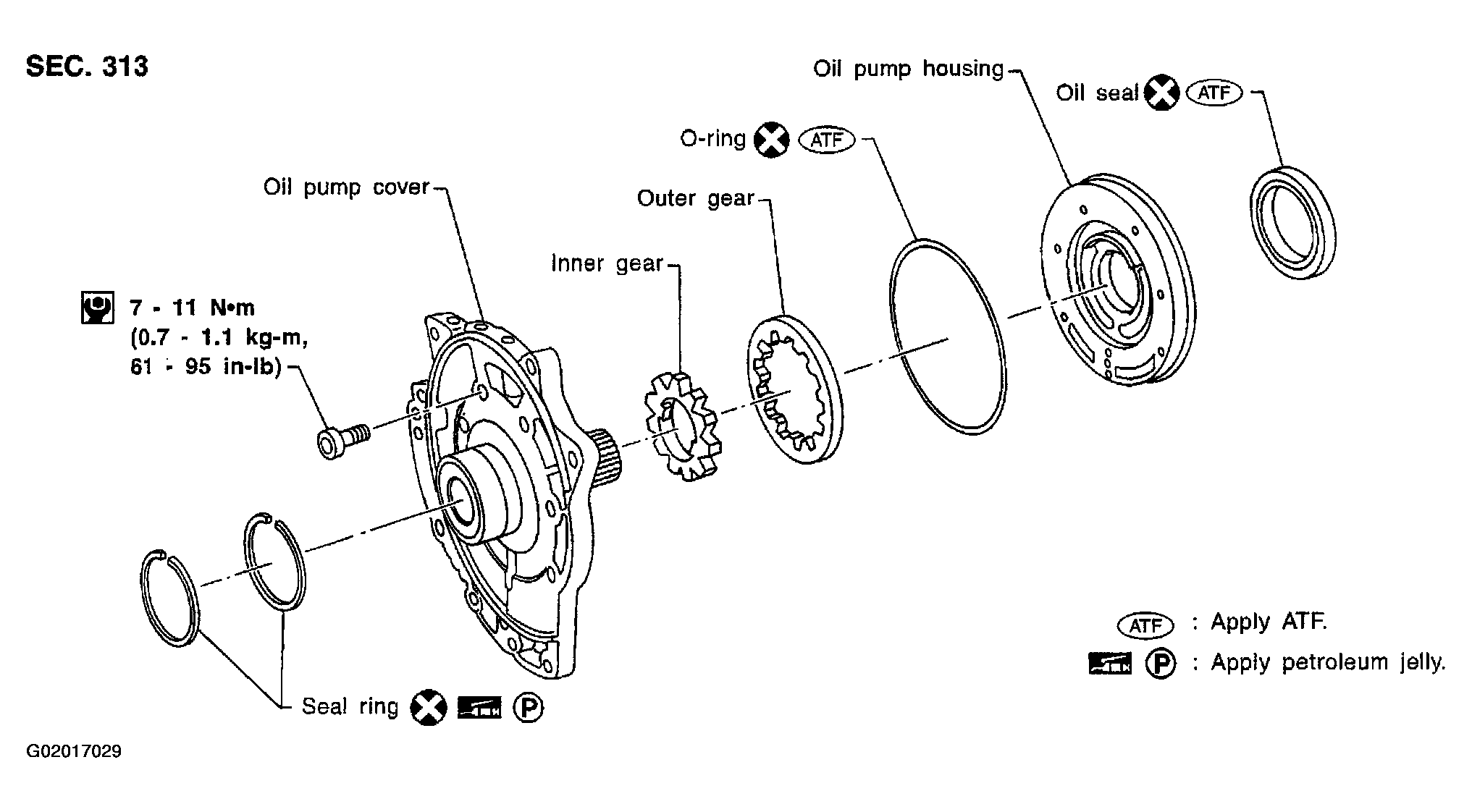

Fig 1: Exploded View Of Oil Pump Components And Torque Specifications
G02017029Courtesy of NISSAN MOTOR CO., U.S.A.
