Oil Pump: Disassembly

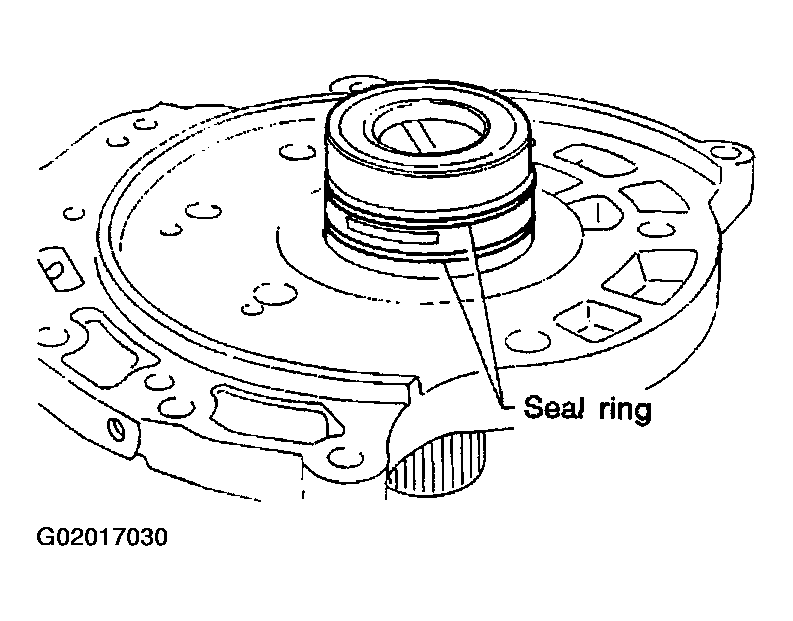

  1. Remove seal rings.
    Fig 1: Removing Oil Pump Seal Rings
    G02017030Courtesy of NISSAN MOTOR CO., U.S.A.

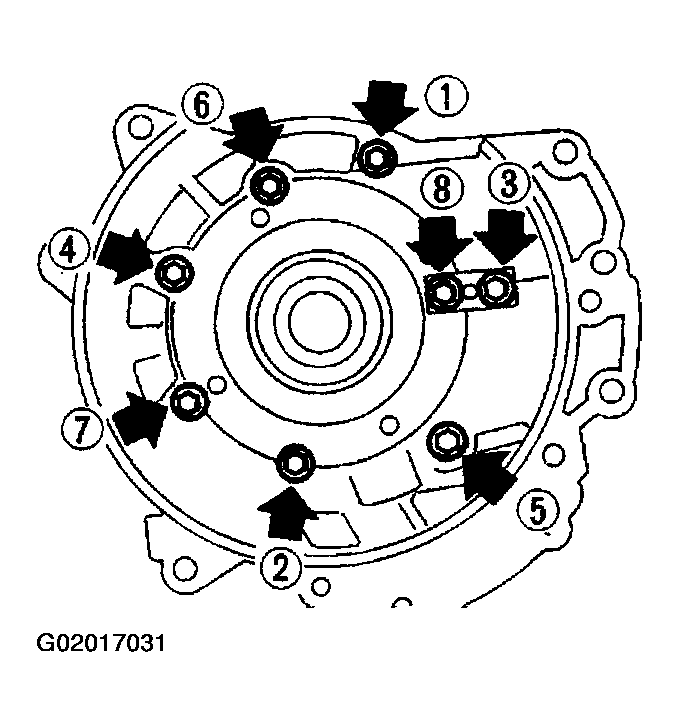

  2. Loosen bolts in a crisscross pattern and remove oil pump cover.
    Fig 2: Loosening Oil Pump Bolts In Sequence
    G02017031Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove inner and outer gear from oil pump housing.
    Fig 3: Removing Inner And Outer Gear From Oil Pump Housing
    G02017032Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove O-ring from oil pump housing.
    Fig 4: Removing O-Ring From Oil Pump Housing
    G02017033Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove oil pump housing oil seal.
    Fig 5: Removing Oil Pump Housing Oil Seal
    G02017034Courtesy of NISSAN MOTOR CO., U.S.A.
